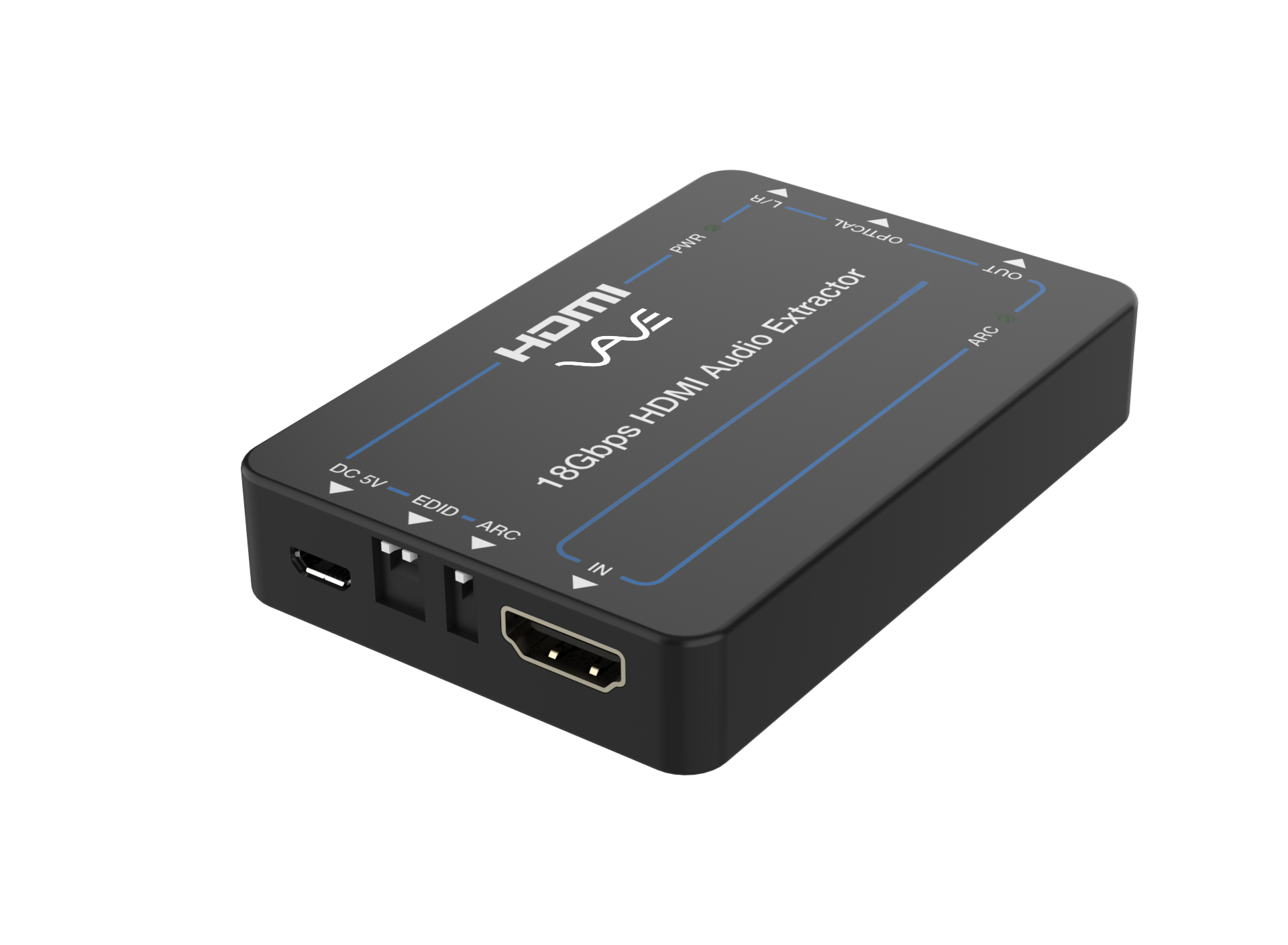

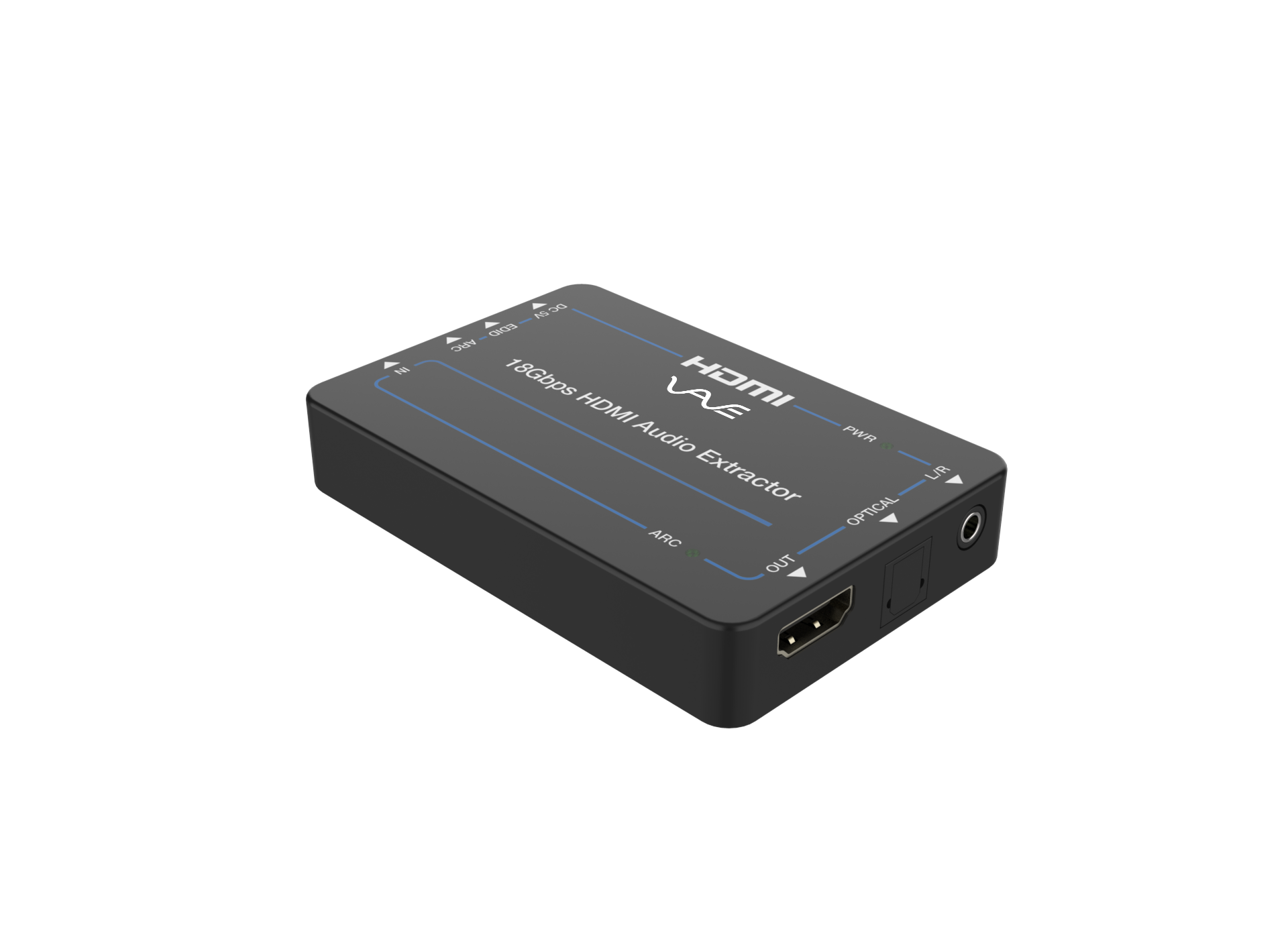

HDMI-DEA-4K - VAVE 18 Gbps HDMI Audio De-embedder /w ARC
รายละเอียดสินค้า

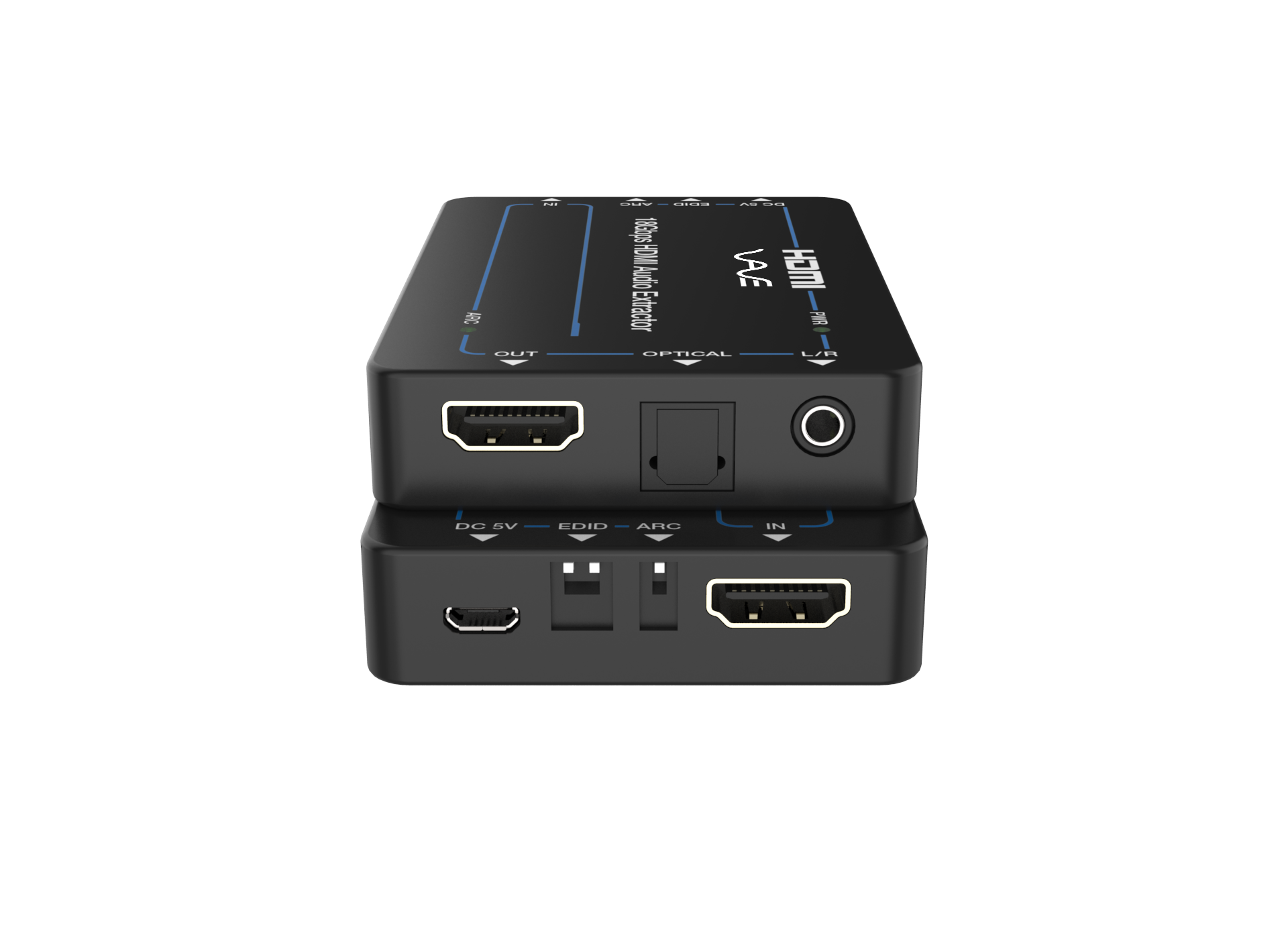

HDMI-DEA-4K - VAVE 18 Gbps HDMI Audio De-embedder /w ARC This 18 Gpbs HDMI Audio Extractor can extract audio signals from the HDMI source to output to A/V receivers via the Optical port and L/R analog audio port. The device also has a built-in HDMI output port which can connect to an ARC-compatible display and return the received audio to the amplifier or speaker via the optical port when the ARC is enabled. The input and output video resolution can reach up to 4K×2K@60Hz (YUV 4:4:4). The product supports smart EDID management, and both EDID and ARC functions can be controlled via DIP switches on the front panel.
HDMI-DEA-4K - VAVE 18 Gbps HDMI Audio De-embedder /w ARC
This 18 Gpbs HDMI Audio Extractor can extract audio signals from the HDMI source to output to A/V receivers via the Optical port and L/R analog audio port. The device also has a built-in HDMI output port which can connect to an ARC-compatible display and return the received audio to the amplifier or speaker via the optical port when the ARC is enabled. The input and output video resolution can reach up to 4K×2K@60Hz (YUV 4:4:4). The product supports smart EDID management, and both EDID and ARC functions can be controlled via DIP switches on the front panel.
Feature :
- HDMI 2.0b, HDCP 2.2 and DVI 1.0 compliant
- Support 18 Gbps video bandwidth
- Video resolution up to 4K2K@60Hz (YUV 4:4:4)
- Support extracting audio from HDMI source device to multi-channel optical fiber (SPDIF) and L/R analog audio output
- Support ARC function. when ARC is enabled, the audio will be returned to the A/V receiver via the optical port
- Supported optical audio formats: LPCM 2CH, Dolby Digital 2/5.1CH, and DTS 2/5.1CH
- Support HDMI high bit rate (HBR) audio pass through
- Audio sampling rate up to 192KHz
- Support HDR, HDR10, HDR10+, Dolby Vision and HLG
- When ARC is enabled, CEC pass through is supported
- Compact in size, easy to install
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18 Gbps |
| Video Resolution | Up to 4K2K@60Hz 4:4:4 |
| Color Space | RGB, YCbCr 4:4:4/4:2:2 |
| Color Depth | 8/10/12 bit（1080P） |
| 8/10/12 bit（4K@24/30Hz） | |
| 8 bit（4K@60Hz） | |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| HDMI Audio Formats | LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Connections | |
| Input | 1x HDMI IN [Type A, 19-pin female] |
| Output | 1x HDMI OUT [Type A, 19-pin female] |
| 1x OPTICAL OUT [S/PDIF] | |
| 1x L/R OUT [3.5mm, Stereo Mini-jack] | |
| Mechanical | |
| Housing | Plastic Enclosure |
| Color | Black |
| Dimensions | 90mm[W] x 60mm[D] x 16mm[H] |
| Weight | 48g |
| Power Supply | DC 5V / 1A |
| Power Consumption | 2W (Max) |
| Operation Temperature | 32°F – 104°F / 0°C – 40°C |
| Storage temperature | -4°F – 140°F / -20°C – 60°C |
| Relative Humidity | 20 – 90% RH (no condensation) |
