HDMI-UC-4K - VAVE HDMI to USB-C Converter

HDMI-UC-4K - VAVE HDMI to USB-C Converter
HDMI-UC-4K - VAVE HDMI to USB-C ConverterHDMI-UC-4K - VAVE HDMI to USB-C ConverterHDMI-UC-4K - VAVE HDMI to USB-C Converter
รหัสสินค้า SKU-02379
หมวดหมู่ VAVE
ราคา 2,500.00 บาท
VAT7% สอบถามเพิ่ม
สถานะสินค้า Pre-Order
ลงสินค้า 18 ม.ค. 2568
อัพเดทล่าสุด 11 พ.ย. 2568
คงเหลือ ไม่จำกัด
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
Tags : HDMI, 4K60, CAP, HDMI-CAP-4K, Converter, HDMI to USB-C Converter

รายละเอียดสินค้า

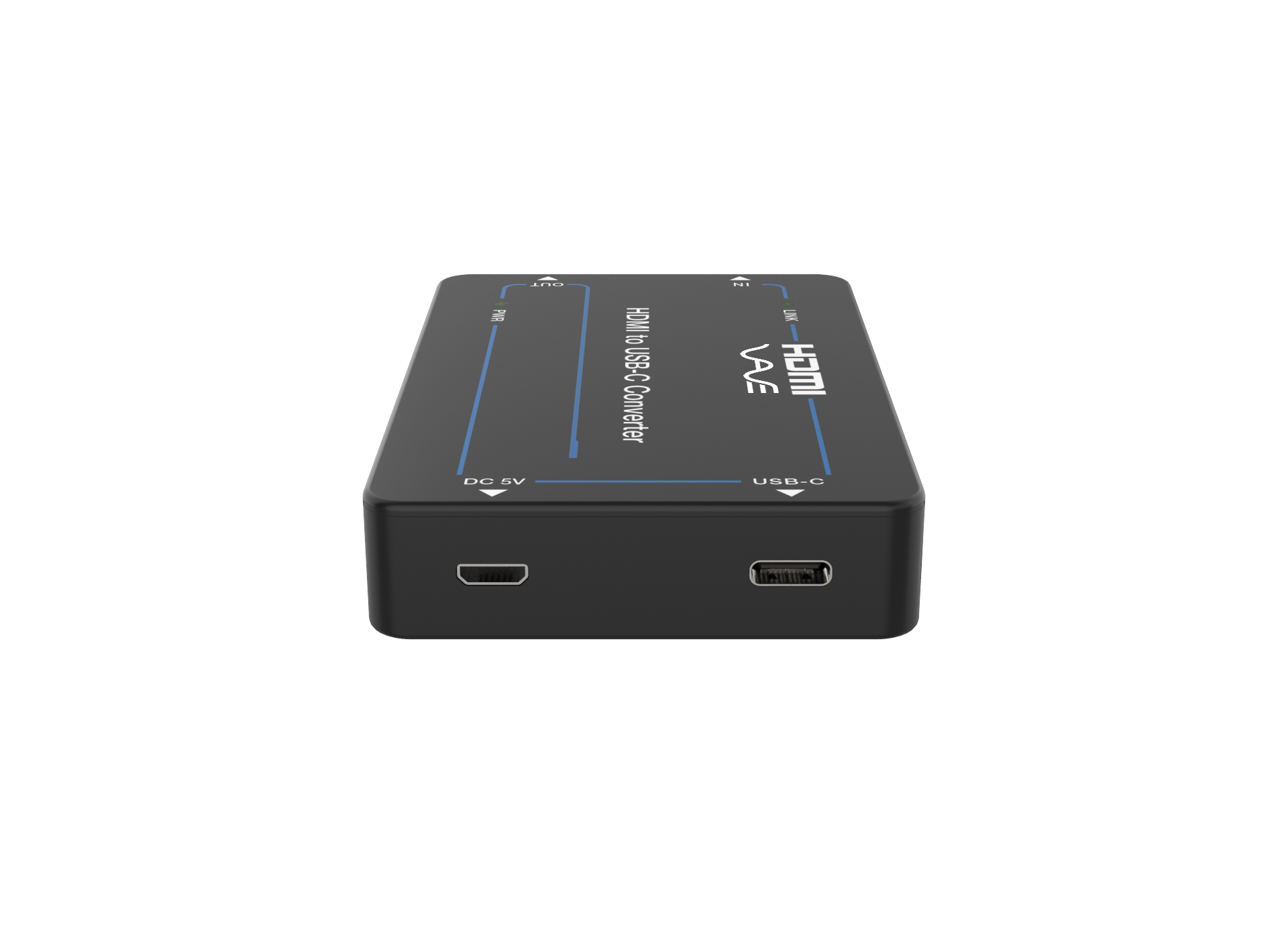

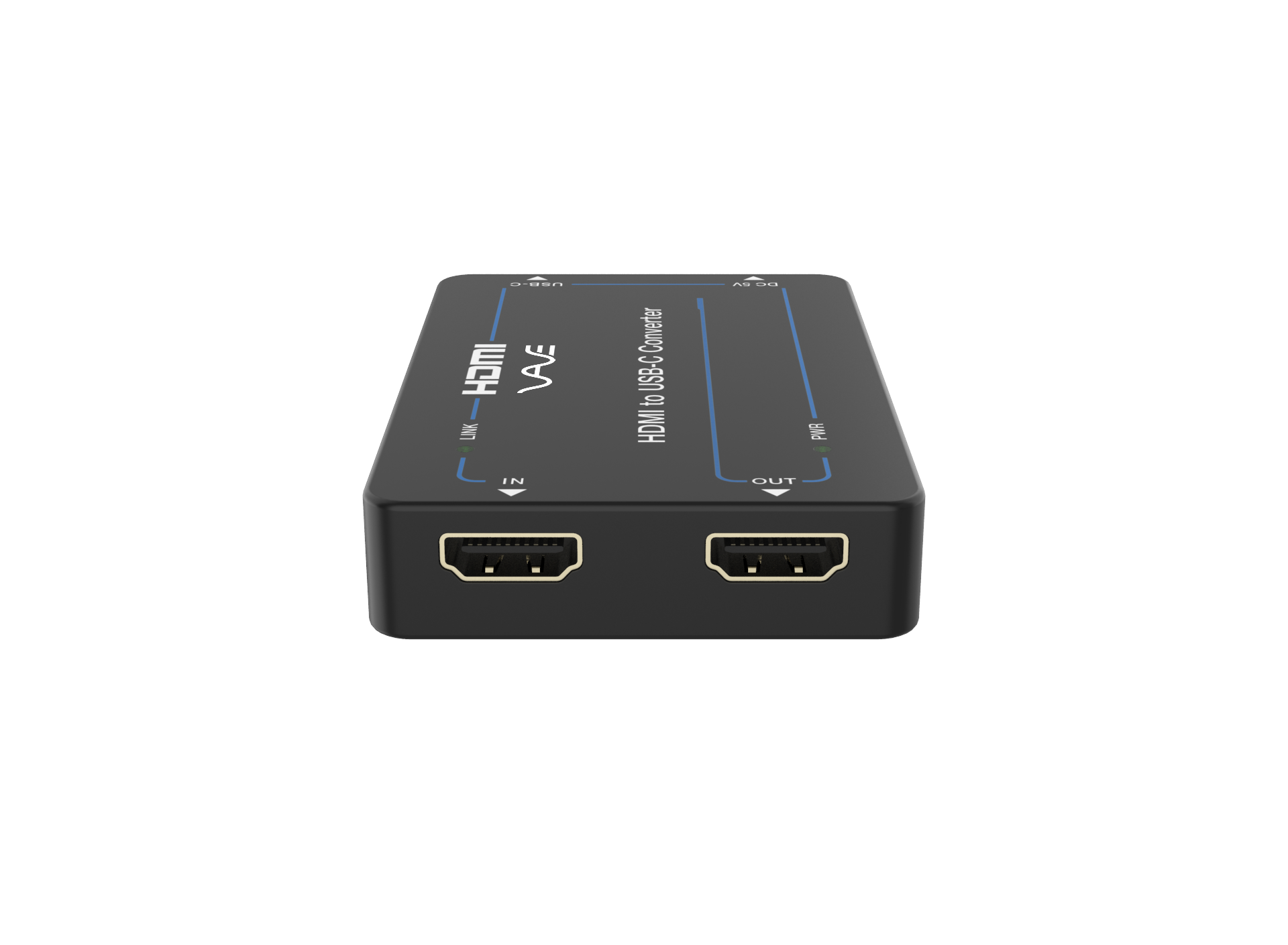

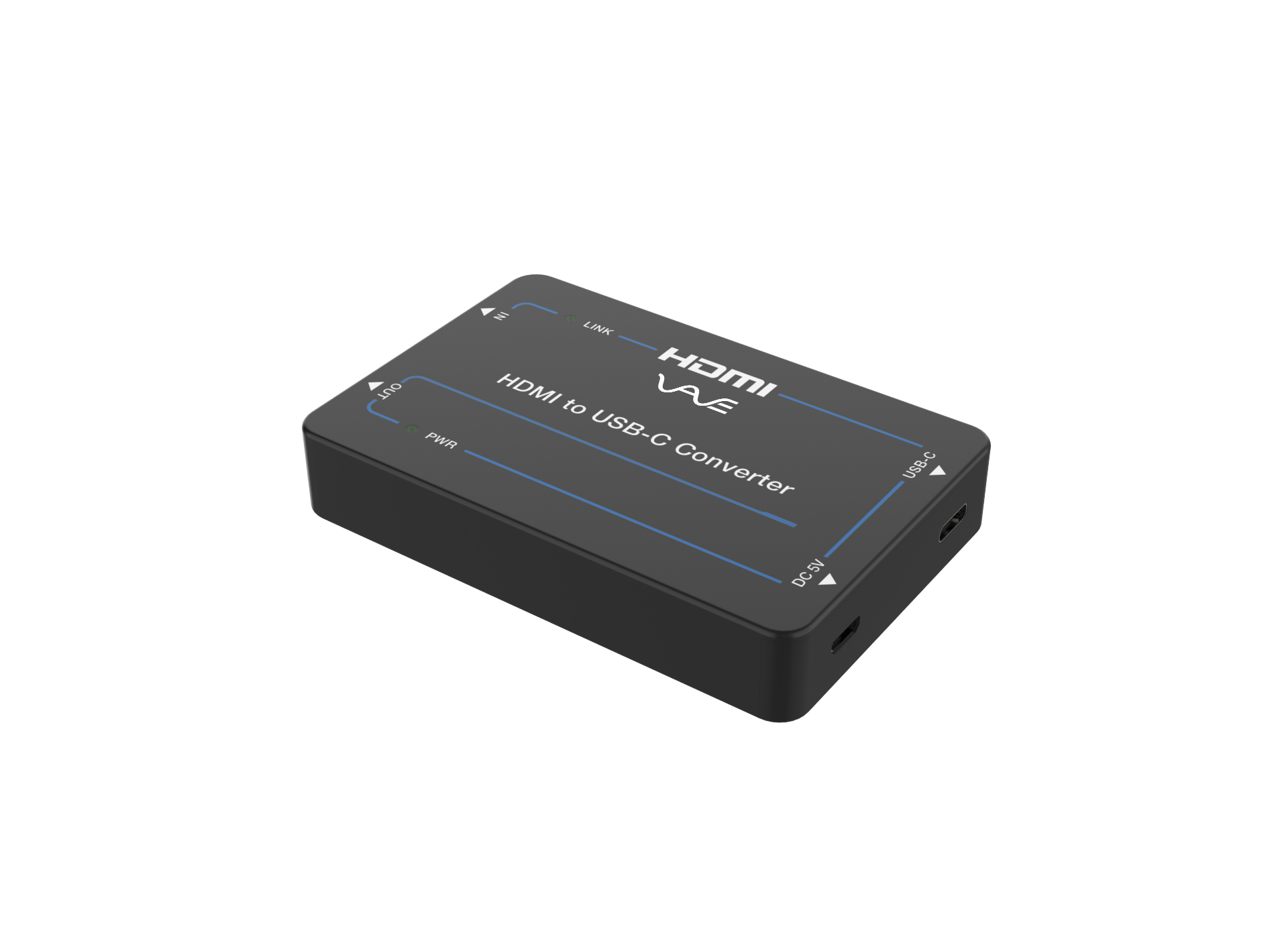

HDMI-UC-4K - VAVE HDMI to USB-C Converter This HDMI to USB-C Converter has 1 HDMI INPUT, 1 HDMI LOOP OUT and 1 USB-C OUTPUT, which can convert HDMI signal to USB-C signal with video resolution up to 4K2K@60Hz 4:4:4. It can work normally without micro USB power supply if the connected USB-C display is powered on. This converter can be wildly used in video conference, multi-media broadcasting and other related occasions.

HDMI-UC-4K - VAVE HDMI to USB-C Converter



This HDMI to USB-C Converter has 1 HDMI INPUT, 1 HDMI LOOP OUT and 1 USB-C OUTPUT, which can convert HDMI signal to USB-C signal with video resolution up to 4K2K@60Hz 4:4:4. It can work normally without micro USB power supply if the connected USB-C display is powered on. This converter can be wildly used in video conference, multi-media broadcasting and other related occasions.

Feature :



  • HDMI 2.0b, HDCP 2.2, and DVI 1.0 compliant
  • Support 18Gbps HDMI video bandwidth
  • Video resolution up to 4K@60Hz 4:4:4
  • Output supports DP1.2
  • Up to 7.1CH audio pass-through, supporting PCM, Dolby TrueHD, DTS-HD Master Audio

Specifications

Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2
Video Bandwidth 594MHz/18 Gbps
Video Resolution HDMI input: Up to 4K@60Hz 4:4:4
HDMI Loop out: 480i ~1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz
USB-C output: 480p60Hz, 576p50Hz~1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz
Color Space RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
Color Depth 8/10/12-bit
Audio Format Up to 7.1CH audio pass-through, supporting

PCM, Dolby TrueHD, dts-HD Master Audio
Connections
Input 1×HDMI IN [Type A, 19-pin female]
Output 1×HDMI OUT [Type A, 19-pin female]
1×USB-C [24-pin female]
Mechanical
Housing Plastic Enclosure
Color Black
Dimensions 90mm[W] × 60mm[D] × 16mm[H]
Weight 49g
Power Supply USB 5V / 1A
Power Consumption 3.2W (Max)
Operation Temperature 32 – 104°F / 0 – 40°C
Storage temperature -4 – 140°F / -20 – 60°C
Relative Humidity 20 – 90% RH (no condensation)
