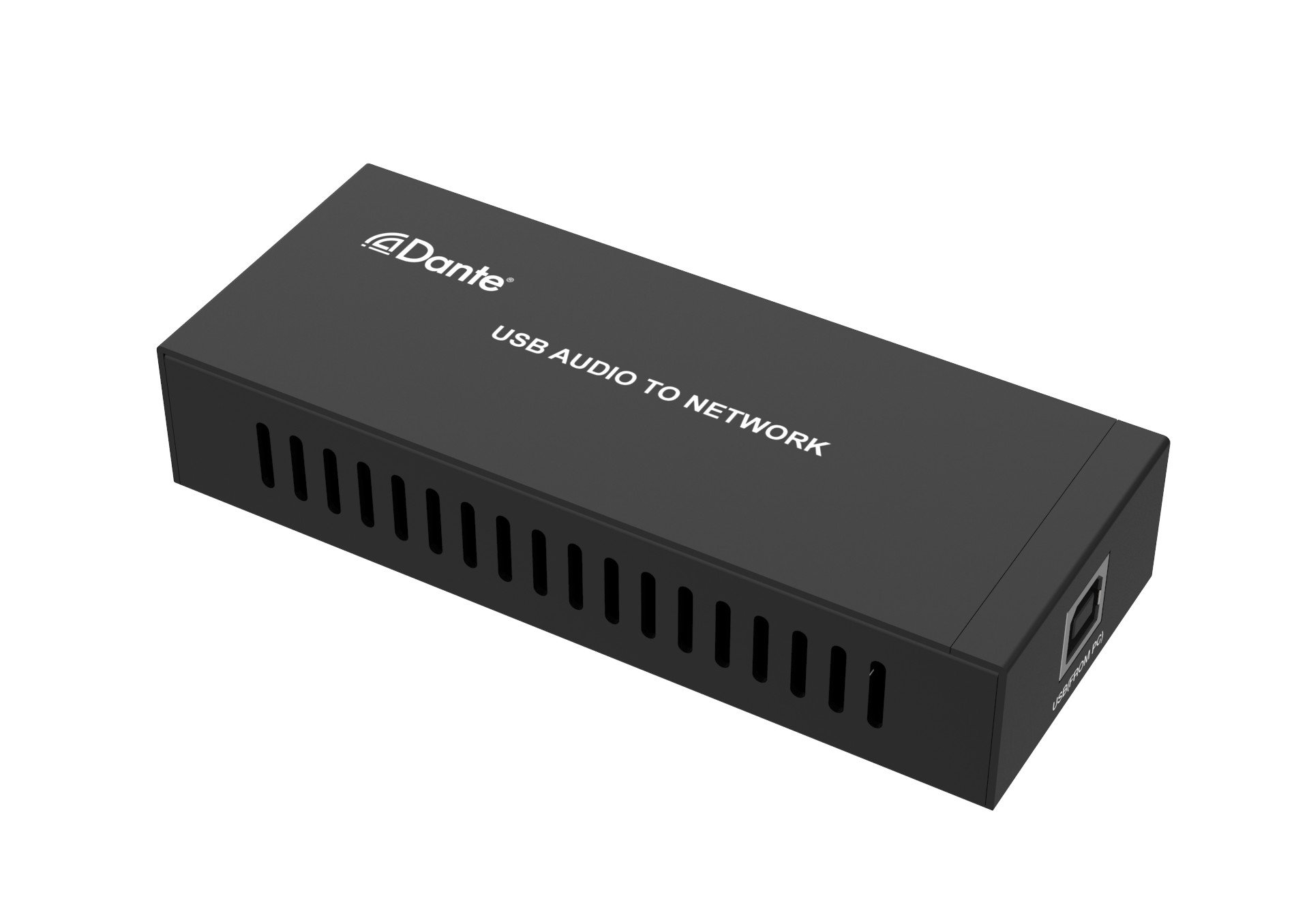

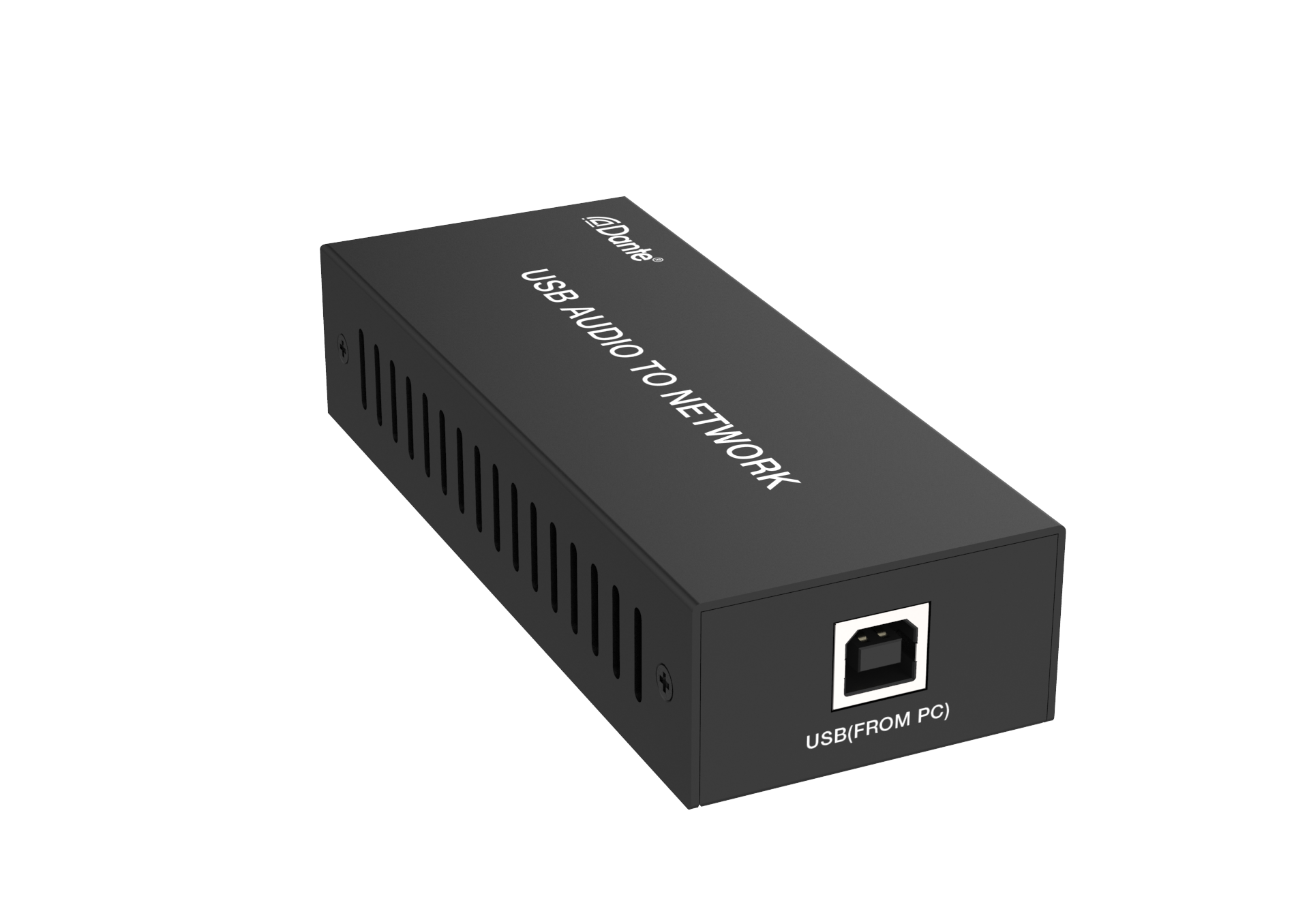

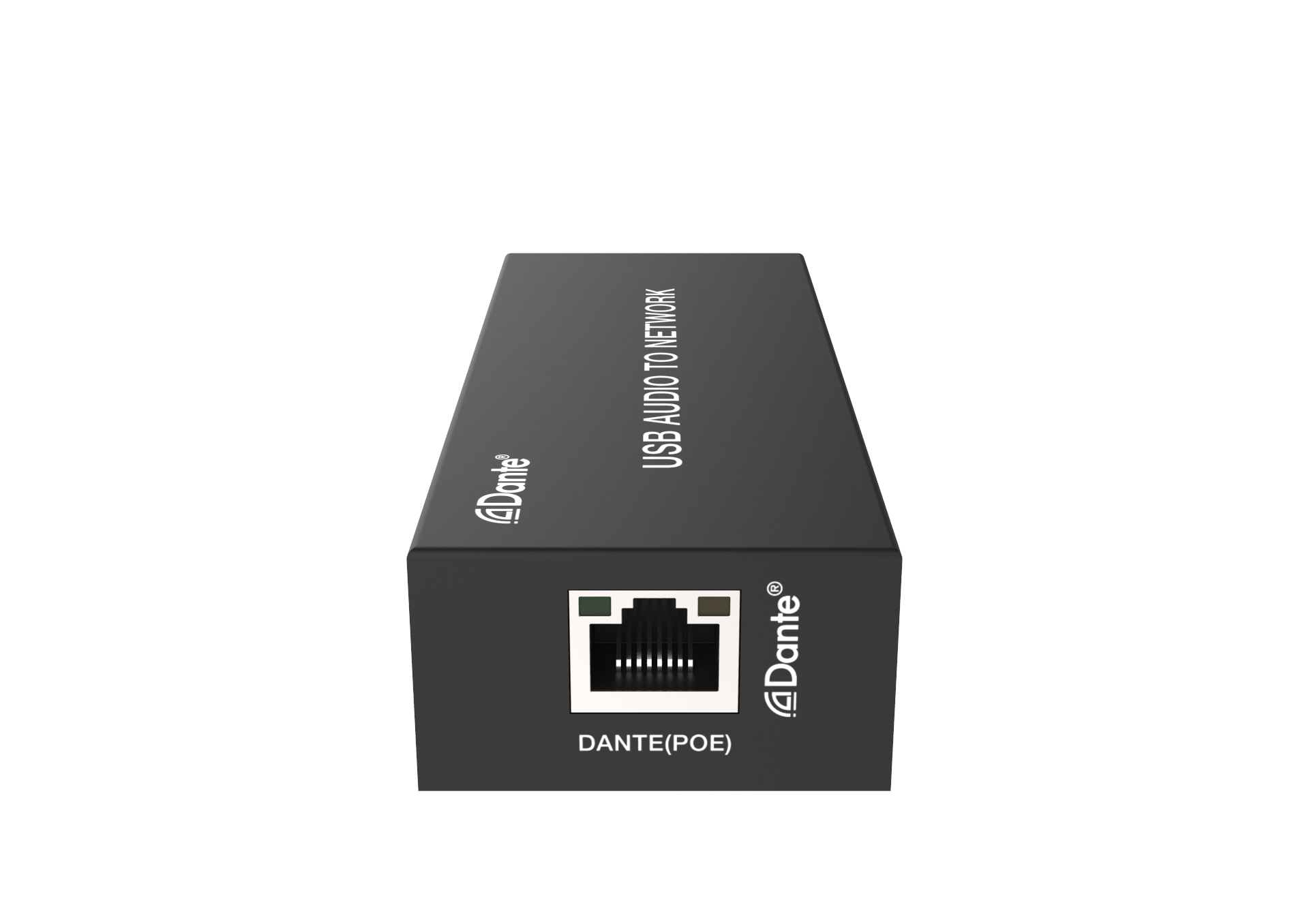

AVIP-USB-DAN - VAVE Dante 2CH USB Audio Encoder with POE This Dante 2CH USB Audio Encoder/Decoder serves as a Dante sound card adapter utilizing the Dante Ultimo solution. It facilitates USB audio transmission. Featuring a built-in USB sound card chip, it transmits audio signals over a network using Dante technology. It also supports USB power supply and POE functionality. The product is compact and portable, with a plug-and-play design, making it ideal for recording studios, art festivals, concerts, and various other applications.

AVIP-USB-DAN - VAVE Dante 2CH USB Audio Encoder with POE



This Dante 2CH USB Audio Encoder/Decoder serves as a Dante sound card adapter utilizing the Dante Ultimo solution. It facilitates USB audio transmission. Featuring a built-in USB sound card chip, it transmits audio signals over a network using Dante technology. It also supports USB power supply and POE functionality. The product is compact and portable, with a plug-and-play design, making it ideal for recording studios, art festivals, concerts, and various other applications.

Feature :

  • Compliant with USB 2.0 Full Speed Operation
  • Compliant with USB Audio Device Class Specification V1.0
  • Analog sound card, supporting MIC input and SPK Output
  • Audio sampling rate supports 44.1kHz, 48kHz and 96kHz (24bit)
  • Dante solution supports AES67 RTP audio transmission
  • Support USB 5V power supply and POE function (IEEE802.3af Class 0)

Specifications

Technical
Video Network Bandwidth 100M
Audio Formats PCM 2.0 44.1kHz/48kHz/96kHz up to 24bit
Transmission Distance 100m (CAT6/6A)
Control Method Dante Controller
Connection
Input and output 1x USB-B
1x DANTE [RJ45 connector, POE]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions 120mm[W] x 47mm[D] x 26mm[H]
Weight 188g
Power Supply USB input: 5V-500MA
POE input: IEEE802.3af Class 0
Power Consumption 1W
Operation Temperature 32 – 104oF / 0 – 40oC
Storage temperature -4 – 140oF / -20 – 60oC
Relative Humidity 20 – 90% RH (no condensation)
