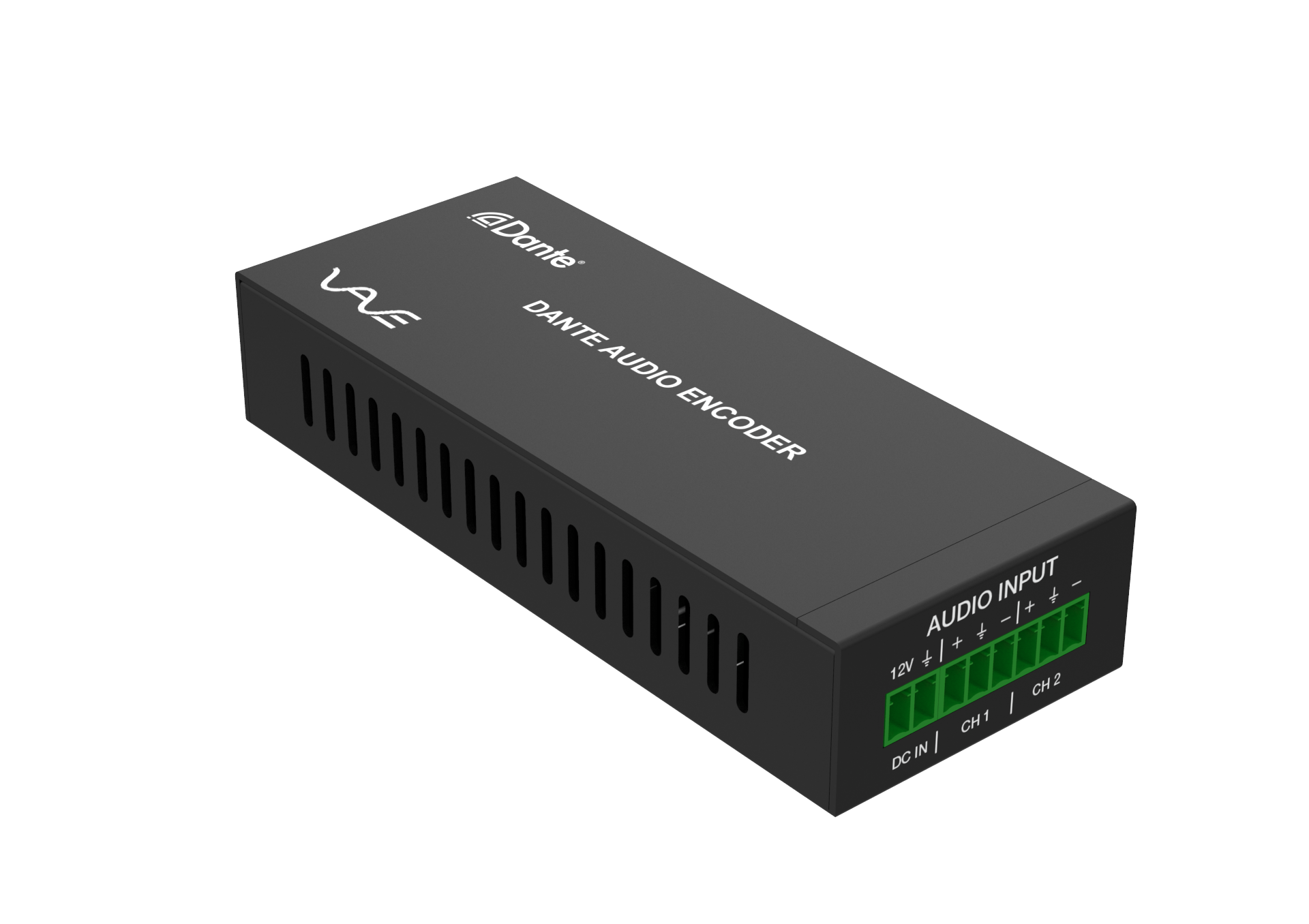

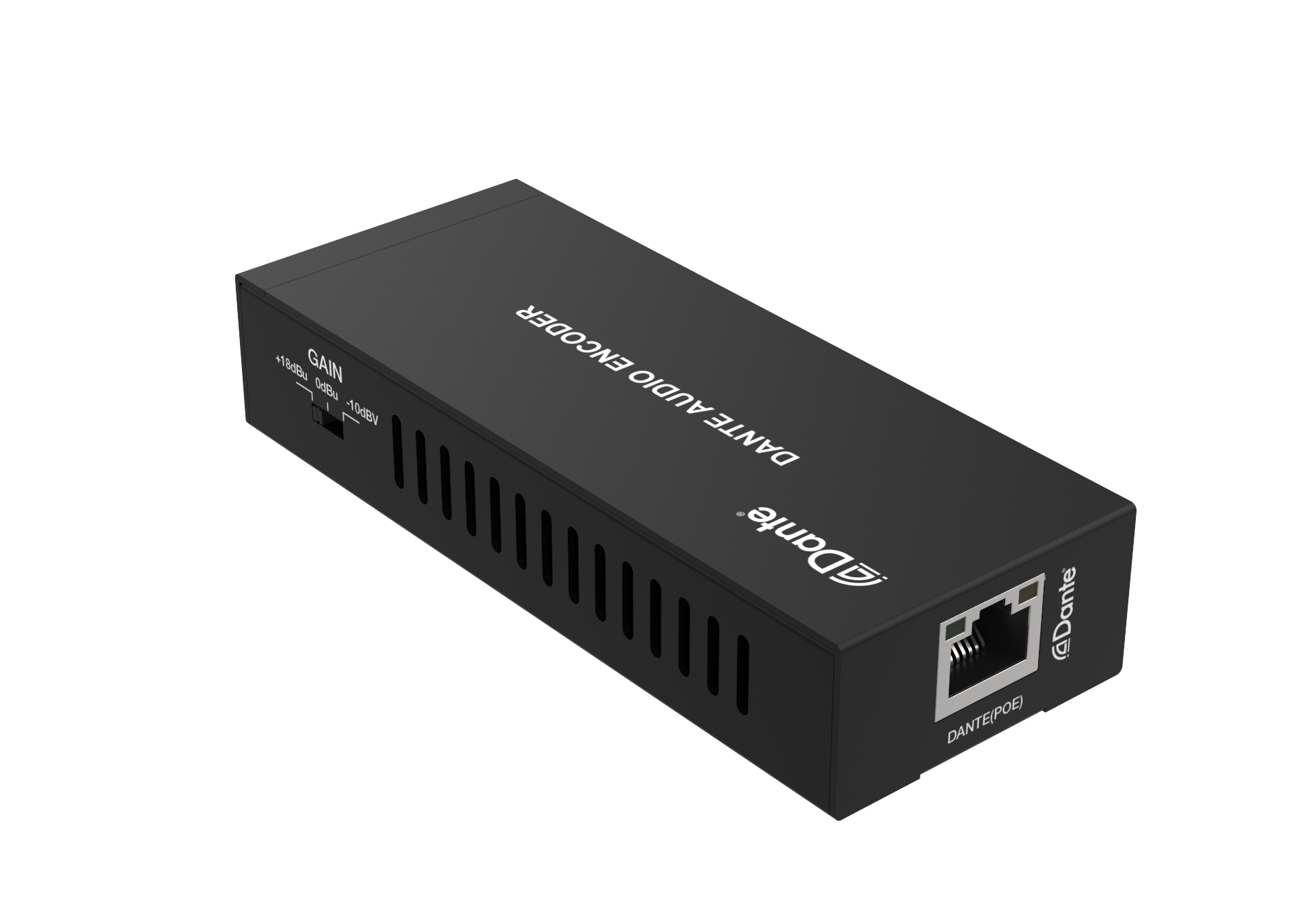

AVIP-EN-DAN - VAVE Dante 2CH Analog Audio Encoder with POE

AVIP-EN-DAN - VAVE Dante 2CH Analog Audio Encoder with POE
AVIP-EN-DAN - VAVE Dante 2CH Analog Audio Encoder with POEAVIP-EN-DAN - VAVE Dante 2CH Analog Audio Encoder with POE
รหัสสินค้า SKU-02382
หมวดหมู่ VAVE
ราคา 0.00 บาท
VAT7% สอบถามเพิ่ม
สถานะสินค้า Pre-Order
ลงสินค้า 18 ม.ค. 2568
อัพเดทล่าสุด 18 ม.ค. 2568
คงเหลือ ไม่จำกัด
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
Tags : HDMI, 4K60, CAP, encoder, USB Audio, Audio Processor

รายละเอียดสินค้า

AVIP-EN-DAN - VAVE Dante 2CH Analog Audio Encoder with POE This Dante 2CH Analog Audio Encoder functions as an audio transmitter utilizing the Dante Ultimo solution. It accommodates both balanced and unbalanced audio inputs and offers a 3-level gain adjustment. The device encodes audio signals before transmitting them to the receiving end via a Dante network. It also supports Power over Ethernet (POE) functionality.

AVIP-EN-DAN - VAVE Dante 2CH Analog Audio Encoder with POE



This Dante 2CH Analog Audio Encoder functions as an audio transmitter utilizing the Dante Ultimo solution. It accommodates both balanced and unbalanced audio inputs and offers a 3-level gain adjustment. The device encodes audio signals before transmitting them to the receiving end via a Dante network. It also supports Power over Ethernet (POE) functionality.

Feature :

  • Analog audio input supports balanced/unbalanced audio input (unbalanced access to “+”and “GND”)
  • Audio sampling rate supports 44.1kHz, 48kHz and 96kHz (24bit)
  • Dante solution supports AES67 RTP audio transmission
  • Audio input supports 3-level gain adjustment：+18dBu, 0dBu (default) and -10dBV
  • Support DC 12V power supply and POE function (IEEE802.3af Class 0)

Specifications

Technical
Video Network Bandwidth 100M
Audio Formats PCM 2.0 44.1kHz/48kHz/96kHz up to 24bit
Transmission Distance 100m (CAT6/6A)
Control Method Dante Controller
Connection
Input 1x PWR [2-pin phoenix, 3.81mm]
1x AUD [6-pin phoenix, 3.81mm]
Output 1x DANTE [RJ45 connector, POE]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions 120mm[W] x 47mm[D] x 26mm[H]
Weight 186g
Power Supply DC input: 12V
POE input: IEEE802.3af Class 0
Power Consumption 1.2W
Operation Temperature 32 – 104oF / 0 – 40oC
Storage temperature -4 – 140oF / -20 – 60oC
Relative Humidity 20 – 90% RH (no condensation)
