AVIP-AM-150-DAN - VAVE 150W Amplifier

AVIP-AM-150-DAN - VAVE 150W Amplifier
AVIP-AM-150-DAN - VAVE 150W AmplifierAVIP-AM-150-DAN - VAVE 150W AmplifierAVIP-AM-150-DAN - VAVE 150W AmplifierAVIP-AM-150-DAN - VAVE 150W Amplifier
รหัสสินค้า SKU-02385
หมวดหมู่ VAVE
ราคา 0.00 บาท
VAT7% สอบถามเพิ่ม
สถานะสินค้า Pre-Order
ลงสินค้า 18 ม.ค. 2568
อัพเดทล่าสุด 18 ม.ค. 2568
คงเหลือ ไม่จำกัด
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
Tags : HDMI, 4K60, CAP, encoder, USB Audio, Audio Processor

รายละเอียดสินค้า

AVIP-AM-150-DAN - VAVE 150W Amplifier This product is designed as a two-channel amplifier using class D amplifier technology. It can be used for powering low impedance (4Ω/8Ω) stereo systems with a maximum power of 2 x 75 Watt, while bridging to a constant voltage (100V and 70V) is possible with a maximum output power of 150 Watt. It features Dante 2CH digital inputs and outputs, and balanced or unbalanced line level analog inputs and outputs.

AVIP-AM-150-DAN - VAVE 150W Amplifier



This product is designed as a two-channel amplifier using class D amplifier technology. It can be used for powering low impedance (4Ω/8Ω) stereo systems with a maximum power of 2 x 75 Watt, while bridging to a constant voltage (100V and 70V) is possible with a maximum output power of 150 Watt. It features Dante 2CH digital inputs and outputs, and balanced or unbalanced line level analog inputs and outputs.

This amplifier can be controlled via RS-232, LAN and Web GUI. It also features built-in DSP, auto-standby and maximum durability. It is suitable for a vast range of AV installations.

Feature :

  • Dante 2CH digital audio, balanced or unbalanced line level analog inputs
  • Dante 2CH digital audio, balanced or unbalanced line level analog and AMP outputs
  • Built-in audio DSP processor
  • Switching between Lo-Z and Hi-Z can be achieved to adapt to various types of speaker installation.
    • In Lo-Z output mode, single-channel 150 Watt or two-channel 2 x 75 Watt 4Ω/8Ω can be selected
    • In Hi-Z output mode, single-channel 150 Watt with 70V/100V can be selected.
  • Independent input gain, output EQ and volume control
  • 48KHz sampling rate, 24bit independent A/D and D/A converters
  • 5-12V trigger input
  • Auto standby
  • Flexible control via RS-232, LAN and Web GUI
  • Half rack design/one rack design

Specifications

Technical
Input 1x Dante Network audio input
1x LINE balanced stereo 0dBu/10kΩ input
Output 1x Dante Network audio output
1x Stereo or constant voltage 70V/100V speaker output
1x LINE balanced stereo output
Input Sensitivity Full power@0.775V (0dBu)
Output Power DC power supply: 2x 75W@4Ω/8Ω; 1x 150W@8Ω; 1x 150W@70V/100V
Maximum Voltage Gain 27 – 30dB SE/39 – 42dB BTL
Amplifier Type Class D
Frequency Response 20Hz – 20kHz @ ±3dB
Signal to Noise Ratio 87dB, 20Hz – 10kHz
THD+N THD+N (1KHz@1W) 0.04%
Control RS-232, Web GUI
Audio Format LINE IN [Analog audio, Balanced 2CH, Max input level 2VRMS]
LINE OUT [Analog audio, Balanced 2CH, Max output level 2VRMS]
DANTE [Digital audio 2×2 in/out, PCM 2CH 44.1K-96KHz 16/24Bit]
AMP OUT [Analog audio, Balanced 2CH, Max output level 24.5VRMS]
70V/100V AMP OUT [Analog audio, Unbalanced 1CH, Max output level 70V/100VRMS]
ESD Protection Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge)

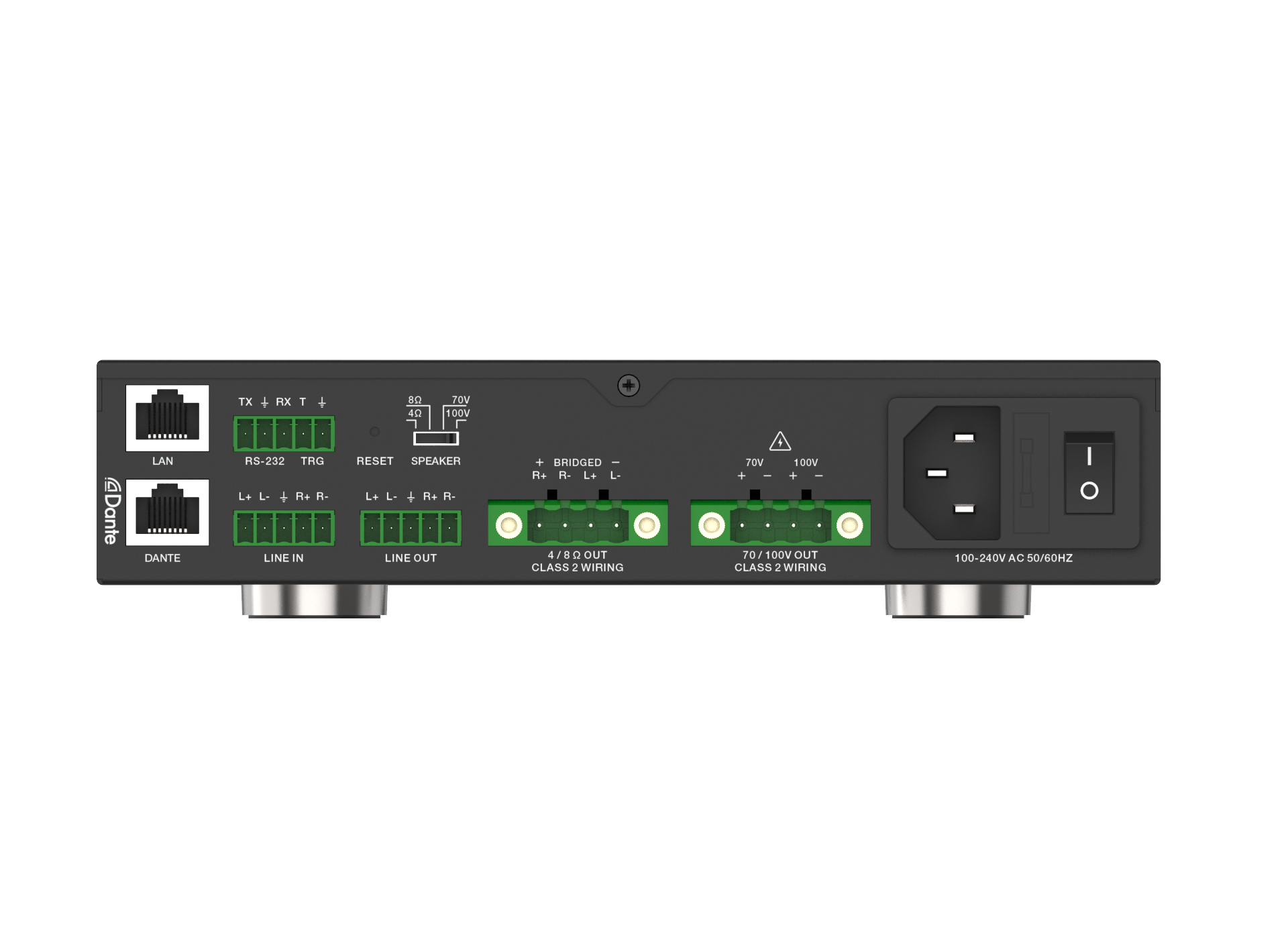

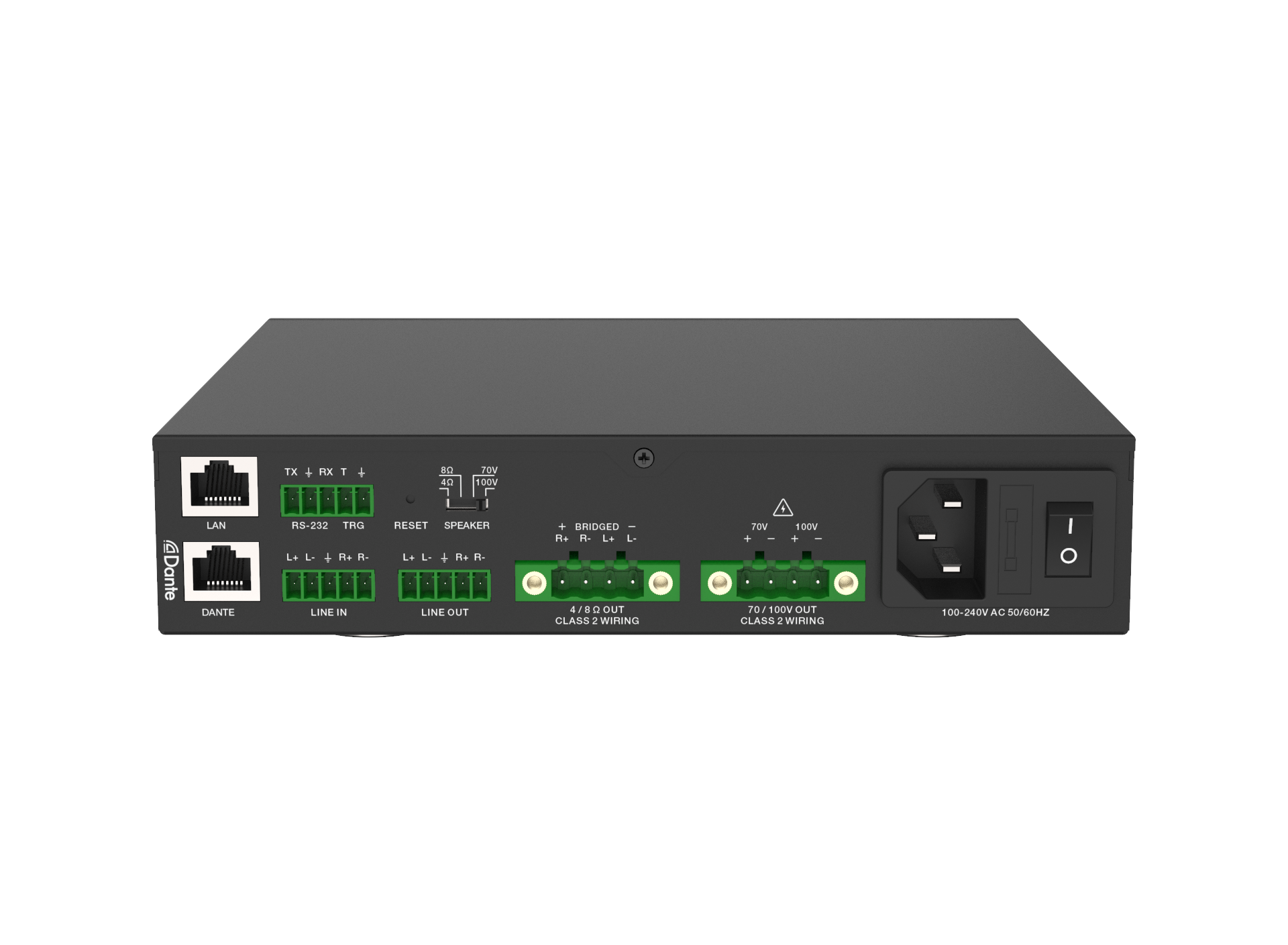

Connections
Input 1x LINE IN [5pin-3.81mm Phoenix Connector]
1x DANTE [RJ45 connector]
Output 1x LINE OUT [5pin-3.81mm Phoenix Connector]
1x 4/8Ω AMP OUT [MSTB 2.5-GF-5.08, 4-pin locking phoenix, 5.08mm]
1x 70V/100V AMP OUT [MSTB 2.5-GF-5.08, 4-pin locking phoenix, 5.08mm]
Control 1x RS-232/TRG [5pin-3.81mm phoenix connector] [TRG: 5-12V trigger input to turn on/off the amplifier]
1x LAN [RJ45 connector]
Mechanical
Housing Front panel: Aluminum; Rear case: Metal Enclosure
Color Black
Dimensions 240mm [W]×210mm [D]×44mm [H]
Weight 1.88Kg
Power Supply DC Input: AC100 – 240V 50/60Hz
Power Consumption 240W (Max)
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20%~90% RH (non-condensing)
