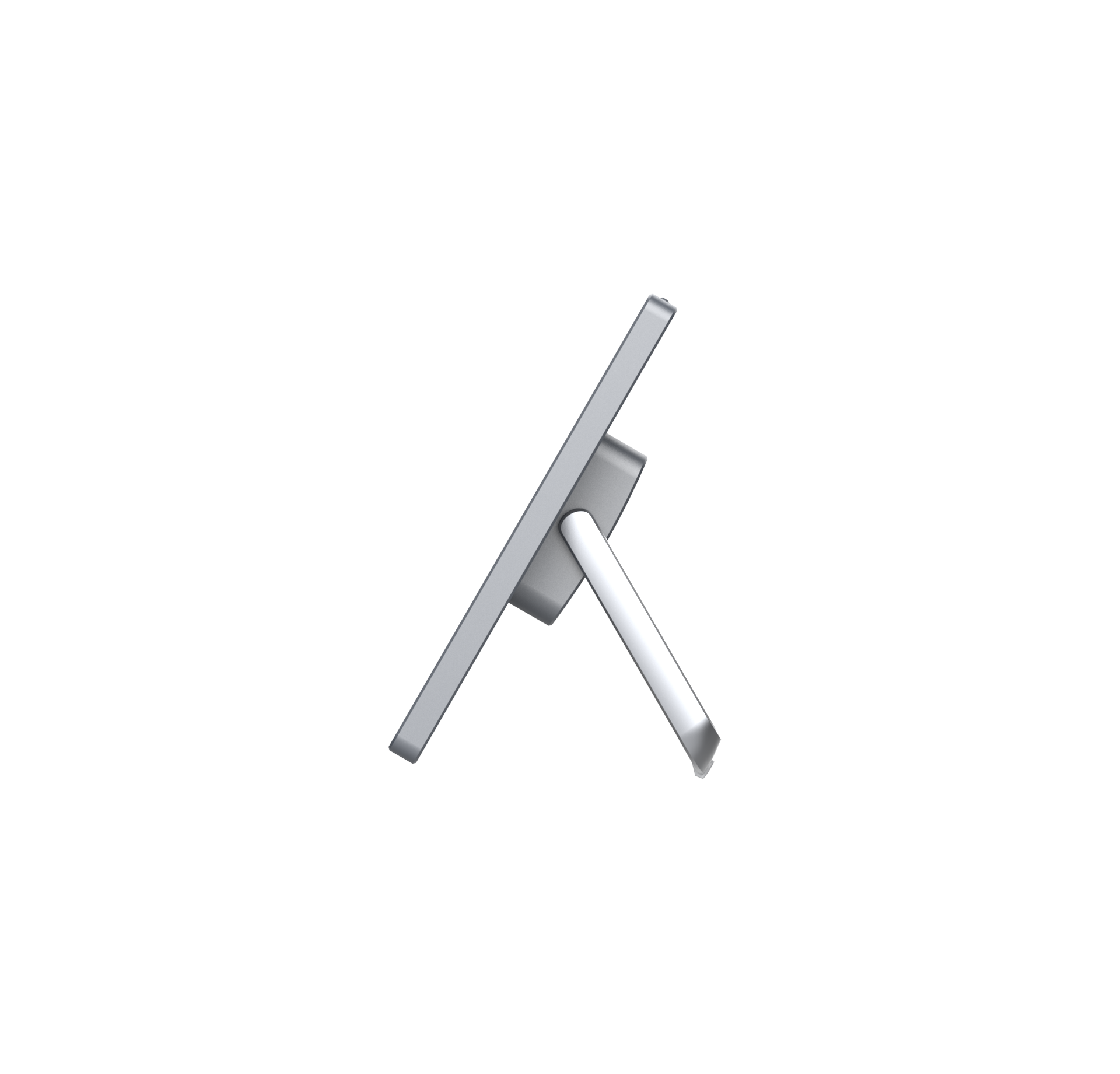

CTL-TOUCH-10-T - VAVE 10-inch Touch Panel Control on Desktop Table Top

CTL-TOUCH-10-T - VAVE 10-inch Touch Panel Control on Desktop Table Top
CTL-TOUCH-10-T - VAVE 10-inch Touch Panel Control on Desktop Table TopCTL-TOUCH-10-T - VAVE 10-inch Touch Panel Control on Desktop Table TopCTL-TOUCH-10-T - VAVE 10-inch Touch Panel Control on Desktop Table Top
รหัสสินค้า SKU-02386
หมวดหมู่ VAVE
ราคา 0.00 บาท
VAT7% สอบถามเพิ่ม
สถานะสินค้า Pre-Order
ลงสินค้า 18 ม.ค. 2568
อัพเดทล่าสุด 18 ม.ค. 2568
คงเหลือ ไม่จำกัด
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
Tags : HDMI, 4K60, CAP, encoder, USB Audio, Audio Processor

รายละเอียดสินค้า

CTL-TOUCH-10-T - VAVE 10-inch Touch Panel Control on Desktop The programmable touch screen control panel is designed to be utilized in the sectors of automated office system, multi-media room and smart home. With a programmable interactive user interface over configuration protocols, the integrated system provides intelligent networking service.Table Top

CTL-TOUCH-10-T - VAVE 10-inch Touch Panel Control on Desktop Table Top



The programmable touch screen control panel is designed to be utilized in the sectors of automated office system, multi-media room and smart home. With a programmable interactive user interface over configuration protocols, the integrated system provides intelligent networking service. The control panel is equipped with a capacitive touch screen with a resolution of 1280*800, and it supports one RS-485 serial port. It is used in a diverse range of installations and applications across industries including multi-media conference rooms, multi-functional halls, training centers, show room, broadcasting studios and industrial automation.

Feature :

  • Desktop control system
  • ARM Cortex-A53 1.8GHz CPU, Android OS
  • 10-inch 1280×800 Capacitive Touch Screen
  • 1x bidirectional RS-485
  • Control all IP based devices
  • Industry standard communication protocols
  • Internal real-time clock
  • POE power supply
  • Easy to configure (Windows programming and GUI design tools)

Specifications

Technical
CPU ARM Cortex-A53 1.8GHz
Operation System Android 9
RAM 2GB DDR4 RAM
Flash Memory 8GB EMMC Flash
Resolution 1280×800
Touch Type Capacitive Touch Screen

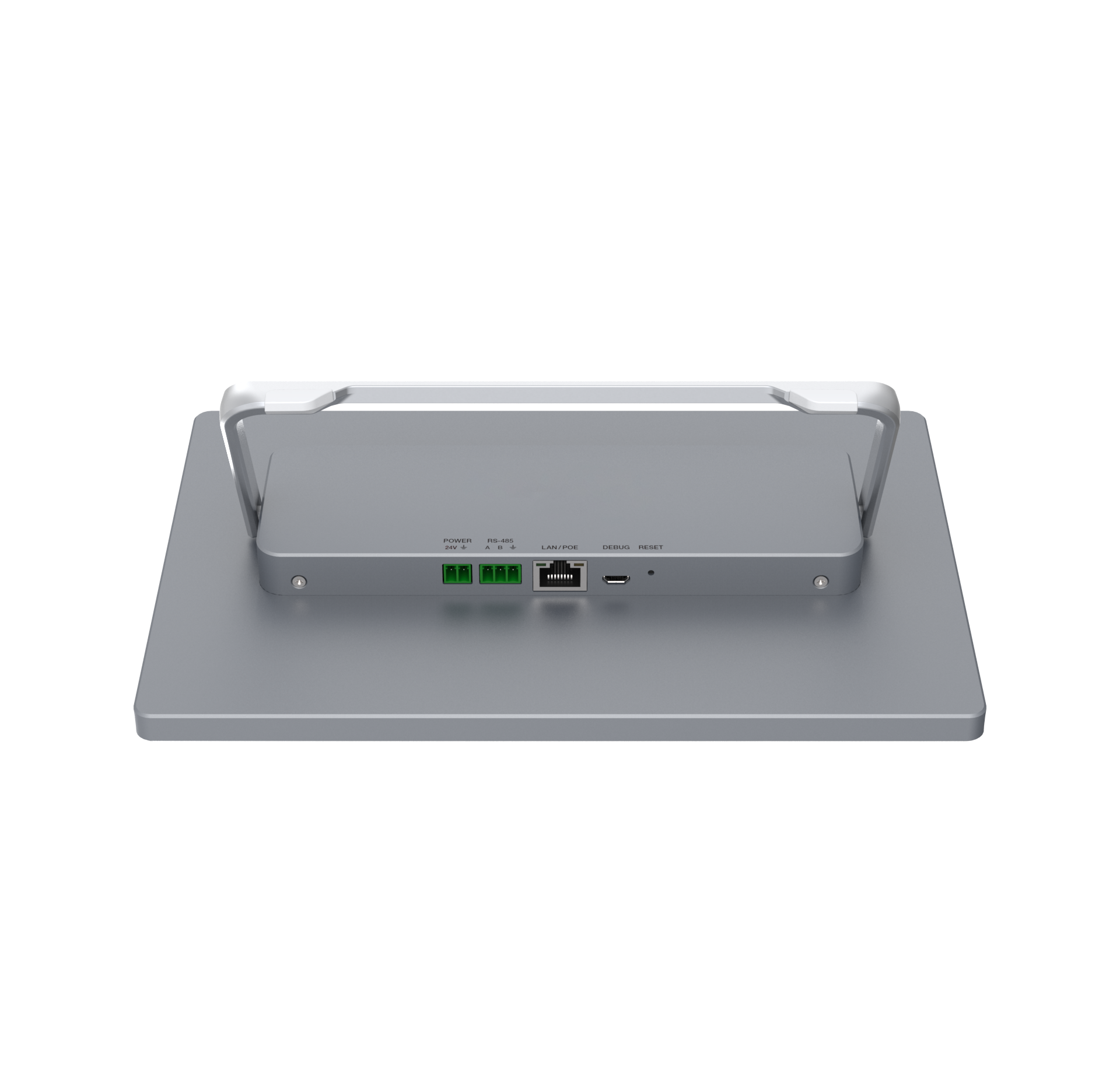

Connections
RS-485 1x 3-pin Phoenix Connectors, for RS-485 serial data communication
LAN/POE 1x standard 10M/100M/1000M Ethernet RJ45 interface, supporting POE function
POWER 1x 2-pin Phoenix Connectors, for power supply
DEBUG 1x Micro USB, system debugging port
Mechanical
Housing Front Panel — Touch Screen; Rear Case — Aluminum Alloys
Color Front Panel — Black; Rear Case — Apple Gray
Dimensions 245.4mm (L) x164mm (W)x27mm (D)
Weight 887g
Power Supply 24V DC/1A or POE
Power Consumption (Max) 6W
Operation Temperature 32 – 104°F / 0 – 40°C
Relative Humidity 10~90% RH (non-condensing)
