CTL-TOUCH-4-W - VAVE 4-inch Touch Panel Control in Wall

CTL-TOUCH-4-W - VAVE 4-inch Touch Panel Control in Wall

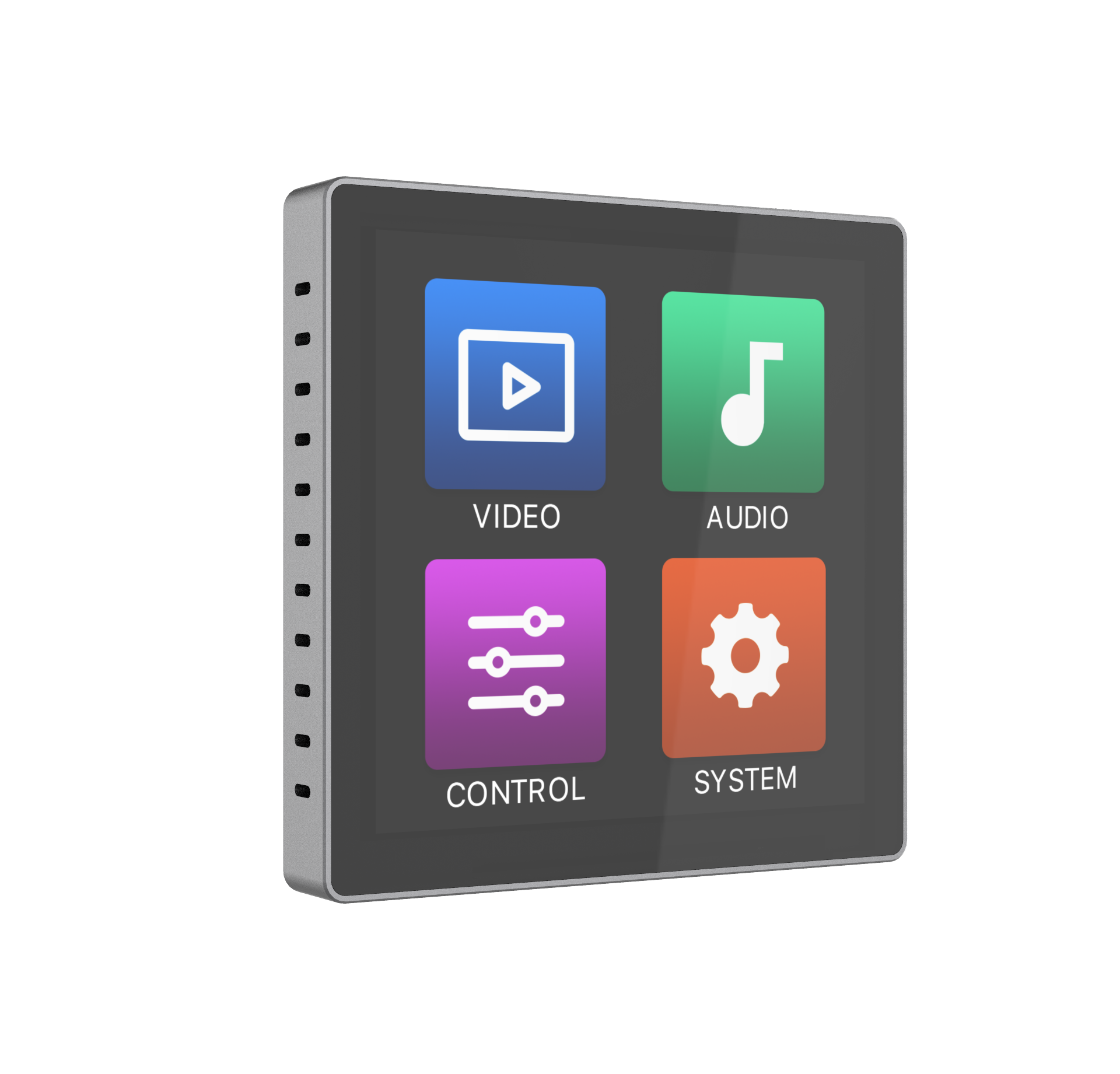

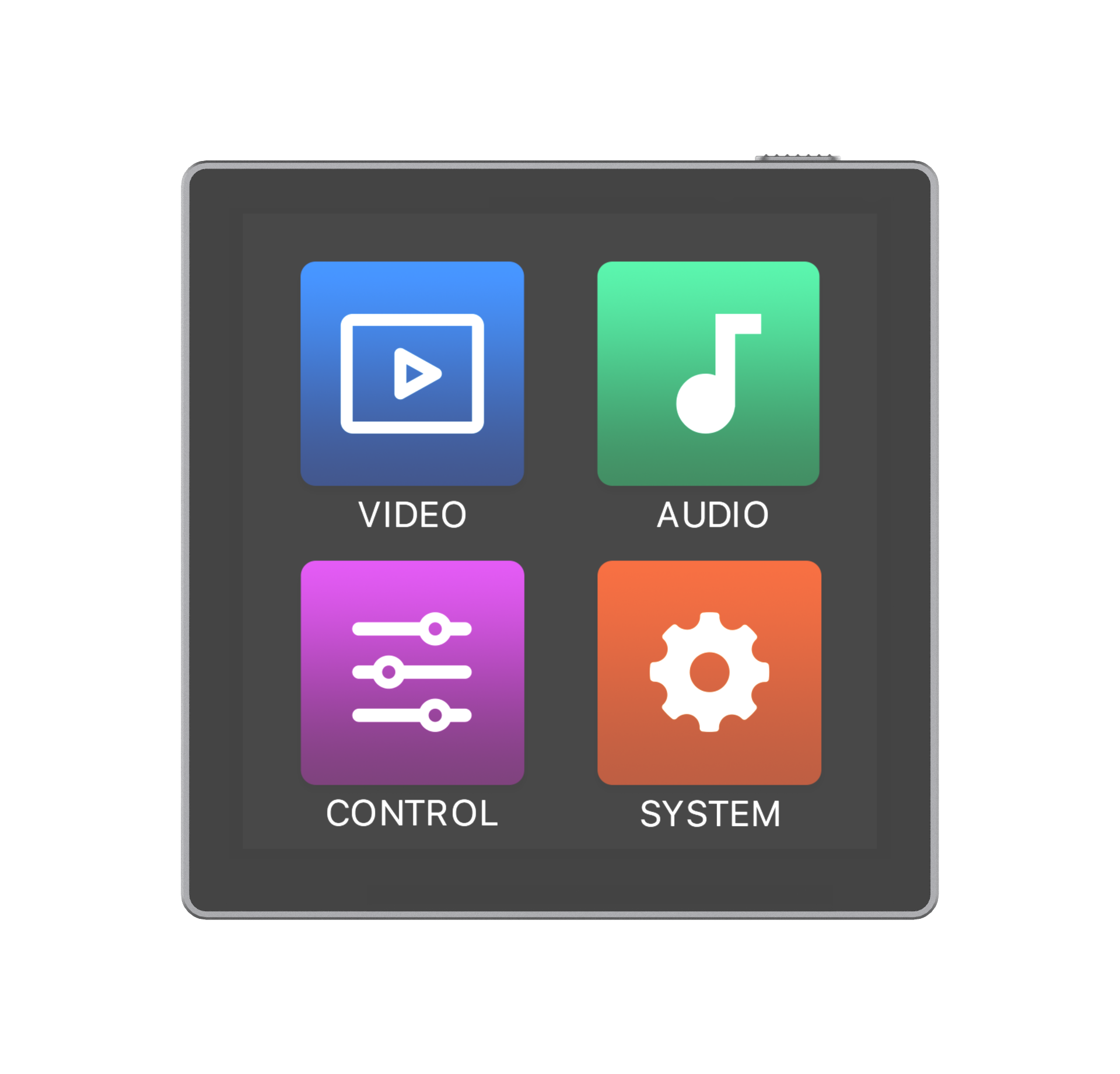

The programmable touch screen control panel is designed to be utilized in the sectors of automated office system, multi-media room and smart home. With a programmable interactive user interface over configuration protocols, the integrated system provides intelligent networking service. The control panel wall-plate (standard 86 box design) is equipped with a capacitive touch screen with a resolution of 720×720, and it supports one RS-485 serial port. It is used in a diverse range of installations and applications across industries including multi-media conference rooms, multi-functional halls, training centers, show room, broadcasting studios and industrial automation.

Feature :

• ARM Cortex-A53 architecture 1.8Ghz main frequency
• Android 9.0 system, 8GB Emmc Flash, 2GB DDR4 RAM720x720 (1:1) resolution, standard 86 box wall-plate design
• One machine with two modes, can be used as touch screen central control or user terminal

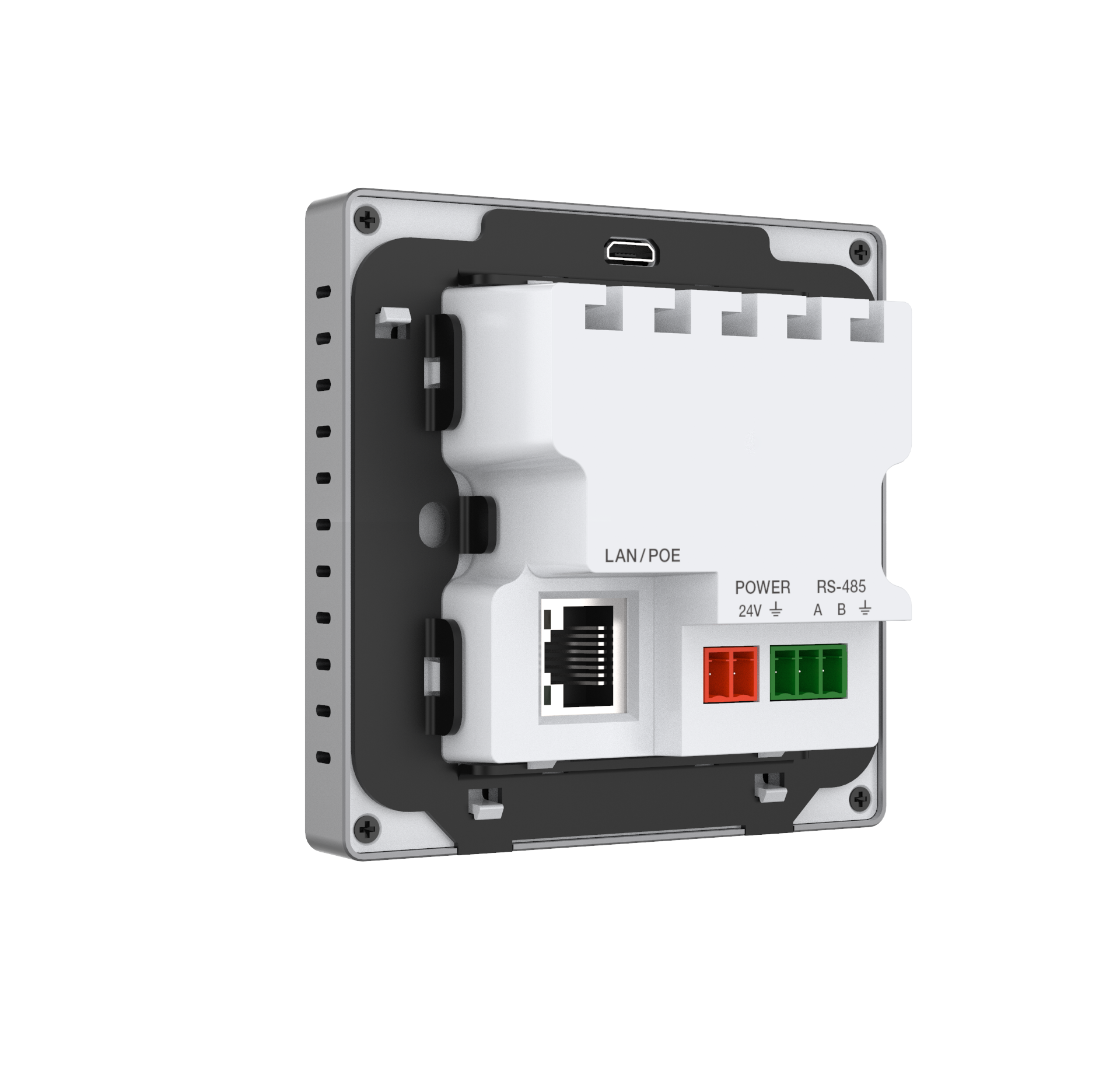

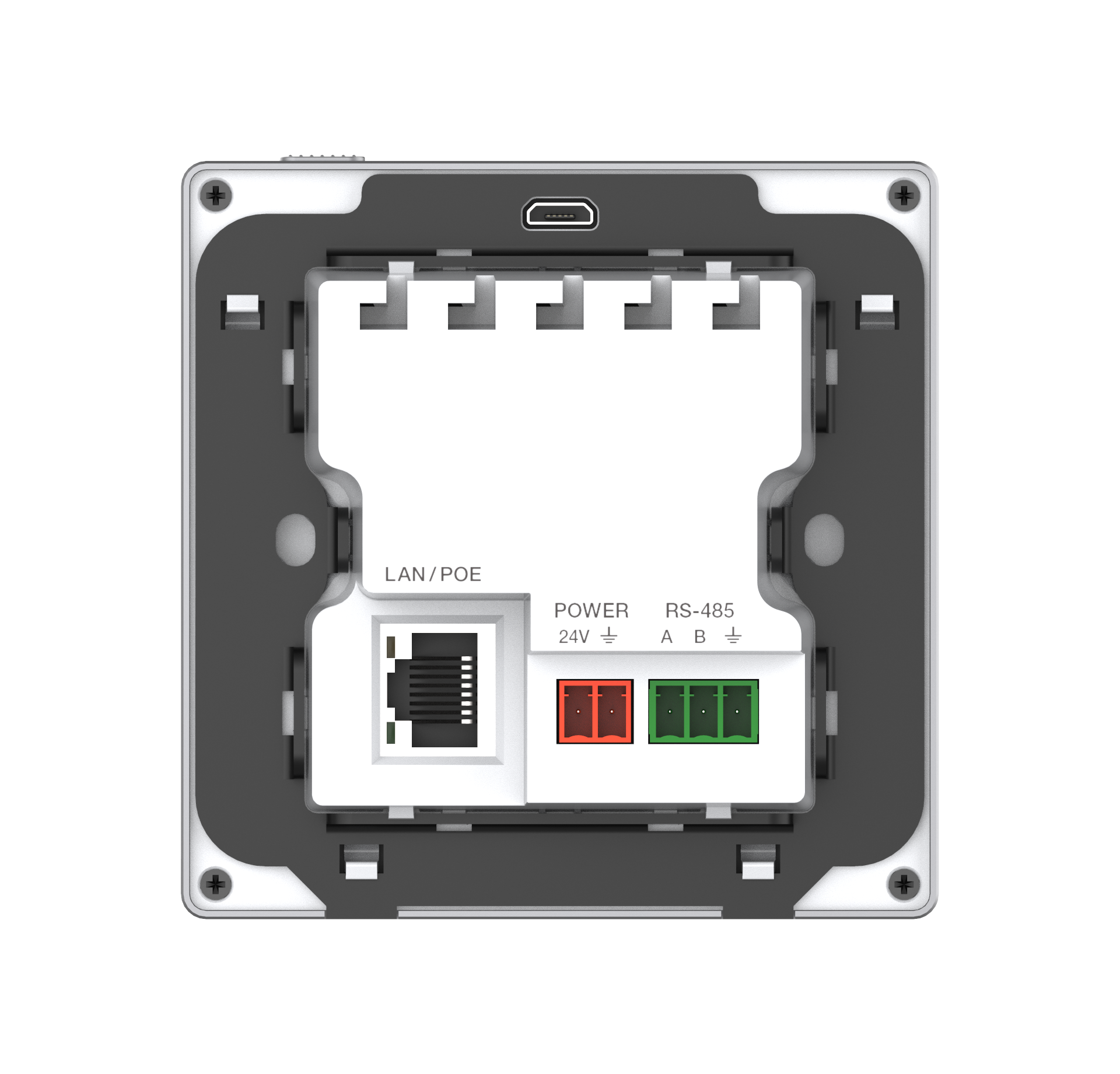

• Support one RS-485 communication serial port, which is capable of configuring 8 baud rates in the range of 2400-115200bps
• Support access to the host system management web page with a password
• Compliant with industry standard network communication protocols (TCP/IP, Http, UDP, Web socket)
• With 1 Gigabit network port, the highest rate up to 1G/bps
• Support POE function or independent DC 24V/1A power supply
• Interface and function configuration via central control software
• Support remote control, remote O&M, online upgrade
• Support factory reset
