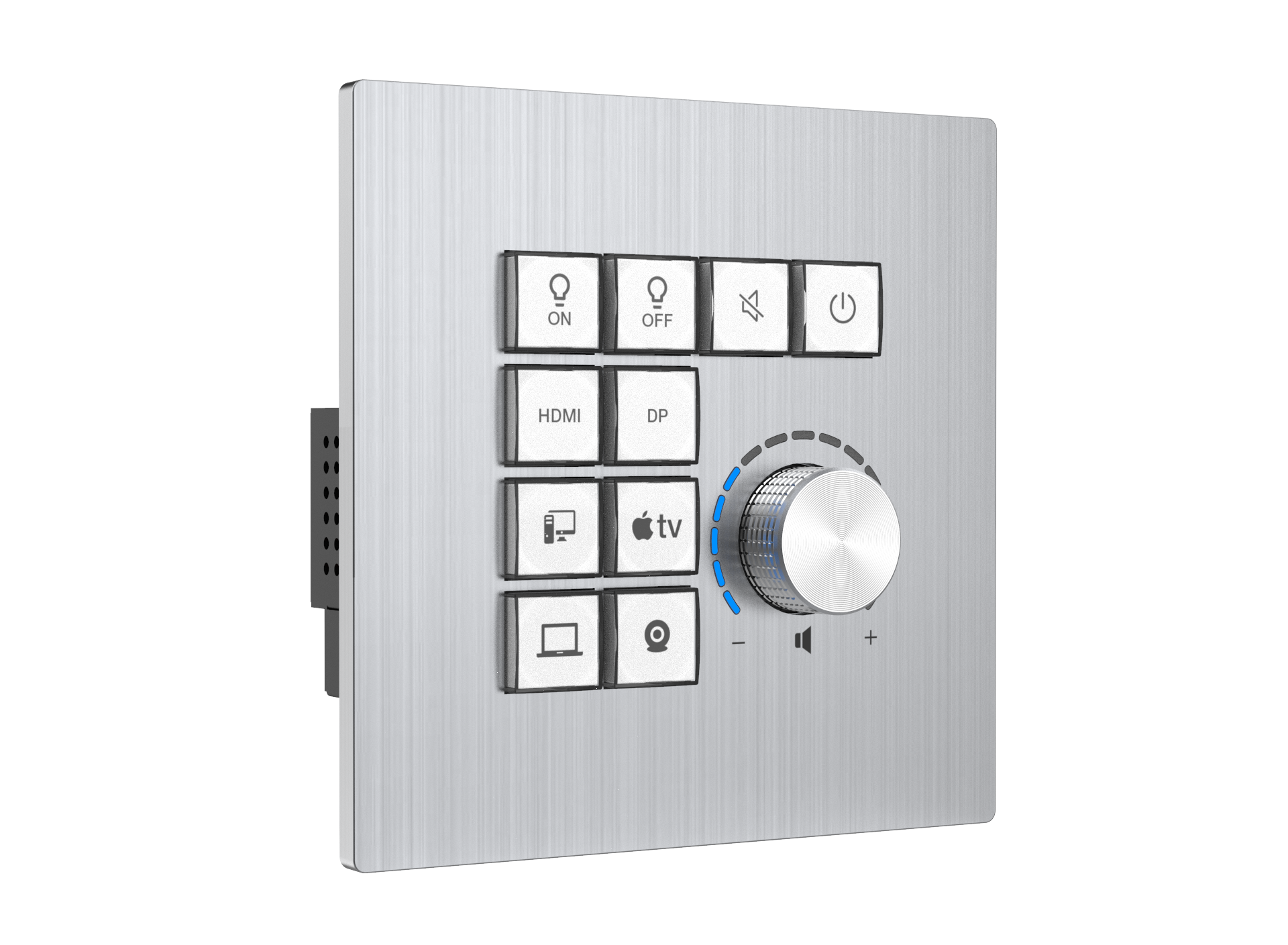

CTL-KPC-10W - VAVE 10 Buttons Keypad Controller Panel in Wall
รายละเอียดสินค้า
CTL-KPC-10W - VAVE 10 Buttons Keypad Controller Panel in Wall The programmable control panel is designed to be utilized in the sectors of automated office system, multi-media room and smart home. With a programmable interactive user interface over configuration protocols, the integrated system provides intelligent networking service. The control panel features 10 programmable buttons, 1 programmable knob, 2 two-way serial ports, 1 IR output port, 2 Relay ports, 1 digital I/O port and 1 Ethernet port. It is used in a diverse range of installations and applications across industries including multi-media conference rooms, multi-functional halls, training centers, show room, broadcasting studios and industrial automation.

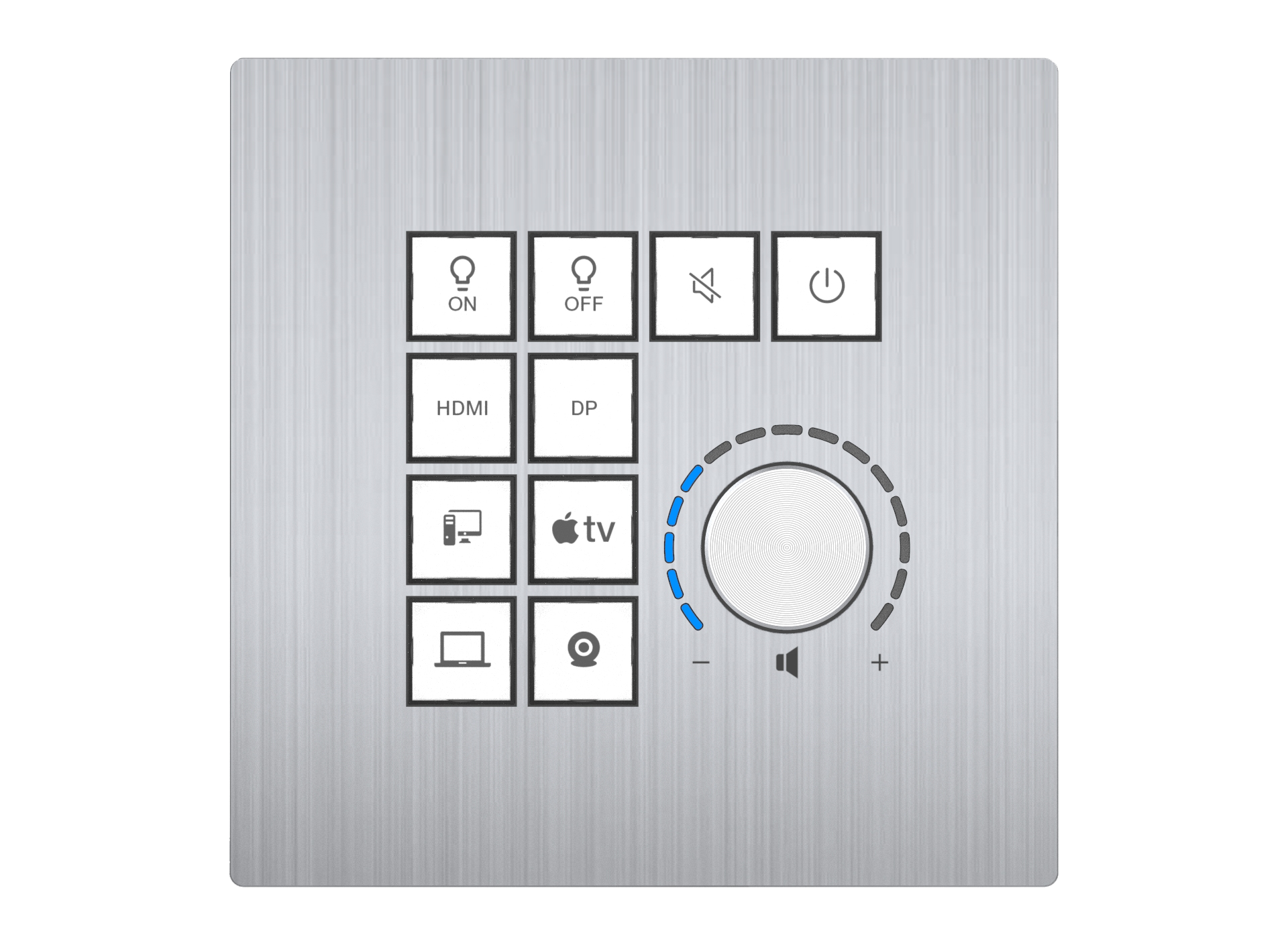

CTL-KPC-10W - VAVE 10 Buttons Keypad Controller Panel in Wall
The programmable control panel is designed to be utilized in the sectors of automated office system, multi-media room and smart home. With a programmable interactive user interface over configuration protocols, the integrated system provides intelligent networking service. The control panel features 10 programmable buttons, 1 programmable knob, 2 two-way serial ports, 1 IR output port, 2 Relay ports, 1 digital I/O port and 1 Ethernet port. It is used in a diverse range of installations and applications across industries including multi-media conference rooms, multi-functional halls, training centers, show room, broadcasting studios and industrial automation.
Feature :
-
- With 2 two-way serial ports to connect matrixes, projectors or other A/V devices
- With 1 IR output/one-way serial port to connect DVD, TV sets, or other home appliances
- With 2 relay ports to control lights, doors or curtain
- With 1 digital input port to receive sensor signals
- With 10 programmable buttons for custom control logic
- With 1 programmable knob (with light indicator), volume can be controlled through the knob
- Capable of connecting with Ethernet-control devices for Ethernet monitoring and control
- Provide a high-performance Web server, supporting on-line firmware upgrade
- Compliant with standard network communication protocols
- Password protection against unauthorized access
- Built-in sync clocks
- Support factory reset
Specifications
| Technical | |
| CPU | ARM Cortex-A53 1.8GHz |
| Operation System | Android 9 |
| RAM | 2GB DDR4 RAM |
| Flash Memory | 8GB EMMC Flash |
| Connections | |
| COM1/2 | 2x 3-pin Phoenix Connectors, for two-way RS-232 serial data communication |
| IR | 1x 2-pin Phoenix Connectors, for IR transmitting or one-way RS-232 serial data communication |
| RELAY | 2x 2-pin Phoenix Connectors, low-voltage relays, isolated, normally open, switching up to 30VDC, 1A / 125VAC, 0.3A |
| I/O | 1x 2-pin Phoenix Connectors, for digital signal inputting |
| LAN/POE | 1 standard 10M/100M/1000M Ethernet RJ45 interface, |
| supporting POE function | |
| PWR | 1x 2-pin Phoenix Connectors, for power supply |
| Buttons | 10x programmable buttons |
| Knob | 1x programmable knob |
| Mechanical | |
| Housing | Metal enclosure with aluminum alloy front panel |
| Color | Silver panel, black back shell |
| Dimensions | 116mm (W)x54mm (D)x116mm (H) |
| Weight | 450g |
| Installation | Type 120 Cassette Mounting |
| Power Supply | 24V DC/1A or POE |
| Power Consumption (Max) | 3.5W |
| Operation Temperature | 32 – 104°F / 0 – 40°C |
| Relative Humidity | 10~90% RH (non-condensing) |
