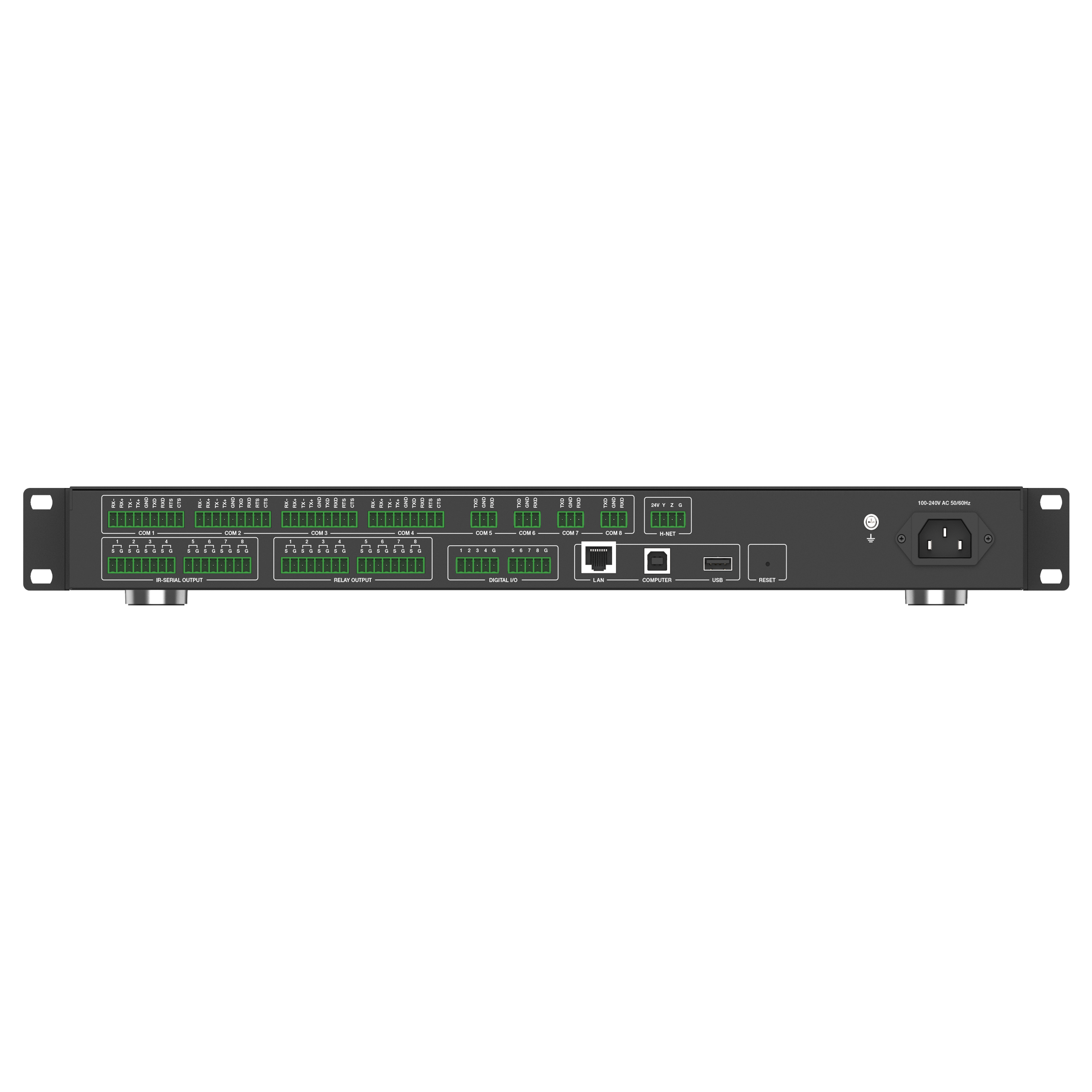

CTL-ADV-PRO - VAVE Universal Central Control System
รายละเอียดสินค้า
CTL-ADV-PRO - VAVE Universal Central Control System The Integrated Controller is designed to be utilized in the sectors of commanding center, automated office system, multi-media room and smart home. With a programmable interactive user interface over configuration protocols, the integrated system provides intelligent networking service, ideal for the establishment of modern commanding and control center. The Controller features 8 two-way serial ports, 8 IR outputs, 8 Relay ports, 8 digital I/O ports and 1 Gigabit Ethernet port, suitable for large-scale application systems to control multiply devices. The Controller is used in a diverse range of installations and applications across industries including emergency alarming centers, C4ISR solutions, governmental administration centers, smart buildings, multi-media conference rooms, multi-functional halls, training centers, showroom, broadcasting studios, and industrial automation.
CTL-ADV-PRO - VAVE Universal Central Control System
The Integrated Controller is designed to be utilized in the sectors of commanding center, automated office system, multi-media room and smart home. With a programmable interactive user interface over configuration protocols, the integrated system provides intelligent networking service, ideal for the establishment of modern commanding and control center. The Controller features 8 two-way serial ports, 8 IR outputs, 8 Relay ports, 8 digital I/O ports and 1 Gigabit Ethernet port, suitable for large-scale application systems to control multiply devices. The Controller is used in a diverse range of installations and applications across industries including emergency alarming centers, C4ISR solutions, governmental administration centers, smart buildings, multi-media conference rooms, multi-functional halls, training centers, showroom, broadcasting studios, and industrial automation.
Feature :
- With 8 two-way serial ports to connect matrixes, projectors or other A/V devices
- With 8 IR outputs/one-way serial ports to connect DVD, TV sets, or other home appliances
- With 8 relay ports to control lights, doors or curtains
- With 8 digital inputs to receive sensor signals
- Capable of connecting with Ethernet-control devices for Ethernet monitoring and control
- IR learning
- Provide a superb-performance Web server, supporting on-line firmware upgrade
- Compliant with standard network communication protocols
- Password protection against unauthorized accesses
- Built-in sync clocks
- Standard 1U rack mounting
- 220V AC power supply
- Support factory reset
Specifications
| Technical | |
| CPU | ARM Cortex-A53 1.8GHz |
| Operation System | Android 9 |
| RAM | 2 GB DDR4 RAM |
| Flash Memory | 8 GB EMMC Flash |
| LEDs | 1× IR Learning LED |
| 1× Power LED | |
| 1× LAN LED | |
| 1× Status LED | |
| 8× TX LEDs | |
| 8× RX LEDs | |
| 8× IR/Serial LEDs | |
| 8× Relay LEDs | |
| 8× I/O LEDs | |
| Connections | |
| COM1/2/3/4 | 4× 9-pin Phoenix Connectors, for two-way RS-232/422/485 serial data communication |
| COM5/6/7/8 | 4× 3-pin Phoenix Connectors, for RS-232 serial data communication |
| IR-SERIAL OUTPUT | 2× 8-pin Phoenix Connectors, for IR transmitting or one way RS-232 serial data communication |
| RELAY OUTPUT | 2× 8-pin Phoenix Connectors, low-voltage relays, isolated, normally open, switching up to 30VDC, 2A / 125VAC, 1A |
| DIGITAL I/O | 2× 5-pin Phoenix Connectors, for digital signal inputting |
| LAN | A standard 10M/100M/1000M Ethernet RJ45 interface |
| USB | 1× USB TYPE A (function reserved) |
| COMPUTER | 1× USB TYPE B |
| H-NET | 1× 4-pin Phoenix Connectors, private bus interface (function reserved) |
| RESET | 1× RESET, for restoring factory default |
| IR | 1× IR learning window |
| Mechanical | |
| Housing | Metal enclosure with aluminum alloy front panel |
| Color | Black |
| Dimensions | 440mm (W)×200mm (D)×44mm (H) |
| Weight | 2.1kg |
| Installation | Standard 19-inch cabinet (with mounting ears) or flat installation |
| Power Supply | AC110~220V 50/60Hz |
| Power Consumption (Max) | 55W (48W for external power supplies connected via the H-NET port.) |
| Operation Temperature | 32 – 104°F / 0 – 40°C |
| Relative Humidity | 10~90% RH (non-condensing) |
