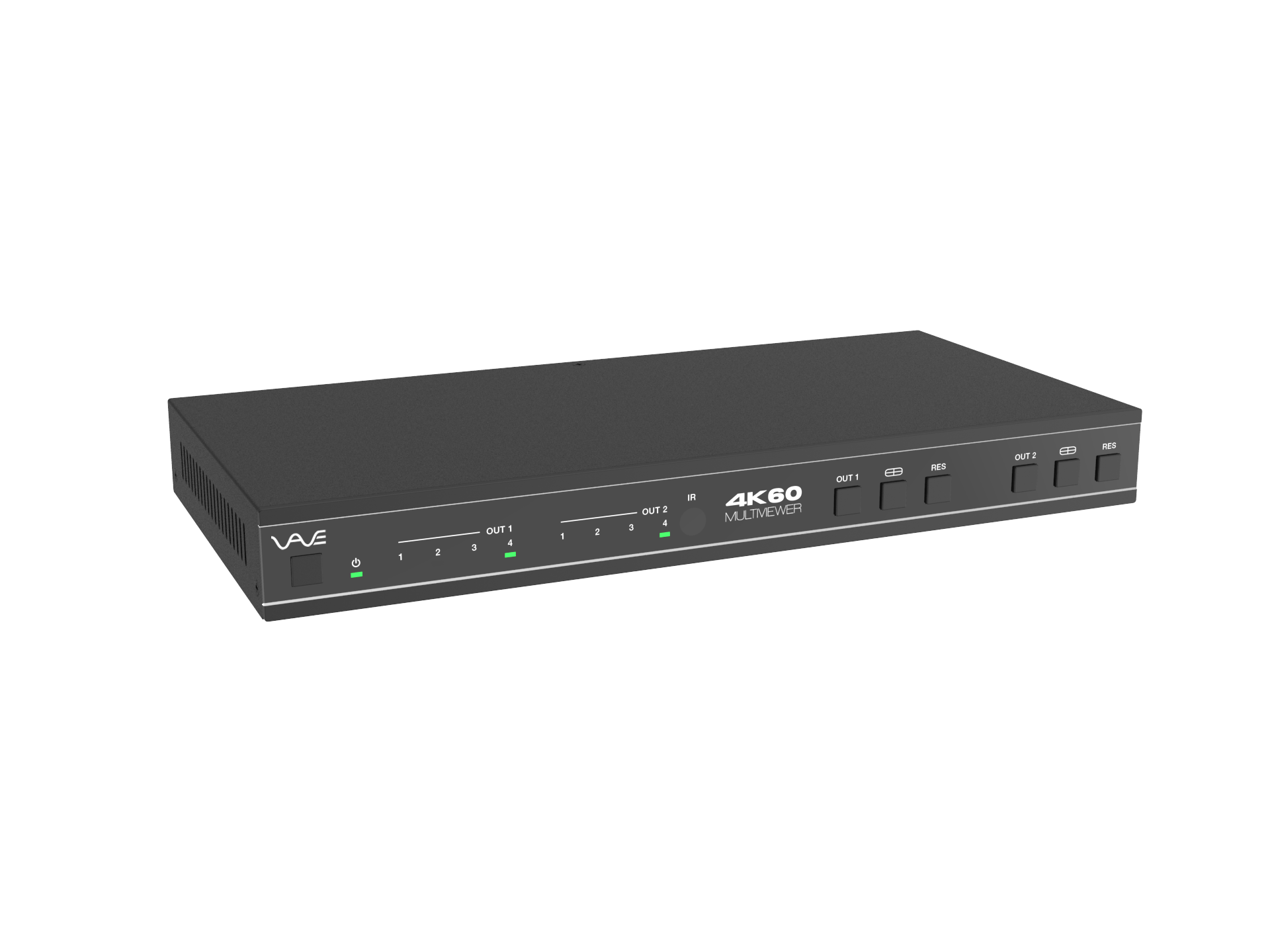

SW-42-MV - VAVE 18 Gbps 4×2 HDMI Seamless Video Matrix /w Multiviewer

SW-42-MV - VAVE 18 Gbps 4×2 HDMI Seamless Video Matrix /w Multiviewer

This 4×2 Multiviewer Seamless UHD Video Matrix Switcher is designed to support high-resolution output (4K@60) for multiple sources across two screens. It accepts four HDMI input sources and independently combines these video signals onto two HDMI UHD or HD monitors. Users can manage and arrange each input, creating various combinations of the four inputs across the two displays and adjusting their positions as needed. The switcher supports eight display modes, allowing flexible switching among four HD input channels. It supports both single-screen and multiview displays. The device handles input resolutions up to 4K@60 (RB) and offers audio de-embedding via RCA and Optical for external audio systems. Control options include front panel buttons, an IR remote, OSD menu navigation, controller software, and RS-232 commands.

Feature :

• HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
• 18 Gbps uncompressed Bandwidth, input and output resolution up to 4K2K@60 4:4:4
• HDMI audio formats support LPCM, DD+, DTS, Dolby TrueHD, DTS HD-master pass-through
• Seamless switching between input channels
• Combined multiple images independent layouts to display on two UHD TVs
• Up to 8 display modes: Single, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2)

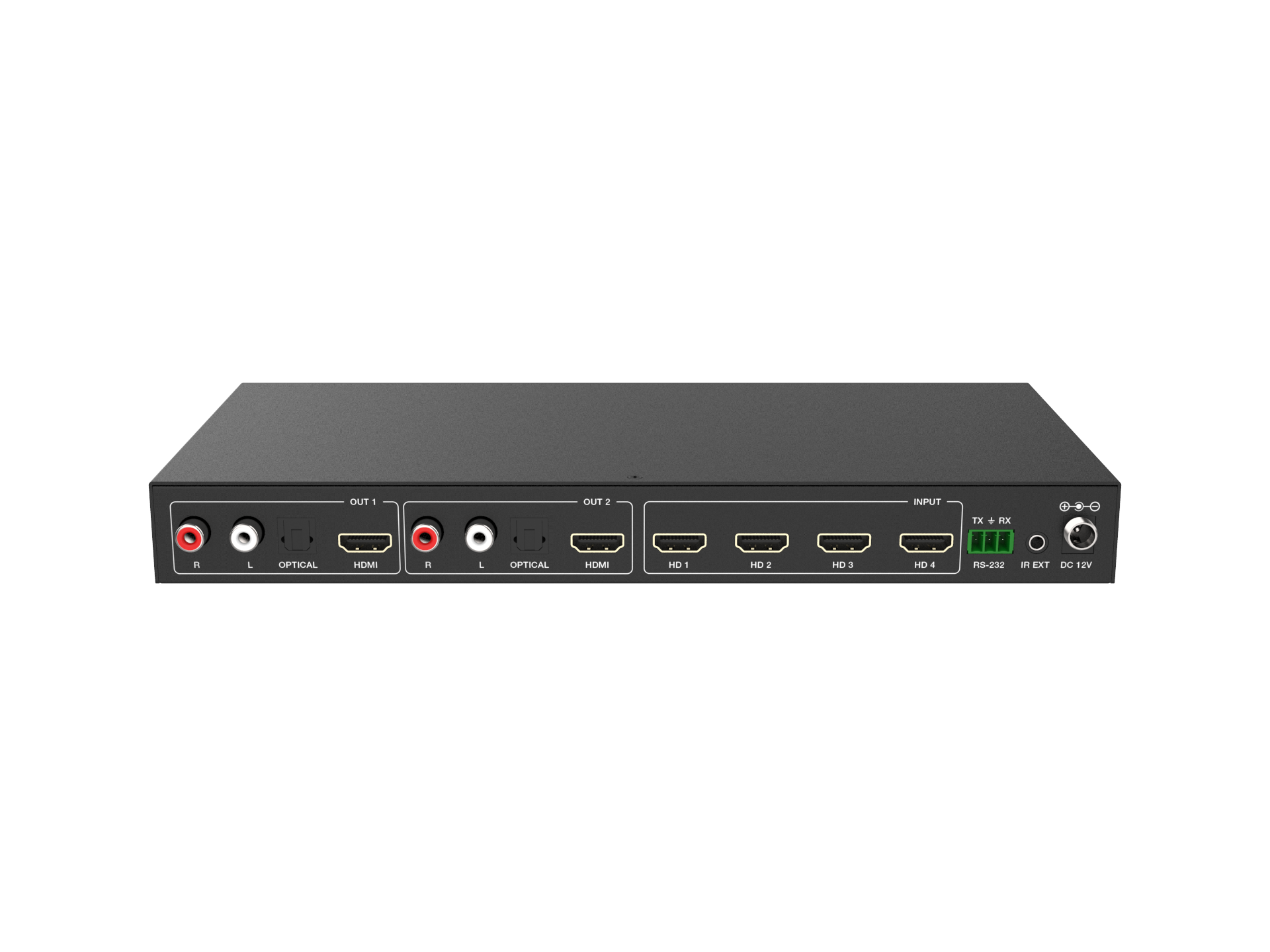

• Audio de-embedding via analog and optical fiber audio ports

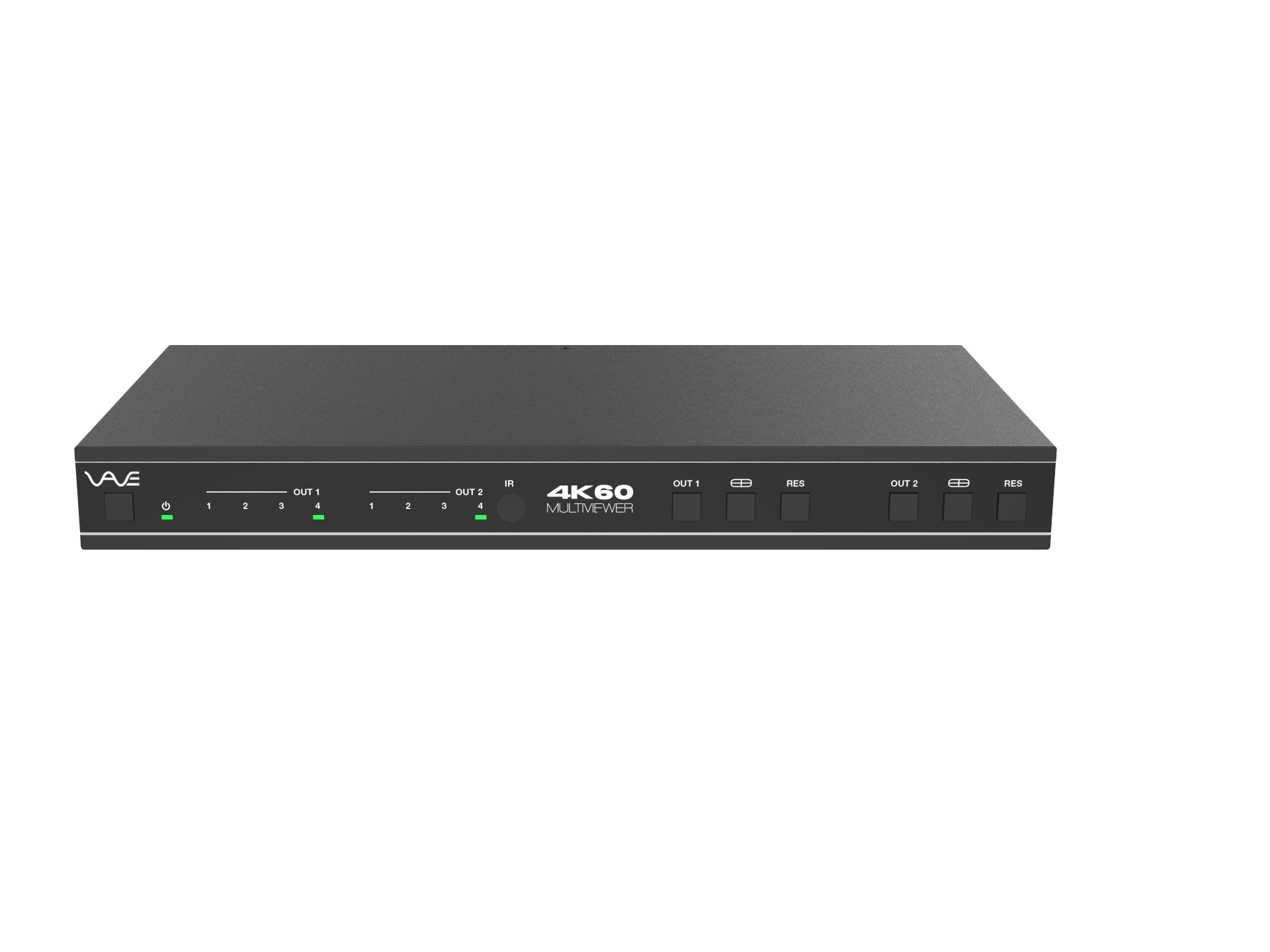

• Control via front panel buttons, IR remote, OSD menu navigation, Controller software, RS-232 commands
• Each output port supports Scaler function
• Support independent audio selection
• Advanced EDID management
• Compact design for easy and flexible installation

Specifications
