SE-4000 : 4K 8-Channel Digital Video Switcher
รายละเอียดสินค้า
SE-4000 : 4K 8-Channel Digital Video Switcher
Complete and compact 8 inputs 4K production switcher
The switcher designed for the omnimedia generation.
Datavideo SE-4000 is a comprehensive 4K video switcher tailored for the omnimedia generation. The SE-4000 is equipped with broadcast quality UHD 4K50/60 12GSDI and HDMI 2.0 video input ports, allowing you to operate the device using the traditional physical control panel and a state-of-the-art 5 inch color LCD touch screen.

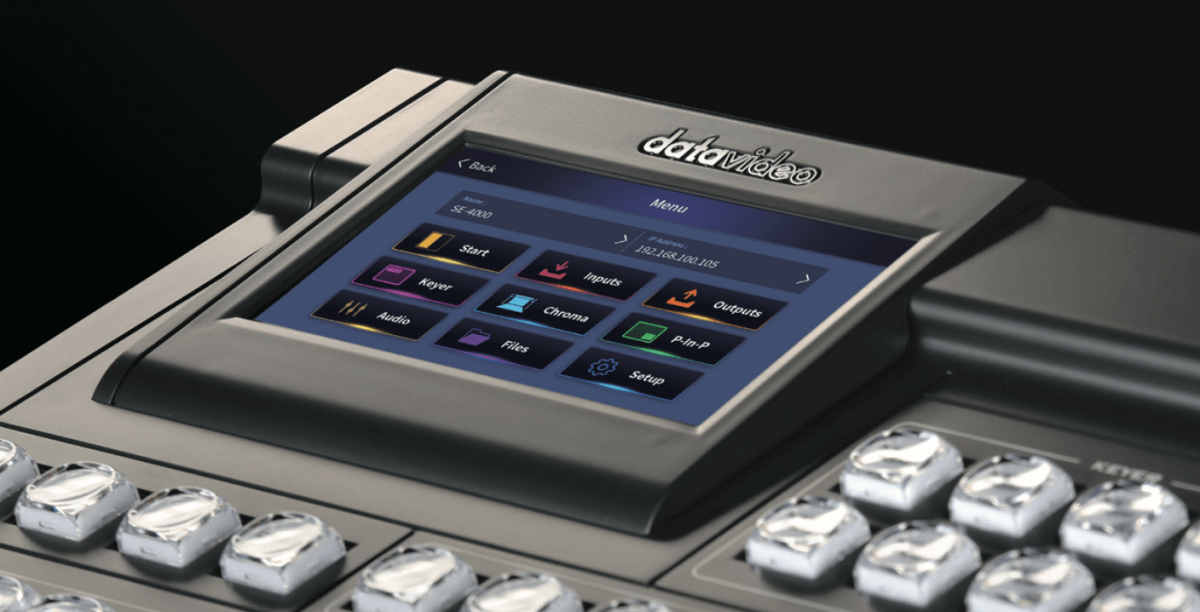

5" Touchscreen Display
The SE-4000 is Datavideo 4K switcher with 4K support on every input. Additionally, it has a 5" LCD touch panel to adjust all the setting without any laptop or app needed.
The OSD menu is behind the one-button-one-function design.
In order to set up the one-button-one-function feature, we've included a color HD 5 inch touch screen. Well-designed icons help you identify settings therein.
All menu functions can be found here. You can group multiple functions into one button so you will be able to execute these functions with one tap.
The touch panel screen and the physical control panel form the most convenient and efficient user interface.
True 12G 4K 50/60 video production switcher
Support UHD 4K60/50p signals on inputs and outputs. It also has built-in input scaler, for up conversion on each available input.

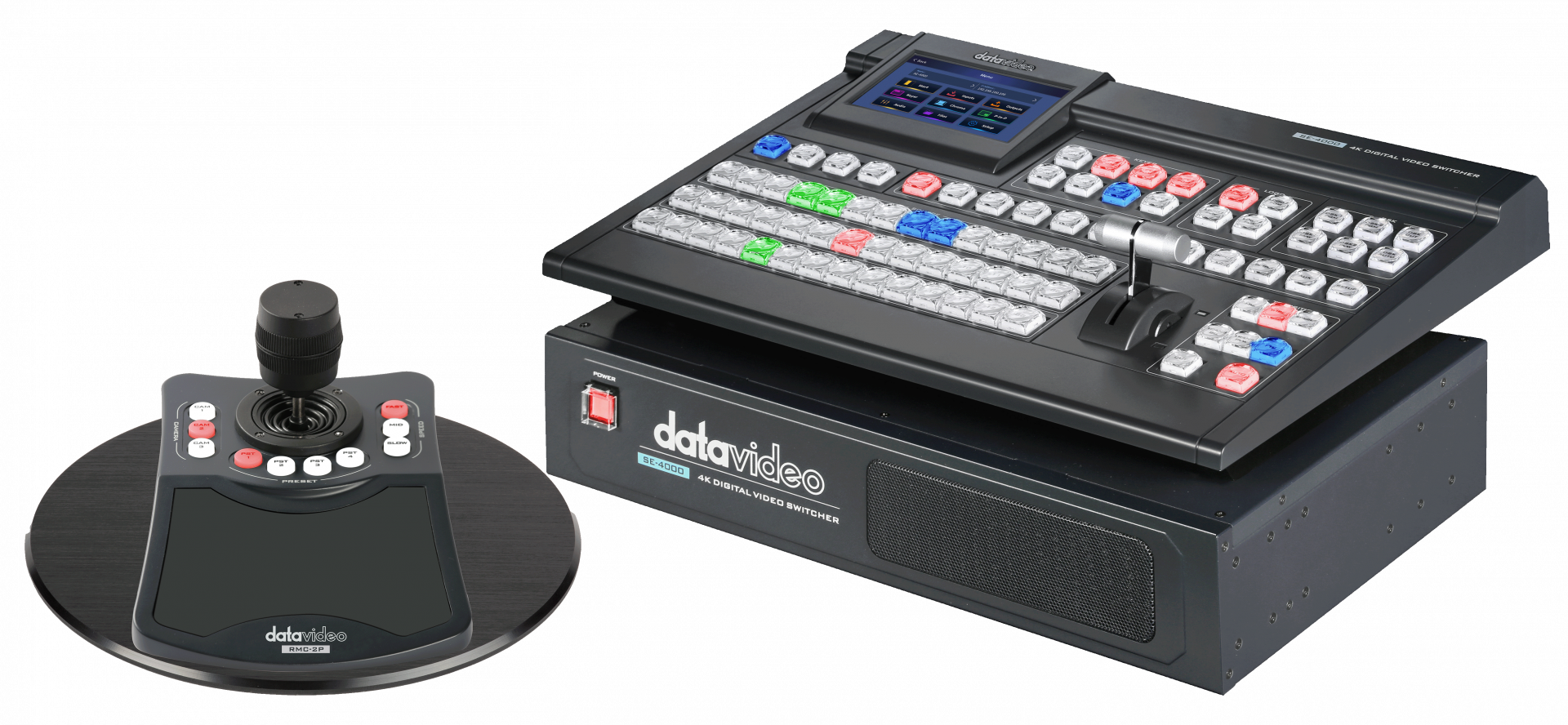

Designed for Easy Installation and Integration
SE-4000's main unit can be easily mounted into a standard 19" rack. The power button on the front panel makes it easy to turn on and off the switcher. Moreover, SE-4000 has DVIP remote control interface, Datavideo DVIP provides an easy integration of Datavideo’s full range of devices.
A 12-Channel Application Built upon an 8 Video Switching Design.
Responsive and seamless interface switching between 12G SDI and HDMI 2.0 on four shared channels. By upgrading from 8 channels to a 12 channel machine, it adds greater versatility to your hardware connections and more possibilities to live program production.

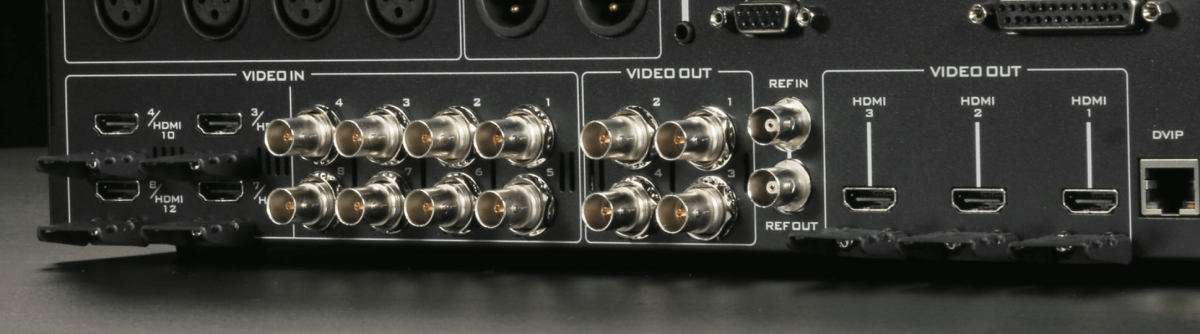

Multiple Interfaces for All Video Types
Fully equipped with various I/O's that accept UHD 4K 50/60p videos from sources such as PCs with an HDMI 2.0 output port, multimedia players, and 12G-SDI ENG style cameras. Upon connection, the 10-bit broadcast quality video will be displayed instantaneously at no expense of resolution, speed and frame rate.

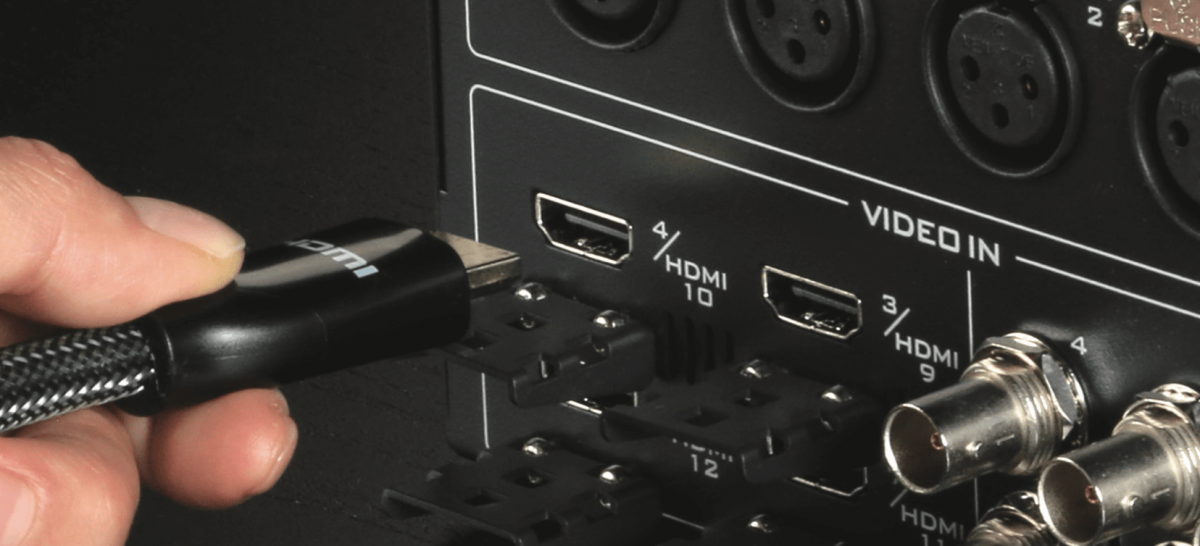

Plug-and-Play
There is no need to install the driver to connect with the laptop. The images and videos can be directly input to the switcher through the HDMI interface of the laptop.
Integrated 5" Touchscreen Display: One touch one function
With the 5" touchscreen panel built-in, you will not need a laptop or app to assist with your live production.
With many built-in functions, including user memory with customized icon, transition animation set up, chroma key, luma key, DSK, PIP, wipe generator, still stores, and logo insertion; these can all be done on the 5" LCD touchscreen.
Flexible video input selections
The SE-4000 has 12 video inputs, with 8 of the inputs being selectable for flexibility, as well as variety of video and audio inputs and outputs, 7 outputs with AUX assignment.
Intuitive One-Button-One-Function
The easy-to-use user interface is intuitive so you don't need complicated composite buttons to activate various switching effects including video effects that are usually activated in a number of steps.
They can all be saved in one user memory slot and with the assigned icon, you can easily identify the settings saved therein. Simply tap the slot to activate all saved features.

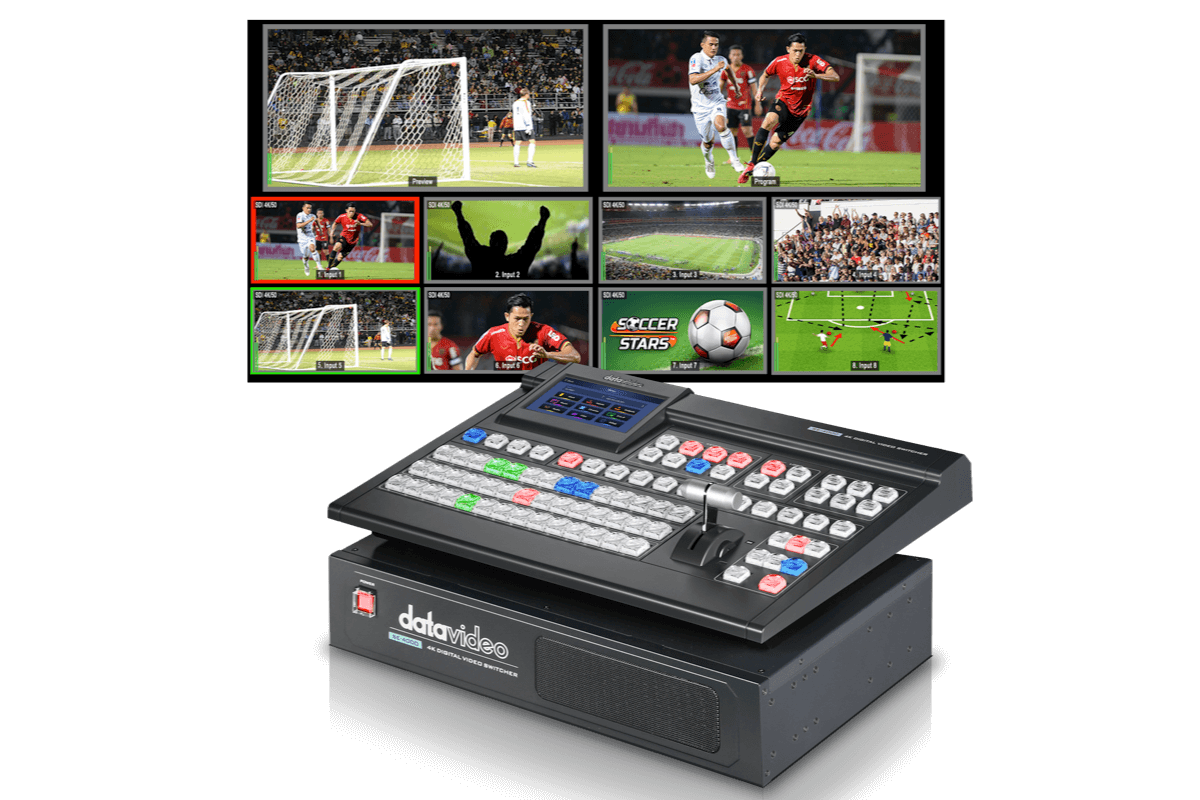

More Multiview Layouts
Datavideo 4000 series video switcher offers 6 different multiview layouts for monitoring. These layouts likely provide users with flexibility in arranging and viewing multiple video sources simultaneously, enhancing the overall usability of the video switcher for various production setups.
Picture-In-Picture frames with unique 3D borders
Create 2 picture-in-picture frames that can be active at the same time. Picture-in-picture frames are fully adjustable in size and position and have various border options including unique 3D borders.
Varieties of 3D PIP Configurations
The two built-in PIP windows can be overlaid on one another. In addition to the default corner places, you can further change the window's size, position and display ratio. You can also crop the window to make it square.
By adding a shaded border, you will then be able to fully generate an advanced 3D PIP window with a self-defined border color.

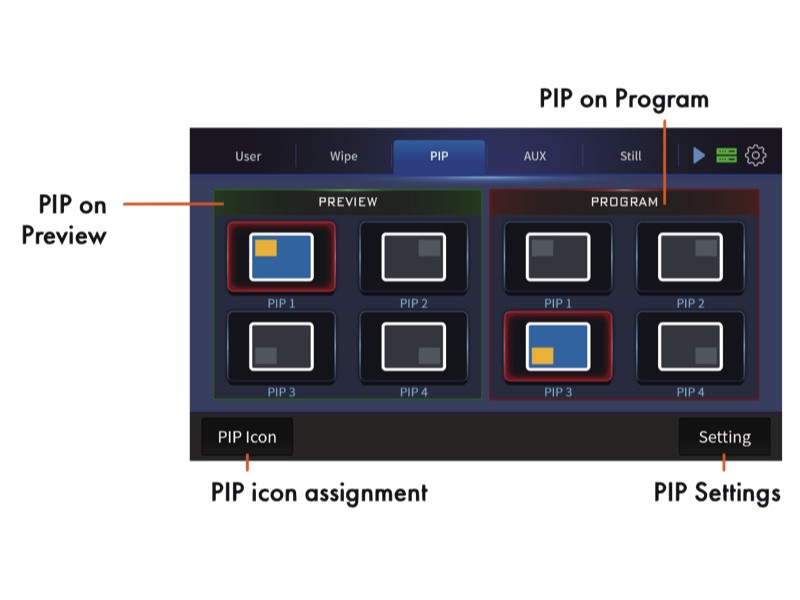

PIP Position Configurations
Change the PIP widow size and position
WIPE Transition Effects
There is a total of 64 wipe transition effects designed for different TV programs. The WIPE transition is a very crucial element in program production. The SE-4000 provides 64 eye- catching WIPE effects with configurable border color and width. The border can be further softened to make the WIPE effect unique.
Still image thumbnails
Save up to 250 4K still images such as sequential program images, images of various scenarios, full size logos, school or faculty badges, etc.
You can also capture important moments of your program and save these images for post-edits. This library of images is a good tool for future video production.
Lumakey, Chromakey, Linear Key and Downstream Key
Commonly used lumakey and chromakey, montage linear key and the topmost downstream key layer
are crucial elements to upgrading the video program quality.
They not only boost the professionalism of your video, they are also easy to use. With a customized combination of these four keyers, they add elegance to your program by generating advanced video effects.
