AJA 12G-AM-TR SDI 8-Channel AES Embedder/Disembedder

AJA 12G-AM-TR SDI 8-Channel AES Embedder/Disembedder
AJA 12G-AM-TR SDI 8-Channel AES Embedder/DisembedderAJA 12G-AM-TR SDI 8-Channel AES Embedder/Disembedder
รหัสสินค้า SKU-02401
หมวดหมู่ HDMI Converters
ราคา 0.00 บาท
VAT7% สอบถามเพิ่มเติม
สถานะสินค้า พร้อมส่ง
ลงสินค้า 19 มี.ค. 2568
อัพเดทล่าสุด 19 มี.ค. 2568
คงเหลือ ไม่จำกัด
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
Tags : aja, 8 CHANNEL, 12G-SDI, UHD 4K, mini converter

รายละเอียดสินค้า

AJA's Hi5-12G 12G-SDI to HDMI 2.0 Mini-Converter converts 12G-SDI video to HDMI 2.0, offering a single-cable, HDMI monitoring solution. This compact converter features one 12G-SDI single-link input, one HDMI 2.0 output, and one re-clocked SDI loop-out. With support for up to UHD 4K60, and HDR metadata generation, the Hi5-12G fits neatly into your professional workflow.

AJA 12G-AM-TR SDI 8-Channel AES Embedder/Disembedder

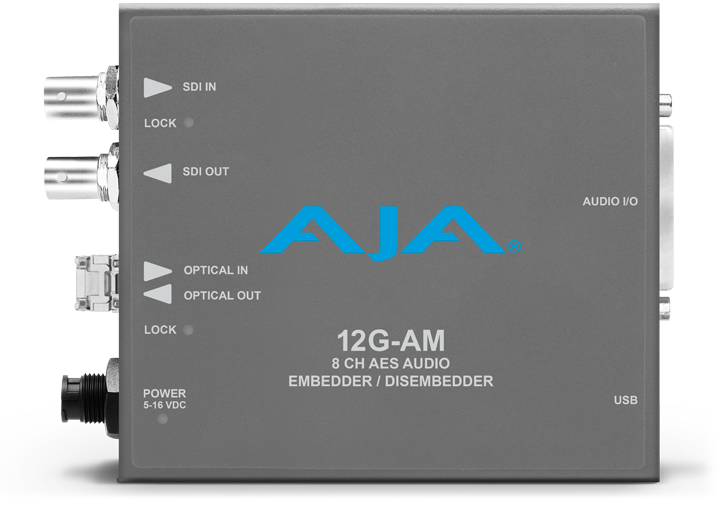

The 12G-AM is an 8-channel AES audio embedder/disembedder Mini-Converter with support for 12G-SDI input and output up to 4K/UltraHD. Fiber models offer single link fiber I/O including LC and ST options.

AES Audio disembedding is always functional, providing four AES outputs. Audio embedding is user selectable, on a channel pair basis, to either pass 12G-SDI input audio or to embed input AES audio from the breakout cable.

The 12G-AM automatically detects and configures the input video standard.

Features

  • 12G-SDI 8-Channel AES Embedder/Disembedder
  • 12G-SDI Input and Output up to 4K/UltraHD
  • 8-channel balanced AES audio Embedder/Disembedder with LC and ST Fiber model options. (Please see models below).
  • AES audio Disembedding is always functional with four AES outputs
  • AES audio Embedding is user selectable on a channel pair basis, to either pass 12G-SDI input audio or embed input AES audio
  • Selectable AES audio levels
  • Automatically detects and configures the input video standard
  • 1.5G-SDI Internal Signal Generator allows the embedder path to function without needing to connect a source to the SDI input
  • Small form factor allows for a wide variety of installation locations
  • Supplied XLR breakout cable offers 8-channels In and 8-channels Out over eight XLR connectors
  • USB connectivity via AJA Mini-Config software
  • DIP Switch configuration
  • 5-16 VDC Power
  • Five year warranty
