AJA 12G-AM-R-ST 12G-SDI 8-Channel AES Embedder/Disembedder

AJA 12G-AM-R-ST 12G-SDI 8-Channel AES Embedder/Disembedder

Overview

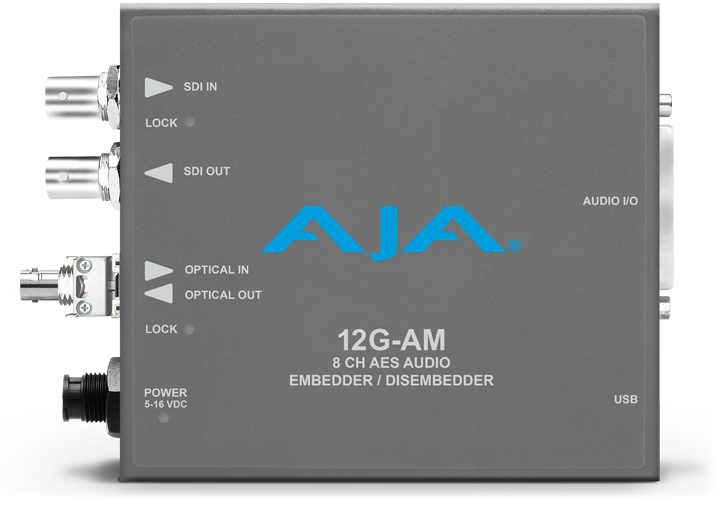

The 12G-AM is an 8-channel AES audio embedder/disembedder Mini-Converter with support for 12G-SDI input and output up to 4K/UltraHD. Fiber models offer single link fiber I/O including LC and ST options.

AES Audio disembedding is always functional, providing four AES outputs. Audio embedding is user selectable, on a channel pair basis, to either pass 12G-SDI input audio or to embed input AES audio from the breakout cable.

The 12G-AM automatically detects and configures the input video standard

  • 12G-SDI Input and Output up to 4K/UltraHD
  • 8-channel balanced AES audio Embedder/Disembedder
  • Ships with a ST Fiber single channel SFP Receiver for extending 4K/UltraHD signals over long distances
  • AES audio Disembedding is always functional with four AES outputs
  • AES audio Embedding is user selectable on a channel pair basis, to either pass 12G-SDI input audio or embed input AES audio
  • Selectable AES audio levels
  • Automatically detects and configures the input video standard
  • Small form factor allows for a wide variety of installation locations
  • Supplied XLR breakout cable offers 8-channels In and 8-channels Out over eight XLR connectors
  • USB connectivity via AJA Mini-Config software
  • DIP Switch configuration
  • 5-16 VDC Power
  • Five year warranty
