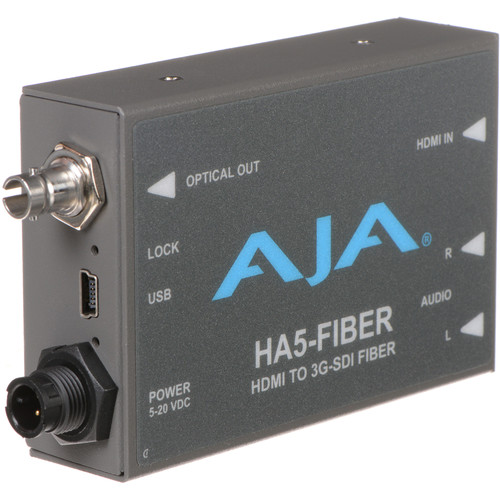

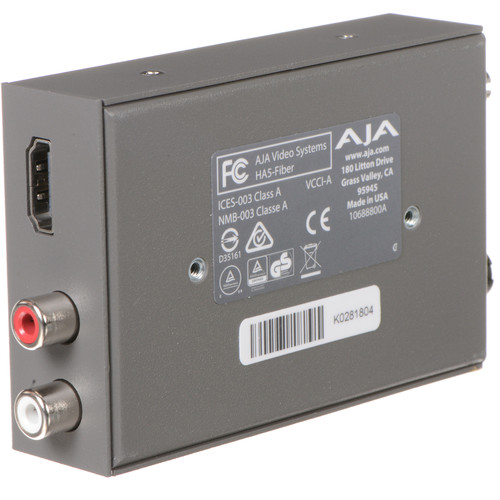

AJA HA5-Fiber HDMI to 3G-SDI Fiber Mini Converter

Overview

The HA5-Fiber converts a HDMI input to 3G-SDI over single mode 1310 nm fiber optic cable (ST-style fiber connector) for transporting HDMI sources over fiber. The small form factor enables this Mini-Converter to easily fit onto the back of a camera or neatly behind an equipment rack.

Embedded 8-Channel audio is supported in the fiber output allowing a convenient single cable audio/video connection up to 10km. The HA5-Fiber also provides 2-Channel RCA style audio inputs for a stereo audio input when needed.

Features

• HDMI to 3G-SDI over fiber
• EDID Emulation
• Supports single mode 1310 nm fiber optic cable with ST transmitter
• Simple Frame Rate Conversion (FRC) 60 fps to 59.94 fps, and 59.94 fps to 60 fps
• Full HDMI input support including embedded audio
• Additional 2-Channel RCA style analog audio (-10dBu nominal) input
• No configuration necessary
• 1m HDMI cable included
• Five year warranty

USB and Mini-Config Support

AJA’s free Mini-Config software can be used with any USB enabled AJA Mini-Converter and provides an easy to use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.

Download Mini-Config

Universal Power Supply

All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

Compact and Portable

AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Mini-Matrix

Information on the complete line of AJA Converters is available in Mini-Matrix. AJA products are extensive and this resource helps you find the right Converter for any situation, wherever you are. Individual products have links back to the main AJA website for more details.

Launch Mini-Matrix

Industry Leading Support

AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Mini-Converter installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.

Mini-Converter products are covered by a generous five year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.
