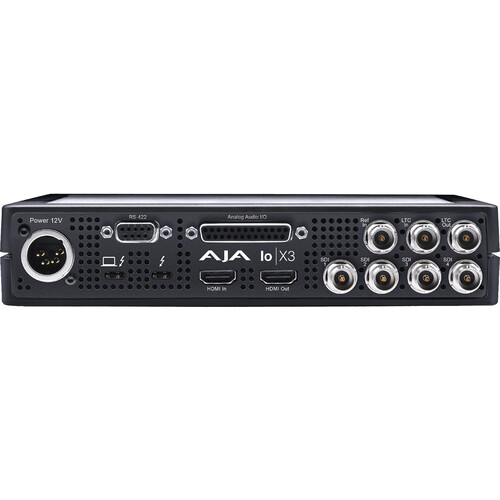

• 2K/HD/SD I/O up to 50/60p
• 4x bidirectional 3G-SDI BNC with 16-channel embedded audio
• HDMI I/O with 8-channel embedded audio
• Two Thunderbolt 3 (Thunderbolt 4 compatible) ports with loop through
• Multi-channel workflow support for OBS, Wirecast, vMix, and other applications
• YCbCr 4:2:2 10-bit up to 60p
• RGB 4:4:4 12-bit up to 30p
• VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry, and Luminance via SDI
• PQ, HLG, HDR10 and Dolby Vision Support
• HDR Metadata Capture and Auto Playback Detection
• Multiview output over HDMI, to view up to 4-channels on one screen
• Analog audio flexibility with a choice of 8-channel In or 8-channel Out or 4-channel In and 4-channel Out via a standard Tascam connection
• Front panel audio display
• Includes support for Apple silicon
• XLR 12V power for battery or AC use (AC adapter included)
• Headphone jack and level control for mobile and live environments
• RS-422 VTR control, Reference, LTC Input and LTC Output

Simple to set up and use, Io X3’s Thunderbolt 3 ports (also compatible with Thunderbolt 4) easily connect to a wide range of Apple, Windows, and Linux laptops and desktops, providing instant professional video and audio I/O from your favorite creative application.

Dual Thunderbolt 3 ports allow convenient daisy-chaining of other devices on the same Thunderbolt connection.

Thunderbolt is ubiquitous across both Mac, Windows, and Linux computers and supports the massive bandwidth needed for professional video, audio, data, and more.

Thunderbolt Solutions

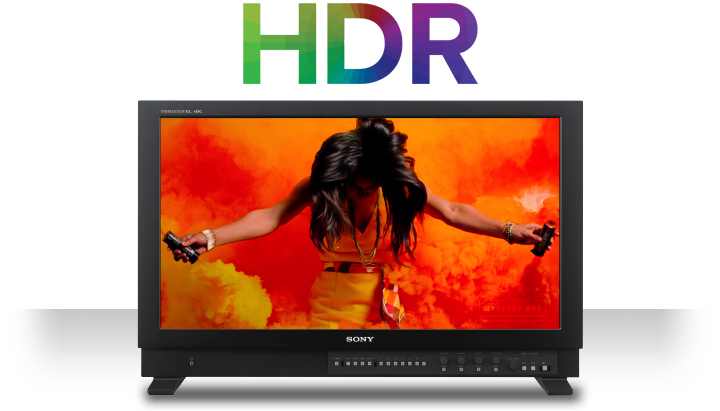

HDR or High Dynamic Range, provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than standard signals allow. This gives your imagery a more ‘dynamic’ look and allows for natural, true to life colors to be communicated to your audience.

Io X3 provides this support for your 2K and HD HDR pipelines to HDMI and SDI compatible displays with HLG and HDR10 support with HDR Infoframe metadata, in accordance with HDMI 2.0a/CTA-861.3 and HD.

AJA Control Room software and Io X3 add support for HDR metadata capture from an incoming SDI or HDMI signal. The captured .mov video file will have embedded HDR metadata, allowing the file to be played back at its intended dynamic range.

AJA Control Room software and Io X3 Plus also provide HDR Auto Playback Detection. Embedded HDR metadata in a recorded .mov file is read and used to automatically set the HDR format on the monitor(s) connected to the HDMI and/or SDI outputs.

Support for file-based .mov HDR outputs with metadata from Adobe Premiere Pro / Adobe Media Encoder HDR files is also available. Screening those rendered outputs is a simple and high quality experience with AJA Control Room. Every frame is presented in its full quality, at the timing intended, and with the proper HDR format set correctly and automatically.

Explore more of our HDR Solutions here:

HDR Solutions

Io X3 is directly compatible with OBS Studio, offering a comprehensive toolkit for mixing live video and taking the program content out to streaming destinations. Io X3 again sits at the center of the workflow pictured opposite, providing the necessary video I/O for a four camera source program. Via Io X3's multi-channel support, the 4x HD cameras are connected directly to the 3G-SDI ports of the Io X3 which is connected via Thunderbolt 3 to the host PC or laptop. The host computer runs the OBS Studio software and allows you to view all incoming HD sources in a single multiview via the HDMI port to any display. Audio can be monitored via the built-in analog headphone port. The final PGM stream is output from our switched sources via the host computer.

Download Workflow

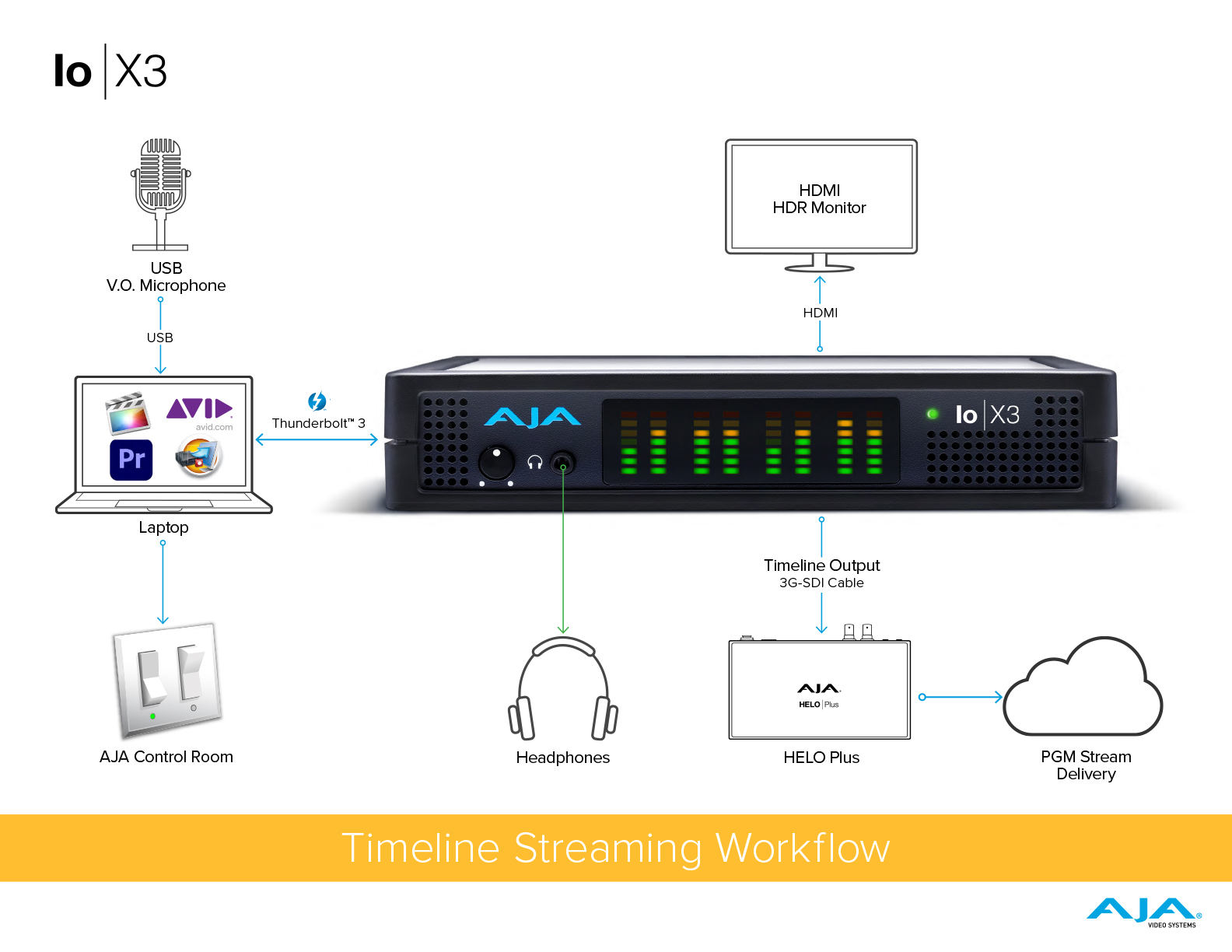

A popular way to stream for NLE and 3D modeling applications is to utilize the timeline output and offer commentary in real time as edits or models are created. Following the same base setup as the NLE workflow and by utilizing AJA’s HD streaming device, the HELO Plus, we can combine two high quality AJA devices to create an extremely robust solution. It is easy to connect a 3G-SDI output from the Io X3 to the 3G-SDI input of the HELO Plus and take the content directly from the timeline playhead to a live stream, with voiceover provided by a USB microphone. A very simple but powerful set up that can be utilized by streaming for both entertainment, remote collaboration and educational purposes, allowing viewers to better contextualize the content.

Download Workflow
