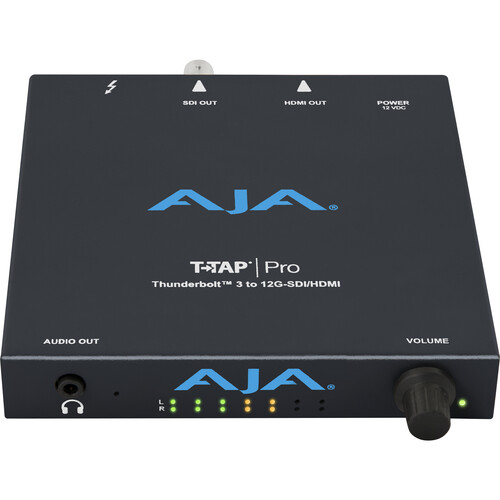

AJA T-TAP® Pro Thunderbolt™ 3 12G-SDI and HDMI 2.0 Output

• 12G-SDI and HDMI 2.0 connectivity for working with 4K or UltraHD over a single cable up to 60p
• SDI output supports 12G-SDI, 6G-SDI, 3G-SDI, 1.5G-SDI and 270 Mb
• 4K/UltraHD/2K/HD/SD Output/Monitoring up to 50/60p
• 1x 12G-SDI BNC with 16-channel embedded audio
• 1x HDMI 2.0 with 8-channel embedded audio

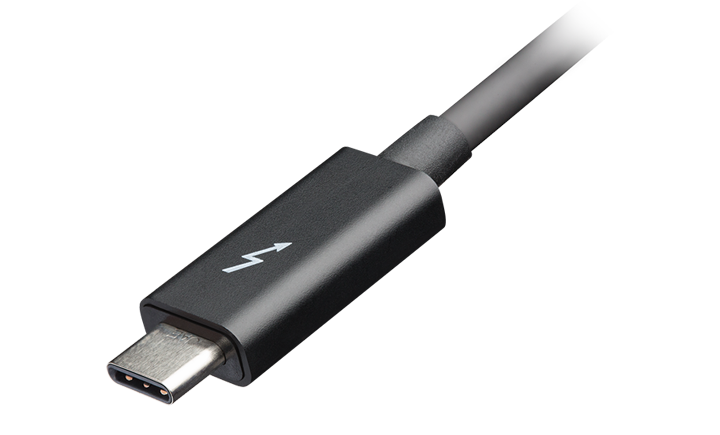

• 1x Thunderbolt 3 (also Thunderbolt 4 compatible) connector

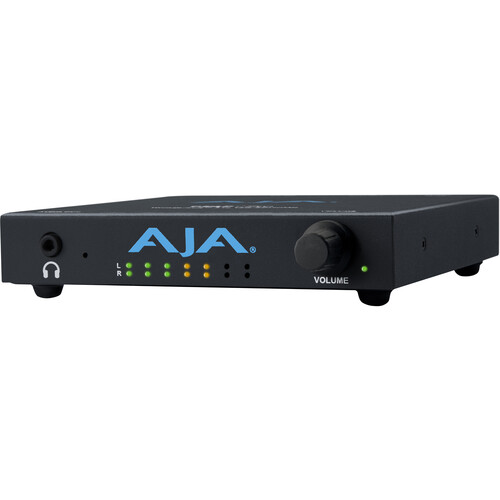

• Compact, silent, mobile form factor with front-panel Audio Levels Reference Display
• RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit and HFR workflows supported
• 12-bit and 10-bit LUT support (.cube)
• 4K Closed Captioning Support
• VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry, and Luminance via SDI
• PQ, HLG, HDR10 and Dolby Vision Support
• HDR Metadata Auto Playback Detection
• Includes support for Apple silicon

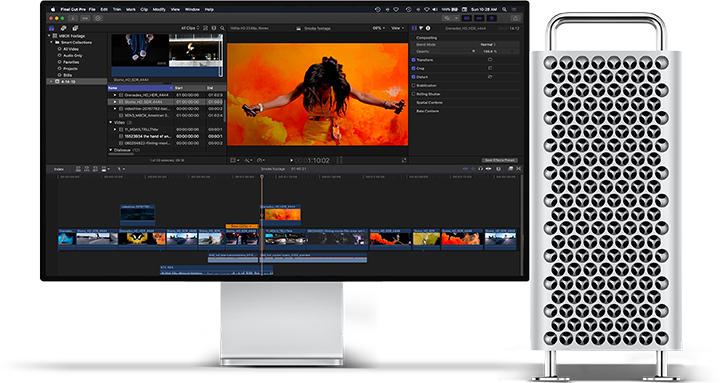

• Compatible with OBS Studio, Telestream Wirecast, Adobe Creative Suite, Apple Final Cut Pro, Avid Media Composer, and many more
• Headphone jack and quick access audio level control for mobile or live environments
• Power Supply Included
• 3 Year Warranty

AJA Desktop Software is optimized for the latest Apple silicon with native support for AJA macOS drivers, application plug-ins, AJA Control Room, AJA Control Panel, and AJA System Test.

AJA's T-TAP Pro provides video professionals with an inexpensive, extremely compact device that utilizes the power of Thunderbolt 3 to deliver high quality 10 and 12-bit up to UltraHD or 4K 60p video and embedded audio output from any compatible Mac, Windows, or Linux PC.

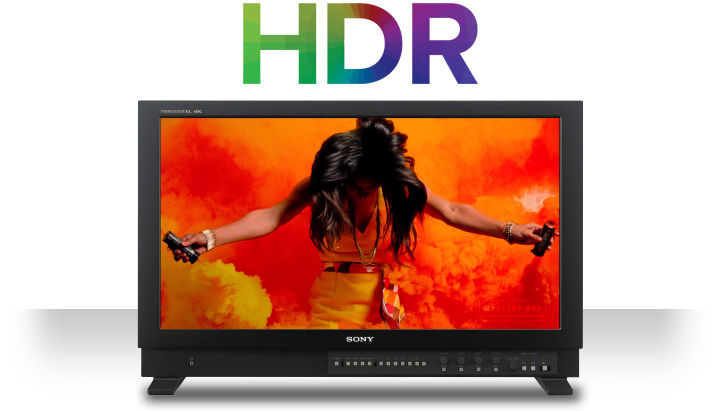

T-TAP Pro directly supports HDR dependent monitoring workflows across a number of HDR formats, including HLG (Hybrid Log Gamma), PQ, and HDR10, with support for Dolby Vision possible via additional third party application integration.

AJA’s Desktop software offers HDR over SDI with VPID signaling of SDR and HDR characteristics. The HDR Tab in AJA Control Panel signals HDR over both SDI and HDMI simultaneously.

For playback, AJA Control Room software reads HDR metadata embedded in .mov files and uses that to auto-set Control Panel to signal HDR accordingly, simplifying the workflow chain.

With T-TAP Pro and the appropriately captured/rendered HDR files, AJA Control Room can automatically detect the HDR format and T-TAP Pro can automatically adjust its output accordingly via both 12G-SDI or HDMI.

AJA Control Room

• Supports CEA-608 or 608-in-708 via ANC extraction firmware

Avid & Adobe Plugins

• All SMPTE-291 (ANC) based captions supported
• Adobe Premiere supports native 708 if the raw data is available. For instance, in the Adobe plug-ins we handle the case where Premiere hands us full 708 data, we just pass it through to the device
• Avid Media Composer supports active video ANC (line 21) or ANC via ANC extractor/inserter (up to UHD/4K)

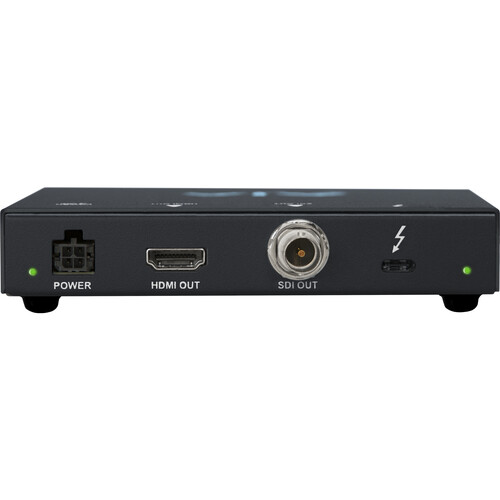

T-TAP Pro features 12G-SDI and HDMI 2.0 outputs. The SDI output can be used to feed professional monitors or recording gear, while the HDMI output is able to feed directly into consumer HDMI monitors. Both HDMI and SDI are active at all times, so you can simultaneously work with professional and consumer monitors.

Supports macOS, Windows, and Linux Ubuntu / Rocky. Please see Release Notes for details and version information which can be found in the Downloads, Software tab.
