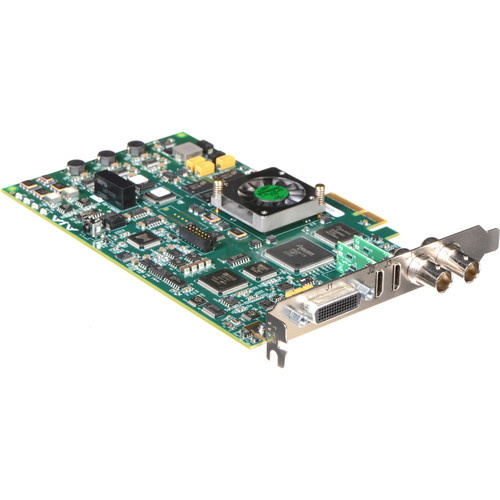

AJA KONA LHi Capture Card

AJA KONA LHi Capture Card

Overview

The most flexible card for analog and digital Standard and High Definition workflows.

Features

  • 2K/HD/SD up to 50/60p
  • 2x 3G-SDI spigots (In, Out) with 8-channel embedded audio
  • 2x HDMI 1.3 ports (In, Out) with 8-channel embedded audio
  • YCbCr 4:2:2 10-bit and HD HFR workflows supported
  • 10-bit LUT support (.cube)
  • Real time up, down and cross-conversion for HD and SD with pristine 10-bit quality
  • Compatible with leading creative apps
  • Includes support for Apple silicon
  • Supports AES and Analog Audio I/O for Telestream Wirecast

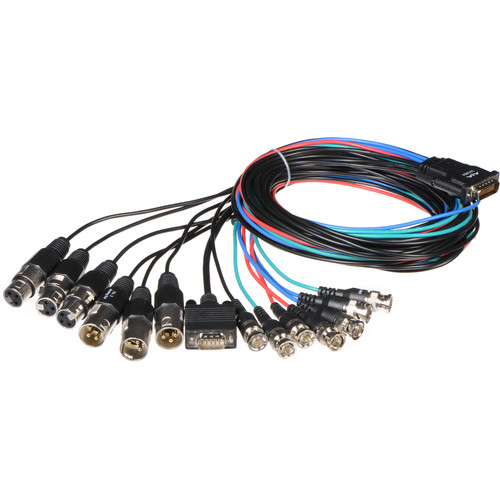

  • Included breakout cable for Ref (Analog or Tri-level), RS-422, 2-ch AES/EBU, Analog composite or S-video, or SD/HD component
  • Extend external connectivity with KLHi-BOX breakout box
  • Three year warranty

Flexible Workflows

KONA LHi provides a wide variety of formats, frame rates and audio/video sources for the connectivity you need. KONA LHi bridges the gap between analog devices and the latest 3G-SDI and HDMI-enabled products to provide editing, monitoring and mastering of professional quality video in an affordable, powerful, easy to use product.

Apple silicon Support

AJA Desktop Software is optimized for the latest Apple silicon with native support for AJA macOS drivers, application plug-ins, AJA Control Room, AJA Control Panel, and AJA System Test.

Versatile Connectivity

Connecting to everything from an HDMI-enabled camera to an HD-SDI VTR, KONA LHi offers a full host of no-compromise features, including 10-bit or 8-bit uncompressed video, 2-channel AES digital audio and 8-channel SDI embedded digital audio, analog composite or S-video or SD/HD component video I/O, and 2-channel balanced analog audio I/O.

AJA Hardware Conversion

KONA LHi features full 10-bit, broadcast quality, motion-adaptive SD to HD up-conversion, HD to HD cross-conversion, HD to SD down-conversion, and automatic HD/SD 12-bit component analog output. Since KONA LHi's conversions are hardware-based, they are available all the time - during ingest or playback.

Outputs can be configured independently allowing you to have simultaneous HD and SD output - or two different types of HD: 720 or 1080 - output at the same time via cross-conversion.

RS-422 Control

A 9-pin RS-422 connection available on either the included breakout cable or the optional KLHi-BOX breakout box, allows KONA LHi to take control of external devices for frame accurate ingest and layoffs.

Workflow

Supporting macOS, Windows and Linux, KONA LHi offers cost effective simple connectivity for a range of workflows.



View Workflow

HDMI Integration

KONA LHi's HDMI 1.3a support allows you to feed a "deep color" monitor with glorious 10-bit video, banishing video banding and preserving your gradients and rich color palette. Incoming HDMI signals can also be passed to KONA LHi's SDI output for use in more professional environments.

Extend Your Connectivity with KLHi-Box

The optional KHLi-Box breakout box lets you integrate KONA LHi easily into rack environments for quick access to all video and audio connections. Additional connectivity includes BNC digital AES/EBU connectors and RCA audio monitoring jacks.

View Connections





AJA DataCalc

AJA DataCalc is a mobile OS application for iOS, iPadOS and Android, offering two modes for storage and time calculations based upon raster, frame rate and codec choices.

DataCalc - Calculate your storage needs before capture.

TimeCalc – Calculate the run time of materials you can capture by storage size.

Share results with your team straight from the application.

Download from the App Store

Download from Google Play

Applications Compatibility

AJA Desktop products offer unparalleled workflow compatibility with a range of software applications that span production, post, and delivery, and more. Please click here for compatibility information.
