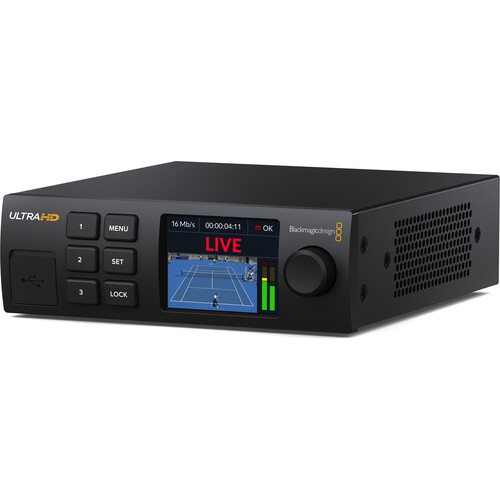

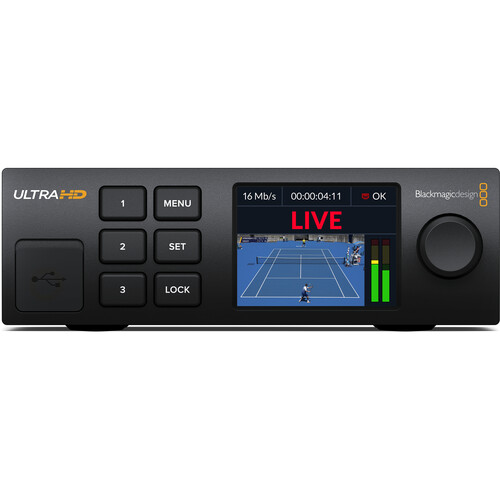

Blackmagic Streaming Decoder 4K

BlackmagicStreaming Decoder 4K

Key Features

• Decodes H.264 & H.265 to SDI & HDMI
• Camera Control, Talkback & Tally Support
• USB-C Ports for Phone Tethering
• Tethers to 4G & 5G Phones for Streaming
• Blackmagic Streaming Utility Software

The Blackmagic Design Streaming Decoder 4K is designed to convert H.264 or H.265 streams from the Streaming Encoder into SDI and HDMI video. A wide range of Blackmagic Design cameras, such as the Blackmagic Studio Camera Pro, PYXIS, URSA Cine, and URSA Broadcast G2, are equipped with built-in streaming capabilities, allowing users to stream directly from these cameras without the need for additional hardware, thus enabling point-to-point video transmission between remote locations. A 12G-SDI reference input enables users to connect SDI tally, camera control, and talkback and send these back to the encoder.

Both the front and rear panels of the decoder include USB-C connectivity for tethering high-speed 5G and 4G phones. In the event of an internet failure, the device automatically switches to the connected phone's data connection, although users can prioritize either the Ethernet or phone connection, as per their specific applications. For cameras without built-in streaming, the Blackmagic Streaming Encoder can be used, with control embedded in the encoder's SDI monitoring output, connecting to the SDI input of the Blackmagic camera. The ultraportable device is only 5.5" wide, allowing users to align it with up to two other optional devices on a rackmount unit, using only 1 RU of space. The decoder comes with the Blackmagic Streaming Utility software.

Key Specs

IP Video	H.264/H.265: 4096 x 2160 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Decoding
Video I/O	1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Input 2x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Output 1x HDMI (HDMI 2.0) Output
Embedded Audio	SDI Input: 16-Channel SDI Output: 16-Channel SDI Output: 2-Channel HDMI Output: 8-Channel LAN (RJ45)/USBShow More
Display	LCD

IP Encoding/Decoding

IP Video	H.264/H.265: 4096 x 2160 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Decoding
Transport Protocols	RTMP, SRT

Wireless

Wireless	No
Wi-Fi	No
Bluetooth	No
Cellular Support	5G NR / 4G LTE via Unspecified SIM Type
SIM Card Slots	Not Specified by Manufacturer

Interfaces

Video I/O	1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Input 2x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Output 1x HDMI (HDMI 2.0) Output
Other I/O	1x RJ45 Fast Ethernet Input/Output
Embedded Audio	SDI Input: 16-Channel SDI Output: 16-Channel SDI Output: 2-Channel HDMI Output: 8-Channel LAN (RJ45)/USB

Power

Power I/O

1x IEC C14 Input 1x Mini-XLR 4-Pin (12 VDC) Input

General

Operating Conditions	32 to 104°F / 0 to 40°C at 0 to 90% Humidity
Storage Conditions	-4 to 113°F / -20 to 45°C at 0 to 90% Humidity
Display	LCD
Rackmount Size	1 U
Dimensions	6.9 x 5.5 x 1.75" / 17.5 x 14 x 4.45 cm
Weight	1.66 lb / 753 g
