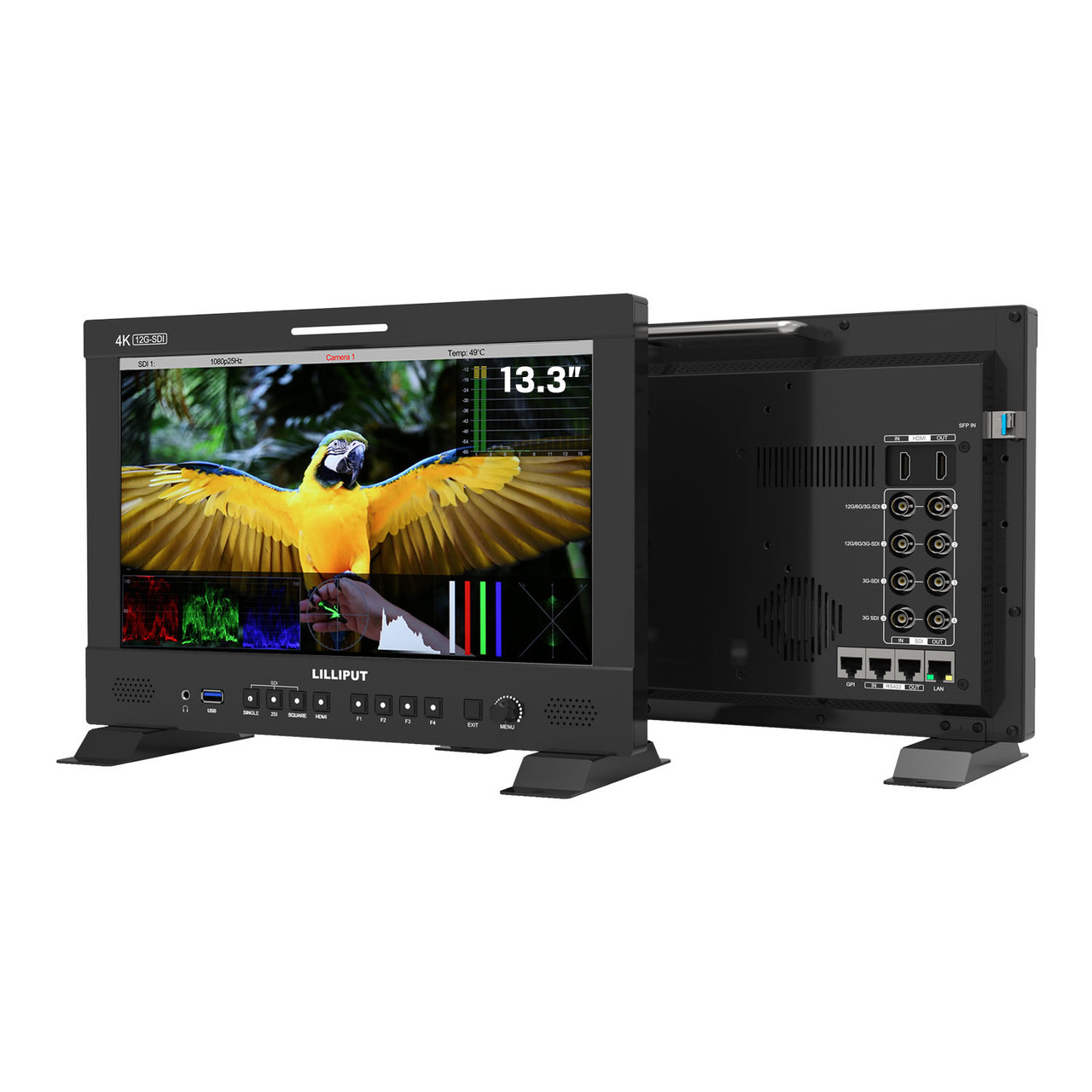

Q13 13.3" 12G-SDI studio / broadcast monitor
Lilliput Q13 is a professional studio monitor, packed with features and facilities for the professional photographer, videographer, or cinematographer. Compatible with a multitude of inputs – and featuring the option of a 12G SDI and 12G-SFP Fiber Optic input connection for broadcast quality monitoring, It also features Audio Vectoring using a Lissajous graph shape allowing you to visualize the depth and balance of a stereo recording. You also can connect your computer to control the monitor via applications.
Q13 13.3" 12G-SDI studio / broadcast monitor
Product Description
Q13 13.3" 12G-SDI studio / broadcast monitor
Lilliput Q13 is a professional studio monitor, packed with features and facilities for the professional photographer, videographer, or cinematographer. Compatible with a multitude of inputs – and featuring the option of a 12G SDI and 12G-SFP Fiber Optic input connection for broadcast quality monitoring, It also features Audio Vectoring using a Lissajous graph shape allowing you to visualize the depth and balance of a stereo recording. You also can connect your computer to control the monitor via applications.
| DISPLAY | Panel | 13.3" |
| Physical Resolution | 3840*2160 | |
| Aspect Ratio | 16:09 | |
| Brightness | 300 cd/m² | |
| Contrast | 1000:01:00 | |
| Viewing Angle | 178°/178°(H/V) | |
| HDR | ST2084 300/1000/10000/HLG | |
| Supported Log Formats | SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User… | |
| Look up Table(LUT)support | 3D LUT (.cube format) | |
| Technology | Calibration to Rec.709 with optional calibration unit | |
| VIDEO INPUT | SDI | 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link) |
| SFP | 1×12G SFP+(Fiber module for optional) | |
| HDMI | 1×HDMI 2.0 | |
| VIDEO LOOP OUTPUT | SDI | 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link) |
| HDMI | 1×HDMI 2.0 | |
| SUPPORTED FORMATS | SDI | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60… |
| SFP | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60… | |
| HDMI | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60… | |
| AUDIO IN/OUT (48kHz PCM AUDIO) | SDI | 16ch 48kHz 24-bit |
| HDMI | 8ch 24-bit | |
| Ear Jack | 3.5mm | |
| Built-in Speakers | 2 | |
| REMOTE CONTROL | RS422 | In/out |
| GPI | 1 | |
| LAN | 1 | |
| POWER | Input Voltage | DC 12-24V |
| Power Consumption | =31.5W (15V) | |
| Compatible Batteries | V-Lock or Anton Bauer Mount | |
| Input Voltage(battery) | 14.8V nominal | |
| ENVIRONMENT | Operating Temperature | 0C~50C |
| Storage Temperature | -20℃~60℃ | |
| OTHER | Dimension(LWD) | 340mm × 232.8mm × 46mm |
| Weight | 2.4kg |
