รายละเอียดสินค้า
Atomos Shogun Inferno 7" 4K HDMI/Quad 3G-SDI/12G-SDI
Recording Monitor with Accessory Kit
จำหน่าย จอมอนิเตอร์ Atomos Shogun Inferno 7" 4K HDMI/Quad 3G-SDI/12G-SDI Recording Monitor with Accessory Kit **ในราคาพิเศษ** มีของพร้อมขายไม่ต้องรอ! สามารถติดต่อสอบถามรายละเอียดเพิ่มเพิมได้ที่ โทรเลย 02-115-3366 , 094-636-4541, 083-656-3951 รายระเอียดเพิ่มเติม
PRODUCT HIGHLIGHTS
- 1920 x1200 Touchscreen Display
- 10-Bit FRC Monitor Processing
- 4K HDMI and 12G-SDI Inputs/Outputs
- 1500 cd/m² Brightness
- HDR Mode with 10-Stop Dynamic Range
- High Bright Mode for Rec. 709 Viewing
- UHD 4K up to 60p / 1080p up to 240 fps
- 10-Bit 4:2:2 ProRes & DNxHR Encoding
- Records to 2.5" SSD/HDD Media
- Dual Sony L-Series Battery Slots

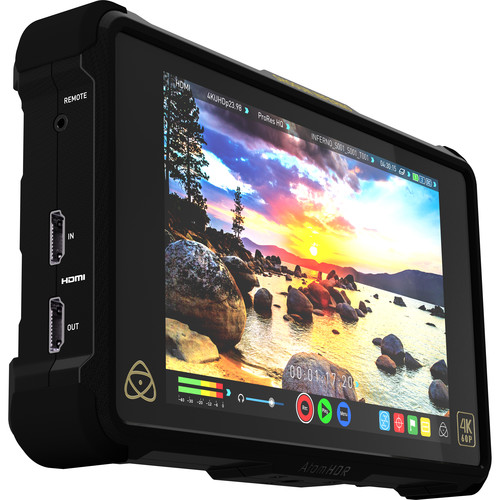

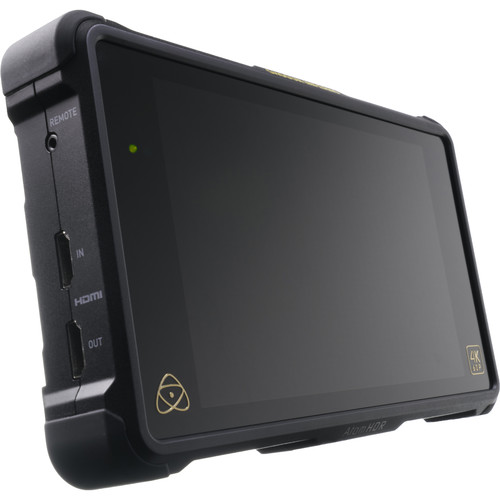

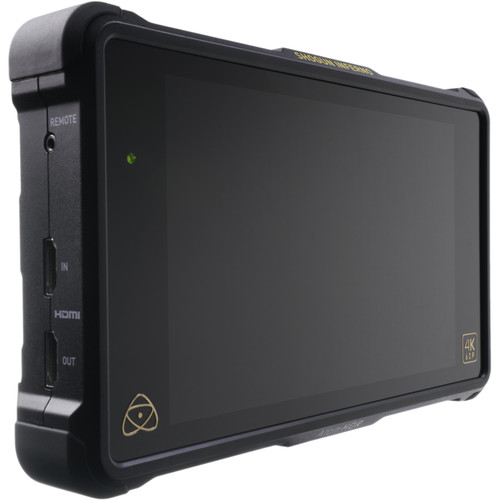

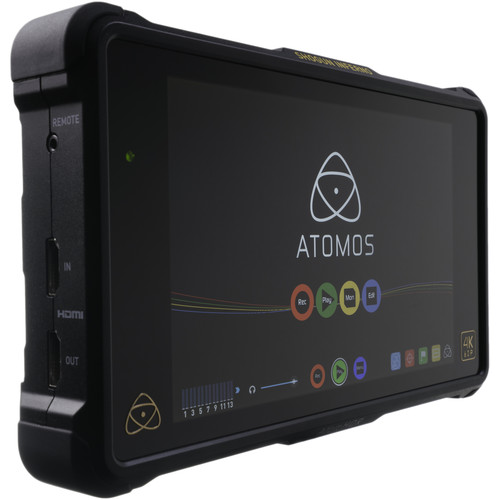

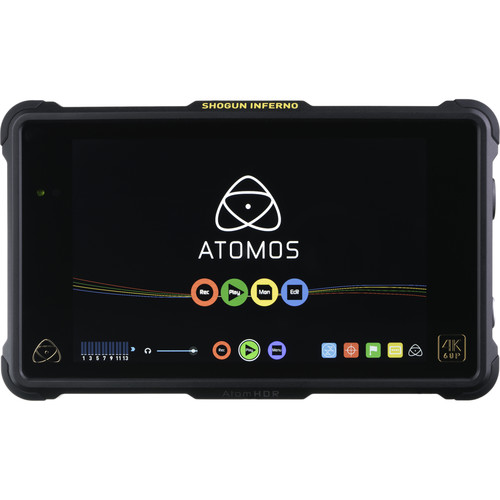

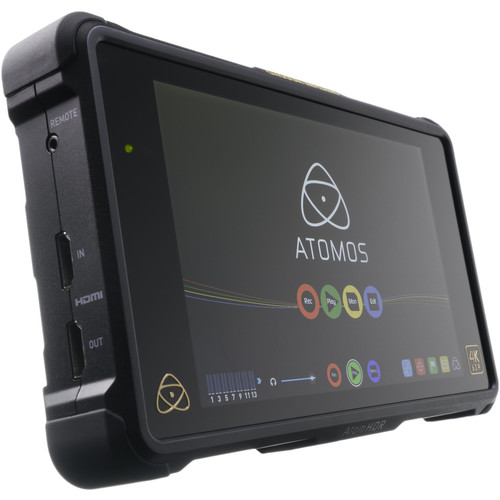

The Atomos Shogun Inferno is a 7", 1920 x 1200 on-camera recording monitor that combines 4K recording with a 10-bit FRC panel that supports native display of HDR (log) footage as well as high brightness viewing of Rec. 709 footage. The included accessory kit includes a sunhood, two NP-F750 batteries, fast charger, D-tap power cable, control cable, USB 3.0 docking station, four additional Master Caddy SSD/HDD cases for a total of five, and a custom HPRC hard case. It utilizes 4K HDMI and 12G-SDI inputs to support clean output signals at resolutions up to UHD 4K (3840 x 2160) at 60 fps, recording it to 2.5" SSDs using 10-bit, 4:2:2 Apple ProRes and Avid DNxHR codecs. The Inferno, unlike the similar Shogun Flame, supports Quad 3G-SDI input. It even supports DCI 4K (4096 x 2160) raw video streams over SDI from select Sony and Canon cameras, encoding it as ProRes/DNxHR files.
The monitor features 10-bit FRC processing and AtomHDR display technology support a 10-stop brightness range, allowing you to more accurately monitor your log gamma footage without having to view flat, washed-out looking images or use a LUT to compress the dynamic range and color space. The monitor offers built-in pre-sets to accurately translate popular log formats from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras. The settings only affect viewing, with recorded video remained unaltered.
In addition to HDR monitoring, the monitor also offers a High Bright mode for traditional Rec. 709 monitoring. This mode takes advantage of the full 1500 cd/m² brightness to allow for more confident monitoring in bright outdoor environments, even without a sun hood. In HDR mode, use of an included snap-on sun hood is required, as displaying a wider brightness range reduces the overall brightness of the monitor.
Built to withstand the rigors of production, the Shogun Inferno features built-in protective armor that features silicone-covered corners and chamfered edges. Compared to the original Shogun, the Inferno now features dual Sony L-Series battery plates that support battery hot-swapping, enabling longer run times. For audio recording, the monitor supports balanced XLR inputs with +48V phantom power via an included audio breakout cable. Additional features included genlock/LTC input, SDI/HDMI cross-conversion, and a variety of onscreen exposure analysis, framing, and focus assist tools.
Monitor
- 1920 x 1200 resolution
- 10-bit FRC monitoring processing
- 1500 cd/m² brightness
- AtomHDR technology displays 10 stops of dynamic range to natively display HDR (log) footage
- Presets for viewing log gamma curves from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras
- High Bright mode for Rec. 709 viewing
- Supports custom 3D LUTs (.cube format)
- Anamorphic De-Squeeze: 2x, 1.5x, 1.33x, Panasonic 8:3
- 4K UHD downscale for HD monitoring
Input/Output
- 4K HDMI and 12G-SDI inputs/outputs
- 4x 3G-SDI inputs (or single 12G-SDI)
- SDI/HDMI cross-conversion
- Genlock/LTC input
- Audio breakout cable for XLR audio input
Recording
- UHD 4K recording at 24/25/30/50/60 fps in ProRes or DNxHR
- 1080p recording up to 240 fps
- 10-bit 4:2:2 ProRes and DNxHR recording to SSD/HDD media
- 4K raw to ProRes/DNxHR recording over SDI from Sony FS700, Sony FS7, Canon C300 Mark II, and Canon C500
- Pre-roll record (HD 8 seconds, 4K 2 seconds)
- Custom time-lapse mode
- 10 metadata fields
Additional Features
- Dual Sony L-Series battery slots support hot-swappable for continuous power
- Built-in armor with silicone-covered corners
- Audio level meters and mic level adjustment
- Snap-on sun hood
- Two NP-F750 batteries and fast charger included
- Custom HPRC hard case
Atomos ATOMSHGIN1 specs
Display
| Type | 7.1" (18 cm) IPS capacitive touchscreen |
| Resolution | 1920 x 1200 325 ppi |
| Bit Depth | 10-bit (8-bit plus FRC) |
| Video Aspect Ratio | Native: 16:9 |
| Brightness | 1500 cd/m² |
| LUT Support | 3D LUT (.cube file format) |
Interface
| Inputs | 1 x HDMI (2.0) 4 x 3G-SDI Groped/Single 12G-SDI (BNC) - 1 x Genlock / LTC (BNC) 1 x 2.5 mm LANC 2 x XLR (included LEMO breakout cable required) |
| Outputs | 1 x HDMI (2.0) 1 x 12G-SDI (BNC) 2 x XLR Out (included LEMO breakout cable required) 1 x 3.5 mm headphone jack |
Supported Video Format
| Supported Signal | Input: 10- / 8-bit 4:2:2 (dependent on video source) Output: 10- / 8-bit 4:2:2 (dependent on video source) |
| Input/Output Resolutions | HDMI: 2160p 24/25/30/50/60 1080p 24/25/30/50/60/120/240 1080i 50/60 720p 50/60 SDI: 2160p 24/25/30/50/60 1080p 24/25/30/50/60/120 1080psf 24/25/30 1080i 50/60 720p 50/60 |
| Video Signal Conversion | HDMI to SDI: 2160p 24/25/30/50/60 1080p 24/25/30/50/60/100/120/ 1080i 50/60 720p 50/60 SDI to HDMI: 2160p 24/25/30/50/60 1080p 24/25/30/50/60/100/120 1080i 50/60 720p 50/60 |
| Encoding Formats | DCI RAW 4096x2160 from supported cameras (Sony FS700, Sony FS7, Canon C300 MKII, Canon C500): Apple ProRes HQ, 422, LT DNxHR HQX, HQ, SQ, LB UHD 4K (3840 x 2160): Apple ProRes HQ, 422, LT DNxHR HQX, HQ, SQ, LB 1920 x 1080 Apple ProRes HQ, 422, LT DNxHD 220x, 220, 145, 36 |
| Pulldown Conversion | 24/25/30psf to 24/25/30p (2:2 pulldown) 60i to 24p (3:2 pulldown) |
| Supported Codecs | Raw to ProRes/DNxHR Apple ProRes: HQ, 422, LT AVID DNxHR: HQX. HQ, SQ, LB Frame Rates 4K DCI / 4K UHD: 24/25/30/50/60p SF:30/50/60/100/120/200/240p Video to ProRes/DNxHR Apple ProRes HQ, 422, LT AVID DNxHR HQX. HQ, SQ, LB Frame Rates 4K DCI / 4K UHD: 24/25/30/50/60p SF:30/50/60/100/120/200/240p |
Supported Audio Formats
| HDMI | 2- or 8-channel, up to 24-bit (camera dependent) |
| SDI | Up to 12-channel, 48 kHz, up to 24-bit (camera dependent) |
| Dynamic Range | > 90 dB |
| Signal Level | Maximum: +24 dBu |
| Gain | Maximum Analog Gain: +52 dB |
| Phantom Power | +48 V phantom power for XLR inputs |
Recording Media
| HDMI | Auto HDMI trigger Supported Protocols: Canon, Sony, Atomos Open Standard |
| SDI | SDI trigger camera selectable |
| LANC | Supports slave configuration |
Recording Media
| Supported Media | 4K 2.5" SSD HD High Frame Rate (50/60/120p): 2.5" SSD 2.5" HDD (7,200 rpm and up) for 1080p 50/60 HD (30p and less): 2.5" SSD 2.5" HDD (5,400 rpm and up) Note: Only use media that has been approved by Atomos |
| Master Caddy Dock | Interface: 2.5" SATA to USB 2.0/3.0 |
| Supported Applications | Final Cut Pro X/7+ Avid Media Composer 5.0+ Adobe Premiere 5.5+ Grass Valley EDIUS 6.0+ Sony Vegas Pro 10+ Lightworks Autodesk Smoke 2015 |
| XML Support | FCPX XML native, FCP7 supported with conversion (Adobe compatible) |
General
| Power Requirements | 6.2 to 16.8 VDC (battery or DC power input) |
| Power Consumption | 10 to 24 W |
| Supported Battery Types | 2 x Sony L-series |
| Battery Life | 5200 mAh: up to 1.5 hours (monitor and record 4K) 7800 mAh: up to 2.2 hours (monitor and record 4K) |
| Construction | ABS polycarbonate |
| Dimensions | 8.4 x 5 x 1.8" (21.4 x 12.7 x 4.5 cm) |
| Weight | Without Batteries & Media: 1.4 lb (0.65 kg) With Batteries & Media: 2.4 lb (1.09 kg) |
