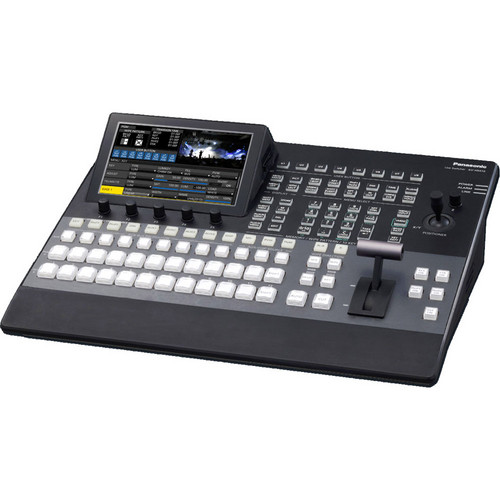

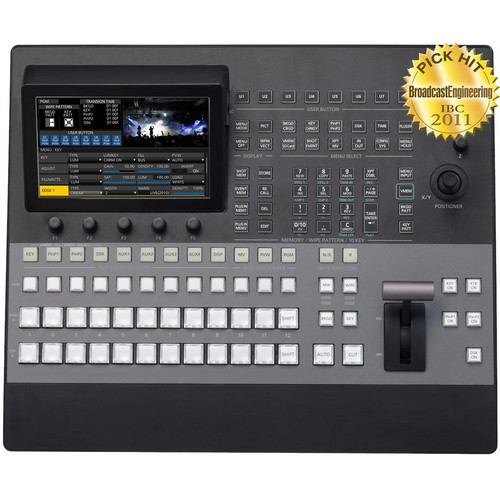

Switcher Panasonic รุ่น AV-HS410E HD / SD Multi-Format Live Switcher

Video Inputs

Standard SDI: 8 signal lines, BNC x 8 (SDI INPUT 1 to SDI INPUT 8)
Up-converter function for SDI INPUT 5 to SDI INPUT 8 connectors
Standard DVI-D: 1 signal line, DVI-D x 1
Optional: Up to 4x additional signal lines (IN A1, IN A2, IN B1, IN B2)
Up to 2 option boards can be installed in the 2 input / output slots

Video Outputs

Standard SDI: 5 signal lines, BNC x 6 (SDI OUTPUT 1 to SDI OUTPUT 5 x 1 line each, 2x distributed outputs for SDI OUTPUT 1 only)
Standard DVI-D: 1 signal line, DVI-D x 1
Optional: Up to 4x additional lines (OUT A1, OUT A2, OUT B1, OUT B2):
PGM, PVW, AUX1 to AUX4, MV (MULTI_VIEW), CLN, KEYOUT and MEM PVW can be assigned to SDI OUTPUT 1 to SDI OUTPUT 5, DVI-D OUT, OUT A1, OUT A2, OUT B1 and OUT B2
CLN can be pre-selected from KEY or DSK using menu
Up to 2x option boards can be installed in the 2 input / output slots

Signal Format

SD: 480 / 59.94i, 576 / 50i
HD: 1080 / 59.94i, 1080 / 50i, 720 / 59.94p, 720 / 50p, 1080 / 24PsF, 1080 / 23.98PsF

Signal Processing

Y: PB: PR 4: 2: 2, 10 bit (8 bit for video memory), RGB 4:4:4, 8 bit

ME Number

1 ME

SDI Input

HD-SDI: HD Serial digital (SMPTE 292M)
SD-SDI: SD Serial digital (SMPTE 259M)
8 signal lines, standard: IN1 to IN8
12 signal lines, maximum: IN A1, IN A2, IN B1, IN B2 (when 2 boards used, with active through)
HD: SMPTE 292M (BTA S-004B) standard compliant:
0.8 V [p-p] ±10 % (75 Ω)
Automatic equalizer More than 328' (100 m) ((when 1.5 Gbps / 5C-FB cable is used)
SD: SMPTE 259M standard compliant:
0.8 V [p-p] ±10 % (75 Ω)
Automatic equalizer 656' (200 m) (when 5C-2V cable is used)

SDI Output

HD-SDI: HD Serial digital (SMPTE 292M)
SD-SDI: SD Serial digital (SMPTE 259M)
5 signal lines, standard: OUT1 x 2; OUT2 to OUT5 x 1 each
9 signal lines, maximum: OUT A1, OUT A2, OUT B1, OUT B2 (when 2x AV-HS04M7 boards are used)
HD: SMPTE 292M (BTA S-004B) standard compliant:
Output level 0.8 V [p-p] ± 10 %
Rise time HD: Less than 270 ps
Fall time HD: Less than 270 ps
Difference between rise time and fall time: HD - less than 100 ps
Alignment jitter HD: Less than 0.2 UI (130 ps)
Timing jitter HD: Less than 1.0 UI
Eye aperture ratio More than 90 %
DC offset 0 ±0.5 V

SD: SMPTE 259M standard compliant:
Output level 0.8 V [p-p] ±10 %
Rise time Less than 1.5 ns
Fall time Less than 1.5 ns
Difference between rise time and fall time: Less than 0.5 ns
Jitter: Less than 0.2 UI

Analog Composite Input

Option board:
Analog composite signal (NTSC/PAL) (1.0 V [p-p], 75 Ω)
4 signal lines, maximum: IN A1, IN A2, IN B1, IN B2 (when 2x AV-HS04M6 boards are used; with loop-through)

Analog Input

Option board:
SD / HD analog component Y/PB/PR (1.0 V [p-p], 75 Ω)
4 signal lines, maximum: IN A1, IN A2, IN B1, IN B2 (when 2x AV-HS04M2 boards are used)

Analog Output

Option board:
SD / HD analog component Y/PB/PR (1.0 V [p-p], 75 Ω)
4 signal lines, maximum: OUT A1, OUT A2, OUT B1, OUT B2 (when 2x AV-HS04M4 boards are used): 2 signal lines (OUT A1, OUT B1) when 2x AV-HS04M5 boards are used

DVI-I Input

Option board:
Analog / digital RGB:
XGA (1024 x 768), WXGA (1280 x 768), SXGA (1280 x 1024)
Vertical frequency: 60 Hz
Connector does not support HDCP technologies
4 signal lines, maximum: IN A1, IN A2, IN B1, IN B2 (when 2x AV-HS04M3 boards are used)

DVI-I Output

Option board:
Analog / digital RGB:
XGA (1024 x 768), WXGA (1280 x 768), SXGA (1280 x 1024)
WSXGA+ (1680 x 1050), UXGA (1600 x 1200), WUXGA (1920 x 1200)
Vertical frequency: 60 Hz
Connector does not support HDCP technologies
2 signal lines, maximum: OUT A2, OUT B2 (When 2x AV-HS04M5 boards are used)

DVI-D Input

Digital RGB:
XGA (1024 x 768), WXGA (1280 x 768), SXGA (1280 x 1024)
WSXGA+ (1680 x 1050), UXGA (1600 x 1200), WUXGA (1920 x 1200)
Vertical frequency: 60 Hz
Video format inputs:
Digital RGB: 1080 / 50p, 1080 / 59.94p
Vertical frequency: Same as system formats
Input of analog signals not supported
Standard input: 1 line DVI-D IN

Option board:
Digital RGB:
XGA (1024 x 768), WXGA (1280 x 768), SXGA (1280 x 1024)
WSXGA+ (1680 x 1050), UXGA (1600 x 1200), WUXGA (1920 x 1200)
Vertical frequency: 60 Hz
Digital RGB: 1080 / 50p, 1080 / 59.94p
Analog input signals not supported
Connector does not support HDCP technologies
4 signal lines, maximum: IN A1, IN A2, IN B1, IN B2 (When 2x AV-HS04M8 boards are used)
DVI-I connector cable cannot be used
For DVI-D connector cable, use a cable with length of up to 16.4' (5.0 m)

DVI-D Output

Digital RGB: 1080 / 50p, 1080 / 59.94p, 1080 / 50i, 1080 / 59.94i, 720 / 50p, 720 / 59.94p
Output of analog signals not supported
Output supports high-resolution multi view mode:
Signals output at high resolution even when SD is set as system mode
When high-resolution multi view mode enabled, MV selected as DVI-D output, and it is not possible to select MV with SDI OUT
Connector does not support HDCP technologies
Standard output: 1 line DVI-D OUT
DVI-I connector cable cannot be used
For DVI-D connector cable, use a cable with length of up to 16.4' (5.0 m)

Reference

Input / Output:
In GENLOCK mode: Black burst or Tri-level Sync input signals (with loop-through)
In internal sync mode: Black burst output signals x 2
Same field frequencies as those of system formats supported
With 1080 / 24PsF format, only GENLOCK mode supported
With the 1080 / 23.98PsF format, black burst with 10F-ID (SMPTE318M standard met) or TRI signals supported

Video Delay

1 line (H) when frame synchronizer setting is "Off" and up-converter setting is "Off"
1 frame (F) when frame synchronizer setting is "On" or up-converter setting is "On"
When signals have passed through PinP, DVE, multi view, down-converter, DVI-IN or DVI-OUT, max delay of 1 frame is applied in each case

Control I/O

LAN:

RJ-45
LAN 10BASE-T/100BASE-TX (For IP control)
Connecting cable: LAN cable (category 5 or above), max. 328' (100 m), STP (Shielded Twisted Pair) cable recommended
When connecting to switching hub, use straight cable
Use crossover cable when connecting unit and PC on 1:1 basis without going through hub
Use with same segment recommended for equipment connected to unit
If unit connected to equipment with different segments, events dependent upon settings inherent to network equipment may occur
EDITOR:
D-sub, 9-pin, female
EDITOR Used to control an editor
RS-422 control connector
Communication format:
Baud rate: 38400 bps, Character length: 8 bit, Parity: Odd
Stop bit: 1 bit, Flow control: None

COM:
D-sub, 9-pin, female
COM Used to control an external device RS-422 control connector
Communication format (selected using a menu):
Mode: 1 (default setting), Baud rate: 9600 bps, Character length: 8 bit
Parity: None, Stop bit: 1 bit, Flow control: None
Mode: 2, Baud rate: 38400 bps, Character length: 8 bit, Parity: Odd
Stop bit: 1 bit, Flow control: None
Mode: 3, Baud rate: 38400 bps, Character length: 8 bit, Parity: None
Stop bit: 1 bit, Flow control: None

TALLY / GPI 1, TALLY / GPI 2: 2x D-sub, 15-pin, female
Input: 8x inputs, general-purpose, photocoupler sensing
Output: 19x outputs; selected from R / G tally, general-purpose
Alarm: 1x output, open collector output (negative logic)

Booting

BOOT switch [SV / NM (service / normal) ] for maintenance purposes
Normally, switch is used as "NM" position

# Of Buses and Type

2x P-in-P
4x Aux

Memory Card Slot

1x SDHC / SD slot

Frequency

59.94 /50 /24 Hz switchable

LCD

7.0" (17.8 cm) color monitor with WVGA (800 x 480) resolution

Power Requirement

AC 100 - 240 V, 50 / 60 Hz, 88 W

Operating Temperature

32 - 104° F (0 - 40° C)

Operating Humidity

10 - 90% (no condensation)

Dimensions (WxHxD)

17.3 x 6.2 x 14.2" (44 x 15.8 x 36.1 cm) excluding protrusions

Weight

Approx. 13.7 lb (6.2 kg) excluding accessory parts when no options installed
Approx 14.6 lb (6.6 kg) excluding accessory parts when all possible options installed

Packaging Info

Package Weight

20.2 lb

Box Dimensions (LxWxH)

21.6
