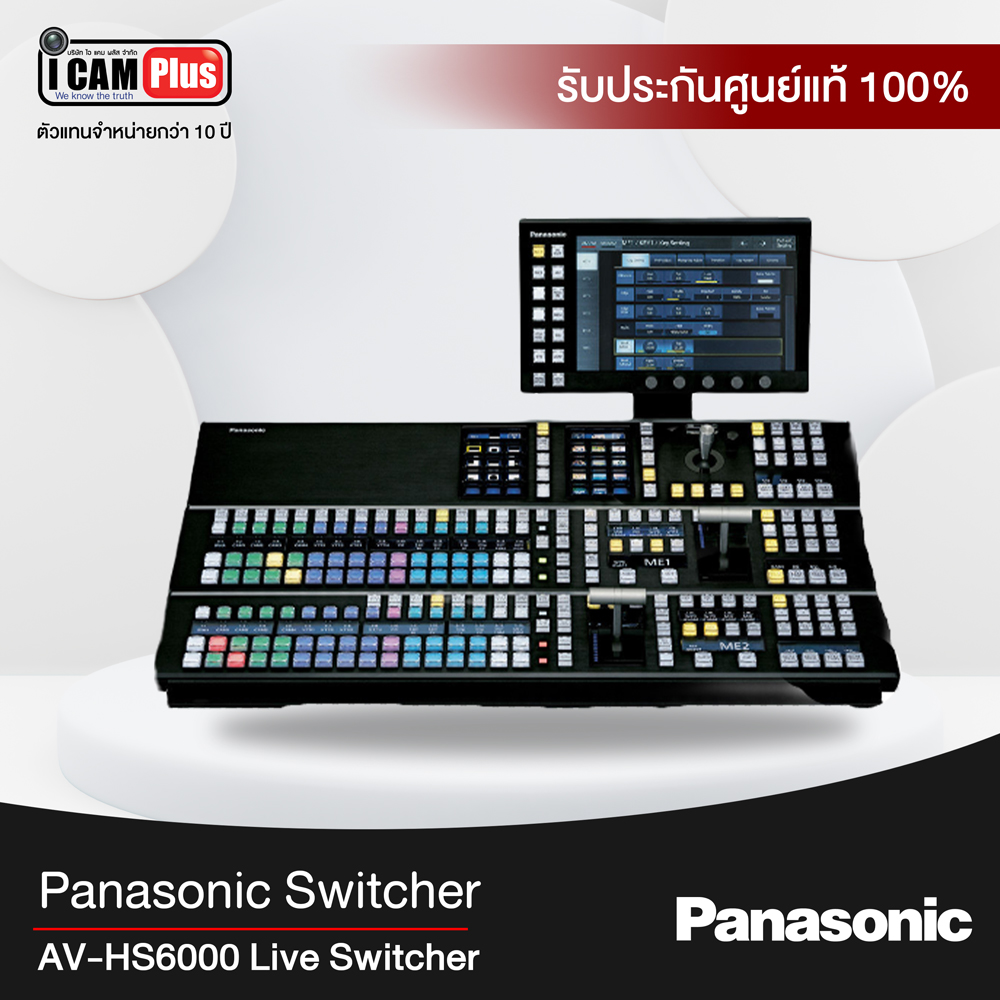

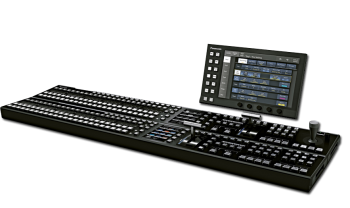

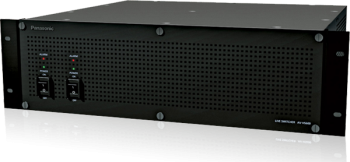

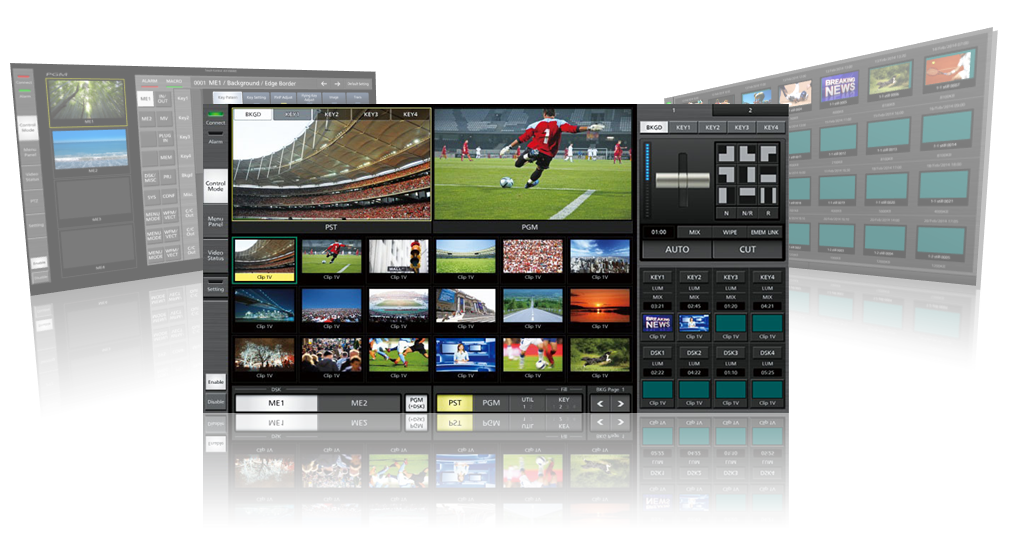

Switcher Panasonic รุ่น Panasonic AV-HS6000 2 M/E Live Switcher

SDI Input

Lines: 32
Connectors: 32 x BNC female
SDI channels 27, 28, 31, and 32 are equipped with up-converters
SDI channels 25 to 32 are equipped with color correctors

Signal Standards HD-SDI
SMPTE292M (BTA S-004) standard compliant
0.8 V (p-p) ±10% at 75 ohm
Automatic equalizer for runs more than 328' (100 m) -- when 1.5 Gbps/5C-FB cable is used

Signal Standards SD-SDI
SMPTE259M standard compliant
0.8 V (p-p) ±10% at 75 ohm
Automatic equalizer for runs more that 656' (200 m) -- when 5C-2V cable is used

DVI Input

Lines: 2
Connectors: 2 x DVI-D
Supported Resolutions (Computer): XGA (1024 x 768), WXGA (1280 x 768), SXGA (1280 x 1024), WSXGA+ (1680 x 1050), UXGA (1600 x 1200), WUXGA (1920 x 1200)
Vertical Frequency (Computer): 60 Hz Supported Video Formats: 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p

Note:
Cable lengths up to 16.4' (5 m) are supported
A DVI-I cables are not supported
HDCP is not supported

SDI Output

Lines: 16 -- two distributed outputs per line
Connectors: 32 x BNC female
Assignments: ME1PGM, ME1PVW, ME1CLN, ME1KEYPVW, ME2PGM, ME2PVW, ME2CLN, ME2KEYPVW, DSKPGM1, DSKPGM2, DSKPVW1, DSKPVW2, DSK1CLN, DSK2CLN, DSK3CLN, DSK4CLN, SEL KEYPVW, MV1 to MV4, and AUX1 to AUX16

Signal Standards HD-SDI
SMPTE292M (BTA S-004) standard compliant
0.8 V (p-p) ±10% at 75 ohm

Signal Standards SD-SDI
SMPTE259M standard compliant
0.8 V (p-p) ±10% at 75 ohm

Video Formats

SD: 480/59.94i, 576/50i
HD: 1080/59.94i, 1080/50i, 720/59.94p, 720/50p, 1080/24PsF, 1080/23.98PsF, 1080/25PsF

Signal Processing

Y: PB: PR: 4:2:2, 10-bit
R:G:B: 4:4:4: 8-bit

Mix / Effect Buses

2 ME

Synchronous Terminal

Reference Input

Connectors: 2 x BNC female -- input with loop-through

Supports same field frequencies as those of the system formats supported:
In Genlock Mode: Black burst or tri-level sync (with loop-through)

Note:
If the loop-through output is not used, 75 ohm termination is required
In the 1080/24PsF and 1080/23.98PsF formats, only Genlock mode supported In the 1080/23.98PsF format, black burst signals with 10 Field ID (SMPTE318M compliant) or Tri-level Sync signals are supported
In the 1080/24PsF format, Tri-level sync signals supported
In internal sync mode black burst signal is output through both connectors

LTC Input

Connector: BNC female
Impedance: 1 kohm
Level: 1 to 2 V (p-p)

Video Delay

1 Line (H): When the frame synchronizer is set to "Off" and the upconverter is set to "OFF"
1 Frame (H): When the frame syncronizer is set to "ON", or the upconverter is set to "ON"

Note:
When the signals have passed through PinP, DVE, MultiView, down-converter, or DVI-IN, a maximum delay of 1 frame is applied in each case

Control Terminal

LAN Terminal

Connector: 1 x RJ-45
Compatible with 100Base-TX and AUTO-MDIX -- for IP control
Supported Cable: CAT5E or better, up to 328' (100m) -- STP (Shielded Twisted Pair) cable recommended

PANEL Terminal

Connector: RJ-45
Compatible with 100Base-TX and AUTO-MDIX -- for Control Panel (AV-HS60C1/AV-HS60C2) connection
Supported Cable: CAT5E or better, up to 328' (100m) -- STP (Shielded Twisted Pair) cable recommended

Serial Interface

Connectors: 4 x D-sub 9-pin female
Terminals 1 to 3: For master connection to control external devices
Terminal 4: For master/slave connection to control external devices

GPI In/Out

Connectors: 3x D-sub 25-pin female

Terminal 1
GPI Input: 18 inputs, general-purpose, photocoupler sensing
Alarm Output: 1 output, open collector output (negative logic)

Terminal 2 and 3
GPI Output: 48 outputs, selectable general purpose or tally -- open collector output

General

Power Requirements

100 to 240 VAC at 50 or 60 Hz

Power Consumption

110 W

Operating Temperature

32 to 104°F (0 to 40°C)

Storage Temperature

32 to 104°F (0 to 40°C)

Operating Humidity

10 to 90% RH, no condensation

Storage Humidity

10 to 90% RH, no condensation

Dimensions

19 x 5.2 x 16.5" (482 x 132 x 418 mm)

Weight

29.7 lb (13.5 kg) -- excluding accessories

Power Supply

100 - 240 VAC, 50/60 Hz (supports dual redundant power supply)

Connections

1x RJ-45
1x DVI-D for optional Menu Panel only (cannot be used concurrently with a DVI-D monitor connected to the DVI-D terminal)
1x DVI-D for displaying menus to the DVI monitor (cannot be used concurrently with the Menu Panel terminal)
1x USB type A, female for DVI monitor menu operation
1x RS-422 control terminal, D-sub 9-pin female (for master connection for controlling external devices)
1x RS-232 control terminal, D-sub 9-pin female (for master/slave connection for controlling external devices)
8x GPI inputs D-sub 25-pin female
10x GPI outputs D-sub 25-pin female
1x Alarm output D-sub 25-pin female

Power Consumption

40 W

Operating Temperature

32 to 104°F (0 to 40°C)

Storage Temperature

32 to 104°F (0 to 40°C)

Operating Humidity

10 to 90% (no condensation)

Storage Humidity

10 to 90% (no condensation)

Dimensions

38.6 x 6 x 10.5" (98 x 15.3 x 26.7 cm)

Weight

Approx. 31 lb (13.9 kg) (excluding accessories)
