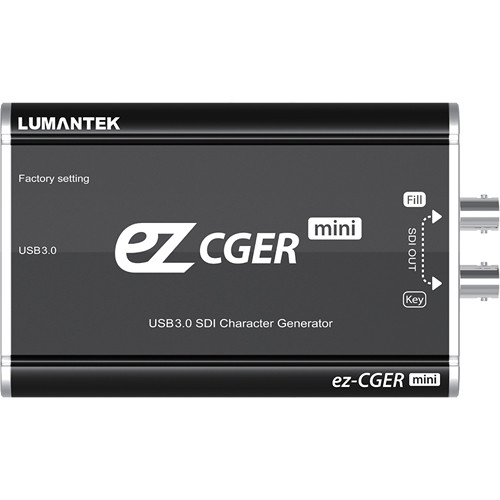

Lumantek ez-CGER mini Live HD-SDI USB Fill/Key and CG Generator with CGER Software





USB 3.0 Input

Fill/Key SDI Outputs

Supported Resolution up to 1080i60

No Power Connection Needed



The ez-CGER mini Live HD-SDI USB Fill/Key and CG Generator from Lumantek is a simple and small HD live graphic system for live conferences and active video presentations. Create and present on-screen CG and texts in real-time using the generator and CGER software via the USB 3.0 port, and generate Fill/Key signals to the HD-SDI port.

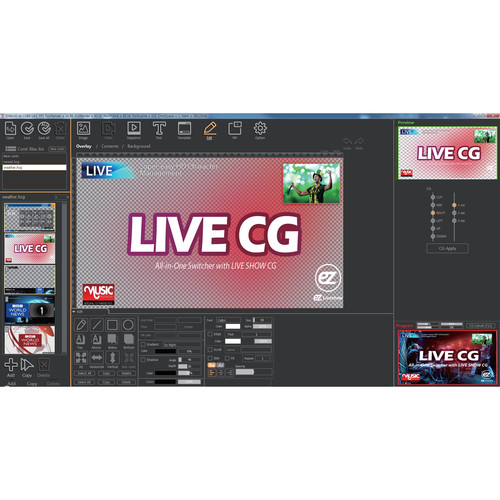

Complimentary ez-CGER CG software for Windows OS

User friendly interface

Insert texts, images, sequences, videos, and widgets

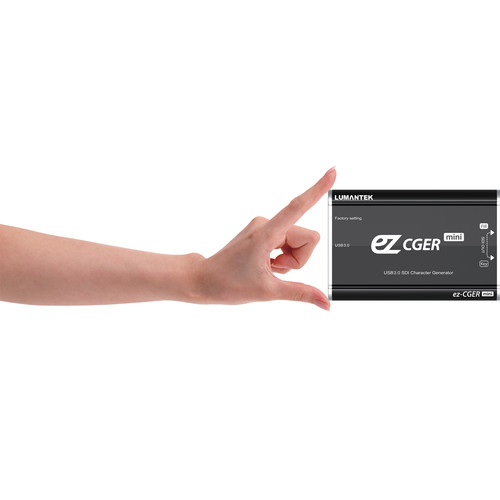

Mini converter type

No power connection needed

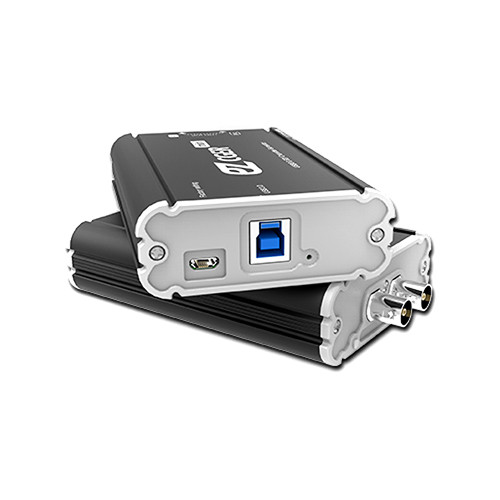

Input 1 x USB 3.0, Fill/Key port

Output 1 x BNC, HD-SDI Fill

1 x BNC, HD-SDI Key

USB Device Support USB 3.0 Video Streamer Device: Fill & Key input

USB 2.0 to Serial (COM Port) Device: Control

USB 2.0 to SPI Device: Firmware update

Internal Video Processing YCbCr 4:2:2 10-bit

Supported Resolution 1280 x 720p: 60/59.94/50

1920 x 1080i: 60/59.94/50

Supported Image Formats JPG, PNG, BMP, GIF, and TGA

Supported Video Formats WMV, AVI, and MP4

Management USB: Easy to use GUI application, Firmware update

Operating Temperature 32 to 104°F / 0 to 40°C

Dimensions (H x L) 3 x 4.5" / 76 x 115 mm

Weight Not specified by manufacturer

Package Weight 1.2 lb

Box Dimensions (LxWxH) 8.2 x 6.0 x 3.7"
