Lumantek BAT Distributor SDI Distribution 1x6 converter



With its size of a mini converter, the BAT Distributor can take in 1 video source and multiply it by 6 output channels.

It functions with SD/HD/3G-SDI resolutions with 2 watts of power consumption.

1 to 6 Video Distribution

With BAT Distributor, you can multiply your video 6 times. This configuration is perfect when you need to send the same video signal to many monitors.

Re-Clocking and Amplification

Video signals going through BAT Distributor are amplified and sent out. Meaning, the signals can reach further cable distances from where the BAT Distributor is positioned.

Low Power Consumption

BAT Distributor operates with 2 watts of power making the maximum heat produced to be 50 degrees Celcius.



Input Ports

Video:

1 x SDI

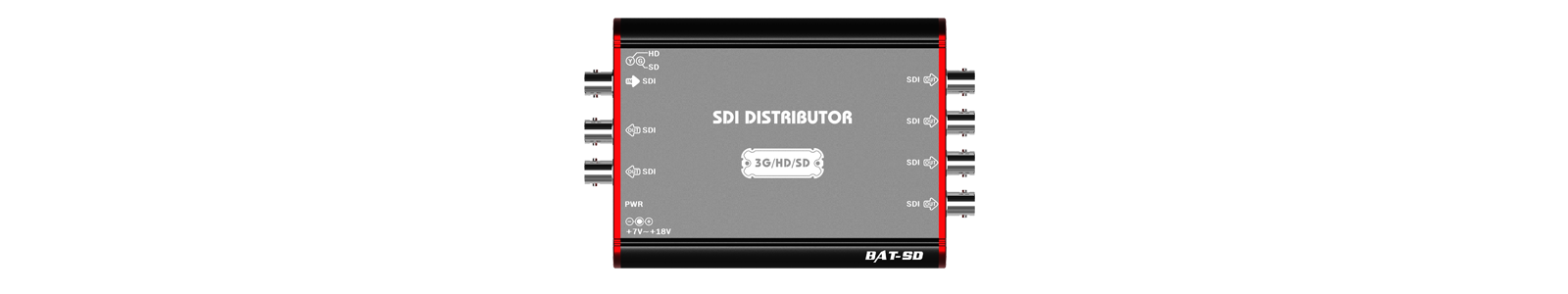

BAT Distributor [BAT-SD]

Output Ports

Video:

6 x SDI

Easy Distribution

LUMANTEK's BAT Distributor is a converter sized distributor which provides great mobility to the user. Pretty simply designed, BAT Distributor will be a handy device to share your videos to many screens.



Input Electrical Specs

  Parameter Units Min. Typ. Max

 SDI Input Cable Lengths

 SD-SDI (Belden 1694A) 250 m

 HD-SDI (Belden 1694A) 170 m

 3G-SDI (Belden 1694A) 155 m

 RF Input

 Connector (1port) 75 Ohm, 1 x BNC type female

 Display

 Input SDI Detect SD(Green), HD,3G (Yellow)





Parameter Min. Max. Units Typ.

Rise/Fall time SD-SDI: rise/fall time (20-80%)ps 600

  HD-SDI: rise/fall time (20-80%)ps 100

  3G-SDI: rise/fall time (20-80%)ps 100

SD/ HD/ 3G-SDI 720 880 mVpp 800

Overshoot / Undershoot SD/ HD/ 3G-SDI -10 +10 %

RF Input Connector (1port) 75ohm, 1 x BNC type female



Parameter Min. Max. Units Typ.

DC Input Power 7 18 V

Lowest Power Consumption 2 W

Dimensions 131 x 99 x 28.4 (except connector )mm

Weight 370g
