Atomos Shinobi 5.2" 4K HDMI Monitor
| รหัสสินค้า | SKU-00441 |
| หมวดหมู่ | ATOMOS PRODUCT |
| ราคา | 0.00 บาท |
| VAT7% | กรุณาติดต่อสอบถาม |
| สถานะสินค้า | พร้อมส่ง |
| ลงสินค้า | 17 ก.ค. 2562 |
| อัพเดทล่าสุด | 31 ส.ค. 2566 |
| คงเหลือ | ไม่จำกัด |
| จำนวน | ชิ้น |
หยิบลงตะกร้า
Tags : Atomos Shinobi 5 inch, 4K HDMI Monitor, Atomos, shinobi, atomos shinobi ราคา, ATOMSHB, Monitor 5 นิ้ว 4k, จอมอนิเตอร์ 5 นิ้ว, จอมอนิเตอร์ HDMI 4k, Shinobi 4k, atomos 4k moniter, atomos hdmi 4k moniter
รายละเอียดสินค้า
1920 x 1080 Touchscreen Display
10-Bit Exterior Viewable Monitor
4K HDMI Input
Atomos Shinobi 5.2" 4K HDMI Monitor
Key Features
- 1920 x 1080 Touchscreen Display
- 10-Bit Exterior Viewable Monitor
- 4K HDMI Input
- 1000 cd/m² Brightness

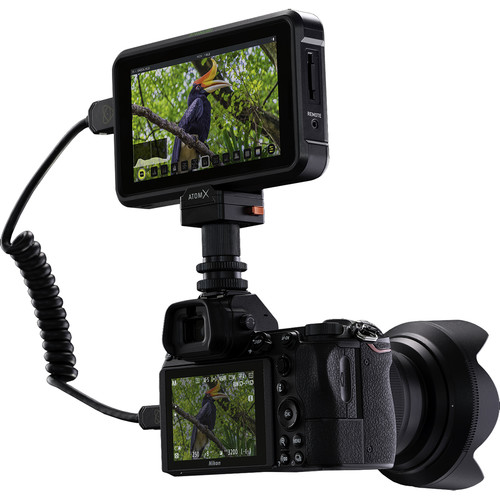

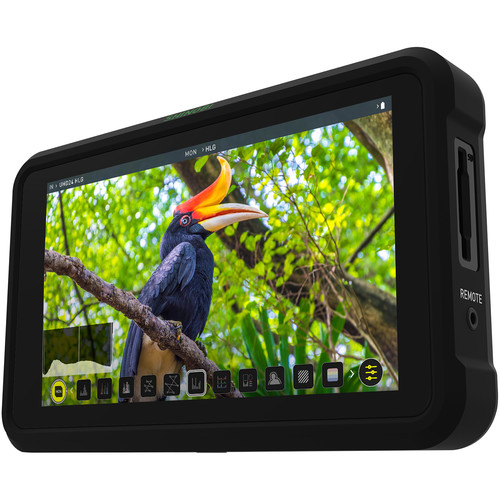

The Shinobi 5.2" 4K HDMI Monitor is a 5.2" on-camera monitor that monitors DCI 4K, UHD 4K, and HD video input. It features a 10-bit FRC IPS screen with a brightness of 1000 cd/m², which makes it suitable for use in both exterior and interior conditions. The AtomHDR display
Filmmakers Need the Atomos Shinobi Onboard HDMI Monitor
Love the Atomos line of professional onboard monitor/recorders but have no need for external recording when shooting with your DSLR? Treat yourself to the 5" Atomos Shinobi monitor for accurate in-the-field viewing and precision image control. Compatible with HDMI-output DSLRs, mirrorless, or video cameras, the Shinobi also works as a high-quality monitor for most HDMI-out tablets and smartphones.
The Shinobi supports a wide variety of color gamuts, popular log formats from ARRI, Canon, JVC, Panasonic, RED, and Sony, and supports up to 30 fps DCI or UHD 4K video. The monitor's AtomHDR technology enables you to view log gamma footage without applying a LUT or you can import a custom/3D LUTs via the Shinobi's SD card slot. Imaging features include 10.5 stops of latitude, focus peaking, false color, vectorscope and waveform functions, and anamorphic de-squeeze.
The 10-bit IPS screen outputs 1000 cd/m2 of brightness for daylight viewing and with a weight of 7 oz, this 1" slim, 5.2" monitor is substantially lighter than the 5" Atomos Ninja V. Power the Atomos Shinobi using a Sony L-series battery or a battery eliminator.
Has using one of the Atomos daylight-viewable professional monitors/recorders or Atomos's AtomHDR technology streamlined your capture process? Share your thoughts below.
OVERVIEW
The Shinobi 5.2" 4K HDMI Monitor is a 5.2" on-camera monitor that monitors DCI 4K, UHD 4K, and HD video input. It features a 10-bit FRC IPS screen with a brightness of 1000 cd/m², which makes it suitable for use in both exterior and interior conditions. The AtomHDR display technology allows you to accurately monitor your log gamma footage without having to view flat, washed-out looking images or use a LUT to compress the dynamic range and color space. The monitor supports popular log formats from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras.
Built to withstand the rigors of production, the Shinobi features a lightweight plastic chassis and powers from a single L-series battery. Additional features include a variety of onscreen exposure analysis, framing, and focus assist tools, as well as anamorphic de-squeeze. A 12V power supply is included with the unit.
AtomHDR
With AtomHDR you can monitor up to ten stops of dynamic range of your camera's LOG image. Most conventional monitors can only display six or seven stops, which is fine for standard footage; but a Log image will look overly flat. It is also superior to monitoring with a loaded LUT, which can clip the highlights and mask shadows.
Supported Log Formats
ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 /LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 /LogCEI1000 / LogCEI1280 / LogCEI1600
Canon CLog / CLog 2 / CLog 3
Fuji F-Log
JVC JLog
Nikon N-Log
Sony SLog / SLog2 / SLog3
Panasonic Vlog
RED Log3G10 / RED LogFilm
PQ10k
HLG
HDR Monitoring
Sony SGamut / SGamut3 / SGamut3.cine
Canon Cinema / DCI P3 / DCI P3+
Panasonic V Gamut
Arri Alexa Wide Gamut
Rec709 / BT.2020
JVC
RED WideGamut / RED DragonColor / DragonColor2
RED Color2 / RED Color3 / RED Color4
4K DCI/UHD and HD Capabilities
Monitor 4K footage in DCI or UHD formats up to 29.97 fps and 1080p up to 59.94 fps.
Audio Monitoring
Input/output audio via HDMI and output audio using the 3.5mm headphone port for convenient audio monitoring.
5.2" Daylight Viewable Screen
The Shinobi features a 5.2" IPS LCD screen that is illuminated by a bright 1000 cd/m² LED backlight, making it possible to view in daylight without requiring a hood. Plus, the screen is also color calibrated from the factory to ensure accurate image representation.
HDR Signal Management
Log and HDR signals can be difficult to monitor with conventional equipment. Though, with the Shinobi's built-in HDR signal management functions, the log signal can be converted to the PQ standard for compatibility with existing consumer and professional HDR equipment.
Anamorphic De-Squeeze
The Shinobi supports Anamorphic de-squeeze, allowing you to comfortably view anamorphic footage with a squeeze of 2x, 1.5x, 1.33, and Panasonic's 8:3.
SPECIFICATIONS
Atomos Shinobi
Display
Panel Type IPS-Type LCD
Display Size 5.2" / 13.2 cm
Screen Resolution 1920 x 1080
Aspect Ratio 16:9
Touchscreen Yes
Maximum Brightness 1000 cd/m2
Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
Pixels Per Inch (ppi) 427 ppi
Color Gamut 100% Rec. 709
Real-Time LUT Monitoring SDR
Image Controls Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform, Zebra, Vectorscope
I/O
Video 1 x HDMI Type A (HDMI 2.0) Input
Embedded Audio HDMI: 2-Channel
Audio 1 x 3.5 mm Headphone Output
Built-In Speaker None
Power 1 x Barrel Input
Other I/O None
Card Slot 1 x SD
Format Support
Video Format HDMI (8/10-Bit 4:2:2)
DCI 4K: 29.97/25/24/23.98
UHD 4K: 29.97/25/24/23.98
1080p: 59.94/50/29.97/25/24/23.98
720p: 59.94/50
Power
DC Input Power 6.2 to 16.8 VDC
Battery Type 1 x L-Series
Power Consumption 4 W (Typical)
7 W (Maximum)
Mounting
Mounting 2 x 1/4"-20 Female
Environmental
Operating Temperature 104°F / 40°C (Recommended)
General
Material of Construction Polycarbonate
Dimensions (W x H x D) 5.94 x 3.6 x 1.24" / 151 x 91.5 x 31.5 mm
Weight 6.91 oz / 196 g
Packaging Info
Package Weight 1.55 lb
Box Dimensions (LxWxH) 7.8 x 5.7 x 1.49"
| Weight | |
|---|---|
| Without batteries | 196g / 7oz. |
| Dimensions (W x H x D mm) | 151 x 91.5 x 31.5mm |
| Construction | Polycarbonate ABS |
| Mounting points | 1/4”-20 screw mount. 1x top and 1x bottom |
| Power | |
|---|---|
| Operating power | 4 - 7W |
| Compatible batteries | NP-F series and supporting accessories. AtomX or other. |
| Input voltage (battery) | 6.2V to 16.8V |
| Battery time (based on 7.4V) |
Standby 2600mAh - 3hrs, 5200mAh - 6hrs, 7800mAh - 12hrs |
| Monitor 2600mAh - 1.5hrs, 5200mAh - 3hrs, 7800mAh - 6hrs |
|
| DC In | via Battery Eliminator |
| Touchscreen | |
|---|---|
| Size | 5.2” |
| Resolution | 1920 x 1080 |
| PPI | 427 |
| Aspect ratio | 16:9 native |
| Color Gamut | REC709 HDTV |
| Look up table (LUT) support | 3D LUT (.cube format) *Extended Support planned |
| Anamorphic de-squeeze | 2x, 1.5x, 1.33x |
| Technology | IPS panel (capacitive touch), calibration to Rec.709 with optional calibration unit |
| HDR | |
|---|---|
| AtomHDR | Yes |
| HDR Monitoring (Gamut) | Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, JVC JLog1, RED Log3G10 /RED LogFilm, FujiFilm F-log, PQ10k, HLG, Nikon N-Log |
| HDR Monitoring (Gamma) | Sony SGamut / SGamut3 / SGamut3.cine Canon Cinema / DCI P3 / DCI P3+ Panasonic V Gamut Arri Alexa Wide Gamut Rec709 / BT.2020 JVC RED WideGamut / RED DragonColor / DragonColor2 / RED Color2 / RED Color3 / RED Color4 |
| Bit Depth | 10-bit (8+2 FRC) |
| Brightness | 1000nit (+/- 10%) |
| Screen Mirror/Flip | Horizontal Flip (Selfie mode), Vertical Flip * Landscape/Portrait mode planned for future firmware release |
| Video Input | |
|---|---|
| HDMI | 1 x HDMI (1.4) |
| Signal | Up to Uncompressed true 10-bit or 8-bit 422 (camera dependent) |
