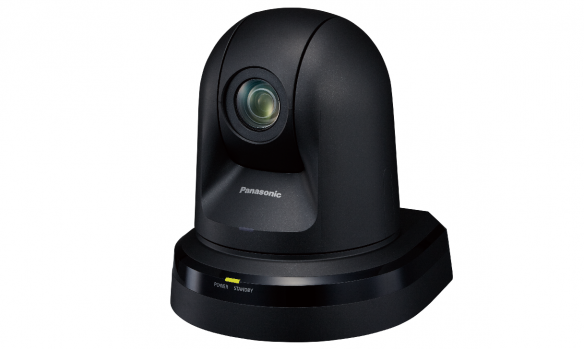

Panasonic AW-HE42 (Black/White) PTZ Camera with 3G-SDI

Panasonic AW-HE42 (Black/White) PTZ Camera with 3G-SDI
Panasonic AW-HE42 (Black/White) PTZ Camera with 3G-SDIPanasonic AW-HE42 (Black/White) PTZ Camera with 3G-SDIPanasonic AW-HE42 (Black/White) PTZ Camera with 3G-SDIPanasonic AW-HE42 (Black/White) PTZ Camera with 3G-SDI
รหัสสินค้า SKU-00461
หมวดหมู่ PANASONIC
ราคา 119,000.00 บาท
VAT7% กรุณาติดต่อสอบถาม
สถานะสินค้า พร้อมส่ง
ลงสินค้า 24 ก.ค. 2562
อัพเดทล่าสุด 3 ก.ย. 2566
คงเหลือ ไม่จำกัด
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
Panasonic AW-HE40 (Black/White) PTZ Camera with 3G-SDI เป็นกล้อง Full HD ที่มีฐานหมุนในตัวที่ติดตั้ง 3G-SDI และขั้วต่อเอาต์พุตอื่นๆ ที่หลากหลาย อินเทอร์เฟซเอาต์พุตสี่ประเภทและฟังก์ชัน genlock รองรับการถ่ายภาพขนาดใหญ่ที่ราบรื่นด้วยกล้องหลายตัว กล้องนี้เหมาะอย่างยิ่งสำหรับสภาพแวดล้อมที่หลากหลาย

กล้อง PANASONIC AW-HE42 HD Professional PTZ Camera
รายละเอียดสินค้า

กล้องวีดีโอ PTZ AW-HE42W/K ระดับมืออาชีพ Full-HD พร้อม 3G-SDI

เลนส์ประสิทธิภาพสูงและอินเทอร์เฟซที่หลากหลายรองรับสภาพแวดล้อมการผลิตวิดีโอสดที่หลากหลาย AW-HE42W/K เป็นกล้อง Full HD ที่มีฐานหมุนในตัวที่ติดตั้ง 3G-SDI และขั้วต่อเอาต์พุตอื่นๆ ที่หลากหลาย อินเทอร์เฟซเอาต์พุตสี่ประเภทและฟังก์ชัน genlock รองรับการถ่ายภาพขนาดใหญ่ที่ราบรื่นด้วยกล้องหลายตัว กล้องวีดีโอ PTZ AW-HE42W/K นี้เหมาะอย่างยิ่งสำหรับสภาพแวดล้อมที่หลากหลาย ตั้งแต่การบันทึกและการถ่ายทอดการบรรยาย ไปจนถึงการสตรีมสดในคอนเสิร์ตและกิจกรรมอื่นๆ

ฟีเจอร์หลัก

ระบบ Four Drive Lens: ซูมด้วยคุณภาพของภาพที่เหลือเชื่อ

กล้องวีดีโอ PTZ AW-HE42W/K นี้ติดตั้งระบบ Four Drive Lens ซึ่งเลนส์ซูมสามตัวและเลนส์โฟกัสหนึ่งตัวจะทำงานแยกกันแต่พร้อมกัน การขับเคลื่อนเลนส์ทั้งสี่ตัวแยกกันช่วยลดขนาดเลนส์และช่วงการขับ เพื่อให้ได้ขนาดตัวกล้องที่เล็กลงพร้อมการซูมคุณภาพของภาพและกำลังขยายที่สูง แม้จะมีขนาดที่เล็กกะทัดรัด แต่กล้องรุ่นนี้ยังสามารถซูมออปติคอล 20x และซูม 30x ความละเอียดสูงพิเศษประสิทธิภาพสูง

เซนเซอร์ MOS ชนิด 1/2.3

กล้องวีดีโอ PTZ AW-HE42W/K มาพร้อมกับเซ็นเซอร์ MOS ประเภท 1/2.3 และ DSP (ตัวประมวลผลสัญญาณดิจิตอล) สำหรับความไวสูงและความละเอียดสูง เลนส์ซูมออปติคอล 20x ประสิทธิภาพสูง/ซูม 30x ความละเอียดสูงสุด

นอกจากการซูมแบบออปติคอล 20x แล้ว เทคโนโลยีความละเอียดสูงพิเศษยังช่วยให้สามารถซูมได้ถึง 30x โดยที่ยังคงความละเอียดสูงไว้ กล้องยังสามารถตั้งค่าด้วยการซูมดิจิตอล 12x*5 หรือ 1.4, 2.0, 4.0, 6.0 หรือ 8.0 ซูมดิจิตอล

*5: คุณภาพของภาพลดลงเมื่อซูมดิจิตอล

ระบบป้องกันภาพสั่นไหวแบบไฮบริดแบบออปติคัล / สี่แกน (OIS) เพื่อความเสถียรในการถ่ายภาพ

การสั่นของภาพลดลงด้วยระบบป้องกันภาพสั่นไหวอัตโนมัติแบบ 4 แกนแบบออปติคัลและดิจิตอลที่ตรวจจับการสั่นสะเทือนของพื้นผิวการติดตั้งที่เกิดจากอุปกรณ์เครื่องเสียงและการเปิด/ปิดประตู

โหมดกลางคืน (รองรับการสลับอัตโนมัติ)

การเปลี่ยนไปใช้โหมดกลางคืนทำให้ถ่ายภาพได้แม้ในสภาพแสงน้อยซึ่งปกติแล้วการถ่ายภาพจะทำได้ยาก เช่น เมื่อสังเกตสัตว์ป่า*6 นอกจากนี้ยังสามารถตั้งค่า AW-HE42W/K ให้เปลี่ยนเป็นโหมดอัตโนมัติตามระดับแสงโดยรอบได้อีกด้วย

มาพร้อมโหมด High Dynamic Range (HDR)


กล้องวีดีโอ PTZ AW-HE42W/K นอกเหนือจาก Dynamic Range Stretch (DRS) แบบเดิมและ Digital Noise Reduction (DNR) แล้ว AW-HE42W/K ยังมาพร้อมกับโหมด High Dynamic Range (HDR) เมื่อถ่ายภาพและวิเคราะห์ภาพสองภาพที่มีเวลาเปิดรับแสงต่างกัน AW-HE42W/K สามารถสร้างวิดีโอที่มีทัศนวิสัยสูงที่แก้ไขข้อบกพร่องของแสงและสีดำแม้ภายใต้สภาวะย้อนแสง

ดูการสนับสนุนผลิตภัณฑ์

เข้าสู่โลกของ P.T.Z.กล้อง AW-HE38 ได้รับการออกแบบมาเพื่อให้ได้ผลลัพธ์ที่ยอดเยี่ยมในการใช้งานที่หลากหลายซึ่งต้องการวิดีโอคุณภาพสูงและการควบคุมที่แม่นยำ เช่น วิดีโอการประชุม การจับภาพเหตุการณ์ การจัดเตรียม การเรียนทางไกล และการนมัสการ ด้วยเลนส์ซูมออปติคอล 22X ที่แม่นยำ ช่องมองภาพกว้าง ฟังก์ชัน PTZ ที่ราบรื่น และคุณภาพของภาพที่ยอดเยี่ยม กล้อง HE38 เหมาะอย่างยิ่งสำหรับการผลิตระยะไกลที่มีความต้องการสูงและการใช้ IMAG ด้วยการส่งและควบคุม IP-Preview และรองรับ PoE+ (ซึ่งอนุญาตให้จ่ายไฟผ่านสาย LAN) HE38 ยังให้ความยืดหยุ่นที่จำเป็นสำหรับการติดตั้งและการจัดการที่ง่ายดาย


PANASONIC AW-HE42 Full-HD Professional PTZ Camera with 3G-SDI

High-performance lenses and a variety of interfaces support a wide range of live video production environments
The AW-HE42W/K is a full HD camera with an integrated rotating base equipped with 3G-SDI and a variety of other output connectors. The four types of output interfaces and the genlock function support smooth large-scale shooting with multiple cameras. The camera is perfect for a wide range of environments, from recording and broadcast of lectures, to live streaming at concerts and other events.

The Four Drive Lens System: Zoom with Incredible Image Quality
The camera is equipped with the Four Drive Lens System, where three zoom lenses and one focus lens are driven independently but simultaneously. Driving each of the four lenses individually enables reduction in lens size and drive range to achieve a reduced-size body with zoom of high image quality and magnification. Despite its compact size, the camera boasts optical 20x zoom and high performance, ultra-high-resolution 30x zoom.



External Sync Signal Input Connector Plus Four Types
of Output*1 Connectors: HDMI, SDI, USB and LAN
Full HD video output is enabled with HDMI, SDI, USB and LAN. The camera is also equipped with an external sync signal*1 input connector as well as BBS (Black Burst Sync) and tri-level sync. The camera enables flexible system construction ready to handle any purpose or environment.

Supported formats with each output connector

HDMI 1080/59.94p,1080/50p,1080/59.94i,1080/50i,
1080/29.97PsF,1080/25PsF,1080/29.97p,
1080/25p,720/59.94p,720/50p
SDI 1080/59.94p,1080/50p,1080/59.94i,1080/50,
1080/29.97PsF,1080/25PsF,1080/29.97p,
1080/25p,720/59.94p,720/50p
USB 1080/30p,1080/25p,1080/15p,1080/12.5p,1080/5p,
720/30p,720/25p,720/15p,720/12.5p,720/5p,
360/30p,360/25p,360/15p,360/12.5p,360/5p
LAN For details, please see "List of Supported Multi-Streaming Outputs".

List of Supported Multi-Streaming Outputs (When priority mode “IP” is selected)
Settings H.264 JPEG
CH1 CH2*2 CH3*2 CH4*3 CH1 CH2 CH3
Resolution IP
selected
1920×1080
1280×720*2
640×360*4
1280×720
640×360
320×180
1920×1080*3
1280×720*2
640×360
320×180*2
Frame
rate
IP
selected
59.94 Hz 60/30/15/5 fps 30/15/5 fps 30/15/5 fps
50 Hz 50/25/12.5/5 fps 25/12.5/5 fps 25/12.5/5 fps
Bit rate up to 24 Mbps otherwise
Voice transmission Yes (AAC48 KHz)
PoE+ Yes

*Depending on the output mode, certain restrictions apply.
*2: Settable when HDR is "Off".
*3: Settable when HDR is set to "Off" and the frame rate is other than 60fps (or 50fps).
*4: Not settable when HDR is "Off".

1/2.3-type MOS Sensor
Equipped with a 1/2.3-type MOS sensor and DSP (Digital Signal Processor) for high sensitivity and high resolution.

High Performance Optical 20x Zoom Lens/Super Resolution 30x Zoom
In addition to optical 20x zoom, ultra-high-resolution technology has enabled zoom of up to 30x while maintaining high resolution. The camera can also be set with 12x digital zoom*5, or 1.4, 2.0, 4.0, 6.0 or 8.0 digital extender zoom.

*5: Picture quality is lower with the digital zoom.


Optical / Four-Axis Hybrid Image Stabilizer (OIS) for Shooting Stability
Image shake is reduced with both optical and digital 4-axis automatic stabilization that detects mounting surface vibration caused by audio equipment and opening/closing doors.

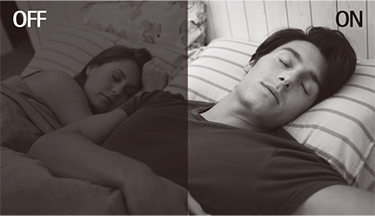

Night Mode (supports automatic switching)
Switching to Night Mode makes shooting possible even in low light conditions in which shooting is normally difficult, such as when observing wildlife*6. The AW-HE42W/K can also be set to switch to the mode automatically depending on surrounding light levels.

*6: Video output is monochrome.

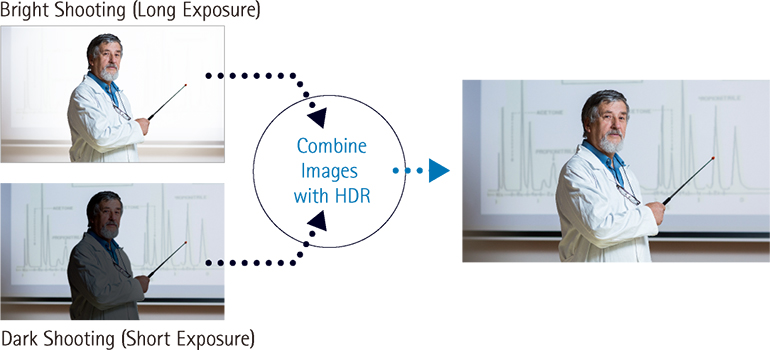

Equipped with High Dynamic Range (HDR) Mode
In addition to conventional Dynamic Range Stretch (DRS) and Digital Noise Reduction (DNR), the AW-HE42W/K is equipped with High Dynamic Range (HDR) mode. When shooting and synthesizing two images with differing exposure times, the AW-HE42W/K can create video with high visibility that corrects for halation and black defects even under backlit conditions.



Outputs Still Image During Preset Movements;
Supports One-Camera Operations
The Freeze During Preset function enables to freeze the video during preset playback. The immediately preceding still image is output during preset movements so that the swiveling movement is not displayed, making operations possible with one camera.

With Freeze During Preset function OFF and ON


Audio Input Function
The AW-HE42W/K also supports audio input, embedding and encoding. Audio output to IP is also supported. The ALC (Audio Automatic Level Control) in the AW-HE42W/K can be switched ON/OFF and an equalizer function can be used. By reducing low-frequency sound from air conditioners, projectors, and other devices, it is possible to emphasize and increase the clarity of the spoken words.

MicroSD Card Recording Function*7
Camera video and audio can be recorded in MP4 format on microSD card (sold separately) inserted into the unit. In addition, using an IP network, it is possible to externally control recording start/stop and download the recorded files.

1080/59.94p,1080/50p,1080/29.97p,1080/25p, 720/59.94p, 720/50p, 720/29.97p, 720/25p
*7: There may be instances where it is not possible to record in the same format as the output video.

Full HD Video Output Via IP Transmission
HDMIIP transmission as well as HDMI, SDI and USB output are supported to enable IP video output of up to 60 frames per second. Multi-streaming output (H.264 streaming) of up to four channels*8 per camera and video transmission to up to 14 terminals are supported*9, enabling a variety of system layouts as needed for the application.

*8: 1920 x 1080 60 fps output is 1ch display only. For 2ch or more, display is max. 30 fps. Also, JPEG output is up to 3ch.
*9: Depends on your network environment.

NDI | HX Compatibility for Excellent Video Streaming Quality
The AW-HE42W/K can be upgraded to an NDI | HX compatible model if purchasing a license from the 4K/HD Integrated Camera NewTek NDI HX Support Information. Highly efficient NDI | HX compatibility enables excellent broadcast streaming by encoding and transmitting high-quality video in real time. This technology eliminates the need for IP decoders, allowing input to be sent directly to the switcher.


IP Control with Image Monitoring Using PC, Mac and Mobile Terminals
Using an IP browser, the camera can be controlled from a remote location, and IP video monitoring and remote camera control can be performed from a PC, Mac or mobile terminal such as an iPhone, iPad or Android device, enabling easy operations.

*For the latest information on supported OS/browsers, please refer to the “service and support”.

Other Functions
  • Equipped with a night mode for shooting with low light levels.
  • Equipped with an optical ND filter.
  • USB Video Class 1.0, USB Audio Class 1.0 supported.
  • PoE+ enabled for charging via a LAN cable.
  • Up to 100 AW-HE42W/K units can be controlled from a single Remote Camera Controller via IP connection.
  • Control of up to five Remote Camera Controllers is enabled for a single AW-HE42W/K.
  • Equipped with a RS422 remote terminal, serial control of up to five AW-HE42W/K units is enabled from the controller.
  • Preset memory holds up to 100 positions.
  • Freeze, color temperature settings, digital extender and other functions can be set to user assignable buttons of the Panasonic controller.
  • Equipped with the RS232C remote terminal (standard serials communication). Daisy chain connection enables control of up to seven AW-HE42W/K units.
  • Up to four AW-HE42W/K units can be controlled via wireless remote control (AW-RM50G, sold separately).
  • Equipped with a turn lock mechanism for easy installation.
SPECIFICATIONS
GENERAL
Power requirements DC 12 V (Supplied AC adaptor)
DC 42 V to 57 V (PoE+ power supply)
Current consumption 1.3 A (Supplied AC adaptor)
0.5 A (PoE+ power supply)
Ambient operating temperature 0 °C to 40 °C (32 °F to 104 °F)
Storage temperature –20 °C to 50 °C (–4 °F to 122 °F)
Allowable humidity ranges 20 % to 90 % (no condensation)
Mass Approx. 1.5 kg (3.30 lb)
Dimensions (W x H x D) 160 mm x 186 mm x 179 mm
(6-5/16 inches x 7-41/128 inches x 7-3/64 inches)
[excluding protrusions, direct ceiling mount bracket]
Finish [AW-HE42W] Pearl white
[AW-HE42K] Metallic black
Controller supported*1 AW-RP150GJ*1, AW-RP50, AK-HRP1000GJ*1, AK-HRP1005GJ*1
INPUT
Power DC 12 V IN, PoE+ (IEEE802.3at standard)
Mic/line input Stereo mini-jack (ø3.5 mm)
Input impedance: Approx. 2 kΩ (unbalanced)
[Mic input]
Supported microphones: Stereo mic
(plug-in power, on/off switching via menu)
Supplied voltage: 2.5 V ± 0.5 V
Mic input level: –60 dBV ± 3 dBV (0 dB=1 V/Pa,1 kHz)
[Line input]
Input level: -10 dBV ± 3 dBV
G/L IN
BBS (Black Burst Sync) signal and tri-level sync supported (BNC x 1)
OUTPUT
Video output HDMI
HDMI connector
* HDCP is not supported. * VIERA Link is not supported.
3G/HD-SDI OUT
Compliant with the SMPTE424/SMPTE292M standards/75 Ω(BNC x 1)

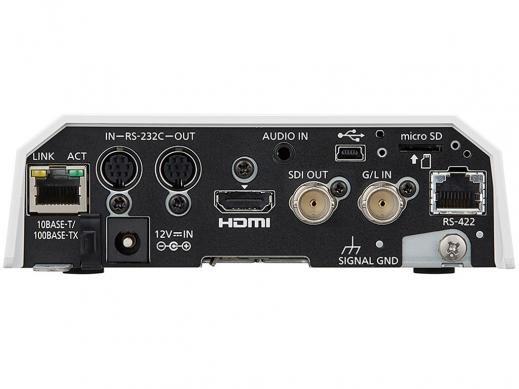

INPUT/OUTPUT
Input/Output connector LAN
LAN connector for IP control (RJ-45)
Equipped with straight/crossover cable auto detection function
RS-232C
Mini DIN 8-pin (IN) Mini DIN 8-pin (OUT)
RS-422
CONTROL IN RS422A (RJ-45)
USB
Mini-B port
SD card
microSD card slot
FUNCTIONS AND PERFORMANCE
[Camera unit]
Imaging sensors 1/2.3-type MOS
Lens Motorized 20x zoom, F1.8 to F3.6
[f=4.08 mm (5/32 inches) to 81.6 mm (3-7/32 inches); 35 mm (1-3/8 inches)
equivalent: 29.5 mm (1-5/32 inches)to 612.0 mm (24-3/32 inches)]
Focus Switching between auto and manual
Focus distance Entire zooming range:1.5 m (4.92 ft)
Wide end: 10 cm (0.33 ft)
Color separation optical system On-chip color filter system
Minimum illumination 59.94 Hz
0.7 lx (50 IRE, F1.8, 48 dB,1/60 without accumulation)
0.35 lx (50 IRE, F1.8, 48 dB,1/30 with accumulation[Frame Mix 6 dB])
50 Hz
0.7 lx (50 IRE, F1.8, 48 dB,1/50 without accumulation)
0.35 lx (50 IRE, F1.8, 48 dB,1/25 with accumulation[Frame Mix 6 dB])
Horizontal resolution HD: 1000 TV lines Typ (Center area)
Gain selection*2 Auto, 0 dB to 48 dB (3 dB step)
Frame mix*3 Auto, Off, 6 dB, 12 dB, 18 dB, 24 dB
ND filter Auto*4, Through, 1/4, 1/16, 1/64
Electronic shutter speed During Full Auto
1/60 to 1/2000 (Auto Slow Shutter: Off)[59.94 Hz]
1/30 to 1/2000 (Auto Slow Shutter: On)[59.94 Hz]
1/50 to 1/2000 (Auto Slow Shutter: Off)[50 Hz]
1/25 to 1/2000 (Auto Slow Shutter: On)[50 Hz]
During Auto
1/60 to 1/2000 [59.94 Hz]
1/50 to 1/2000 [50 Hz]
During Manual
1/100, 1/250, 1/500, 1/1000, 1/2000,
1/4000, 1/10000 [59.94 Hz]
1/120, 1/250, 1/500, 1/1000, 1/2000,
1/4000, 1/10000 [50 Hz]
Synchro scan 59.94 Hz : 59.94 Hz to 660.09 Hz (255 step)
50 Hz : 50.00 Hz to 570.12 Hz (255 step)
Gamma Off, Normal (Low, Mid, High), Cinema
White balance ATW, AWB A, AWB B, ATW, 3200K,5600K, VAR (2400K to 9900K)
Chroma amount variability ±3 step
Scene file Full Auto, Manual1, Manual2, Manual3
Output format HD
1080:59.94p/50p
1080:59.94i/50i
1080:29.97p/25p
1080:29.97PsF/25PsF
720:59.94p/50p
Synchronization system Internal synchronization/External synchronization (BBS, Tri-level sync)
Image stabilization Optical /4-axis hybrid image stabilizer for stable
[USB connection] * This may vary depending on the operating environment.
Video output USB Video Class Ver1.0
Video compression format Motion JPEG
Resolution 1920 x 1080, 1280 x 720, 640 x 360
Frame rate max 30 fps (59.94 Hz)
max 25 fps (50 Hz)
Audio output USB Audio Class Ver1.0
Audio compression format Linear PCM, 48 kHz, 16-bit, 2 channels
Transfer modes(JPEG) 1920x1080/1280x720/640x360
59.94 Hz: 30fps/15fps/5fps, 50 Hz: 25fps/12.5fps/5fps
Supported models Devices standardly equipped with a USB 2.0 compatible port
[Pan-tilt head unit]
Installation method Stand-alone (Desktop) or suspended (Hanging)*5
Pan/tilt operation speed Maximum speed during preset: 300°/s
Maximum speed during manual: 90°/s
Panning range ±175°
Tilting range –30°to 90°*6
Quietness During preset: NC40 or less
During manual: NC35 or less
[Camera/pan-tilt head control]
IP connecting cable When connecting through a hub:
LAN cable*7 (category 5 or above),max. 100 m (328 ft)
When using a PoE+ hub:
LAN cable*7 (category 5e or above),max. 100 m (328 ft)
When a hub is not used:
LAN cable*7 (category 5 or above),max. 100 m (328 ft)
AW protocol connecting cable LAN cable*7 (category 5 or above,straight cable), max. 1000 m (3280 ft)
Standard protocol connecting cable Mini DIN 8-pin cable, male
[SD card recording]
SD card recording MPEG-4 AVC file standard compliant (.MP4)
Video compression format MPEG-4 AVC/H.264 High Profile
Audio compression format AAC-LC (48 kHz, 16 bit, 2 ch, 128 kbps)
Recording format/Bit rate 59.94 Hz
1920x1080/59.94p (Up to 28 Mbps),
1920x1080/29.97p (Average 15 Mbps/Average 10 Mbps/Average 6 Mbps),
1280x720/59.94p (Average 15 Mbps),
1280x720/29.97p (Average 8 Mbps/Average 4 Mbps/Average 2 Mbps/Average 1 Mbps)
50 Hz
1920x1080/50p(Up to 28 Mbps),
1920x1080/25p(Average 15 Mbps/Average 10 Mbps/Average 6 Mbps),
1280x720/50p(Average 15 Mbps),
1280x720/25p(Average 8 Mbps/Average 4 Mbps/Average 2 Mbps/Average 1 Mbps)
[Network]
Transfer modes JPEG
1920x1080, 1280x720, 640x360, 320x180,
59.94 Hz (30fps/15fps/5fps)*8,
50 Hz (25fps/12.5fps/5fps)*8
H.264
1920x1080, 1280x720, 640x360, 320x180,
59.94 Hz (60fps*9/30fps/15fps/5fps)*8,
50 Hz (50fps*9/25fps/12.5fps/5fps)*8
Supported protocol IPv4
TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP,
DHCP, DNS, NTP, IGMP, UPnP, ICMP, ARP, RTSPoverTCP,
RTSPoverHTTP, SSL(TLS), MultiCast/UniCast
IPv6
TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, DHCPv6, DNS,
NTP, ICMPv6(MLD), RTSPoverTCP, RTSPoverHTTP, SSL(TLS), MultiCast/UniCast
i-OS, Android support JPEG image display
ACCESSORIES
Mount bracket for installation surface (Hanging*10 / Desktop): 1
Drop-prevention wire (already attached to the unit): 1
Bracket mounting screws (bind-head) M4 x 10 mm: 4
Main unit mounting screw (with flat washer, spring washer) M3 x 6 mm: 1
Power cable (1.5 m [4.92 ft]): 1
AC adaptor: 1
CD-ROM: 1


วิธีการชำระเงิน

ธนาคารไทยพาณิชย์ จำกัด (มหาชน) สาขางามวงศ์วาน กระแสรายวัน


หมวดหมู่สินค้า

Member

Statistics

หน้าที่เข้าชม835,476 ครั้ง
ผู้ชมทั้งหมด468,366 ครั้ง
เปิดร้าน7 พ.ย. 2559
ร้านค้าอัพเดท5 ก.ย. 2568

Contact Us

0946364541(คุณเอก), 0955525695 (คุณตี๋)
พูดคุย-สอบถาม
