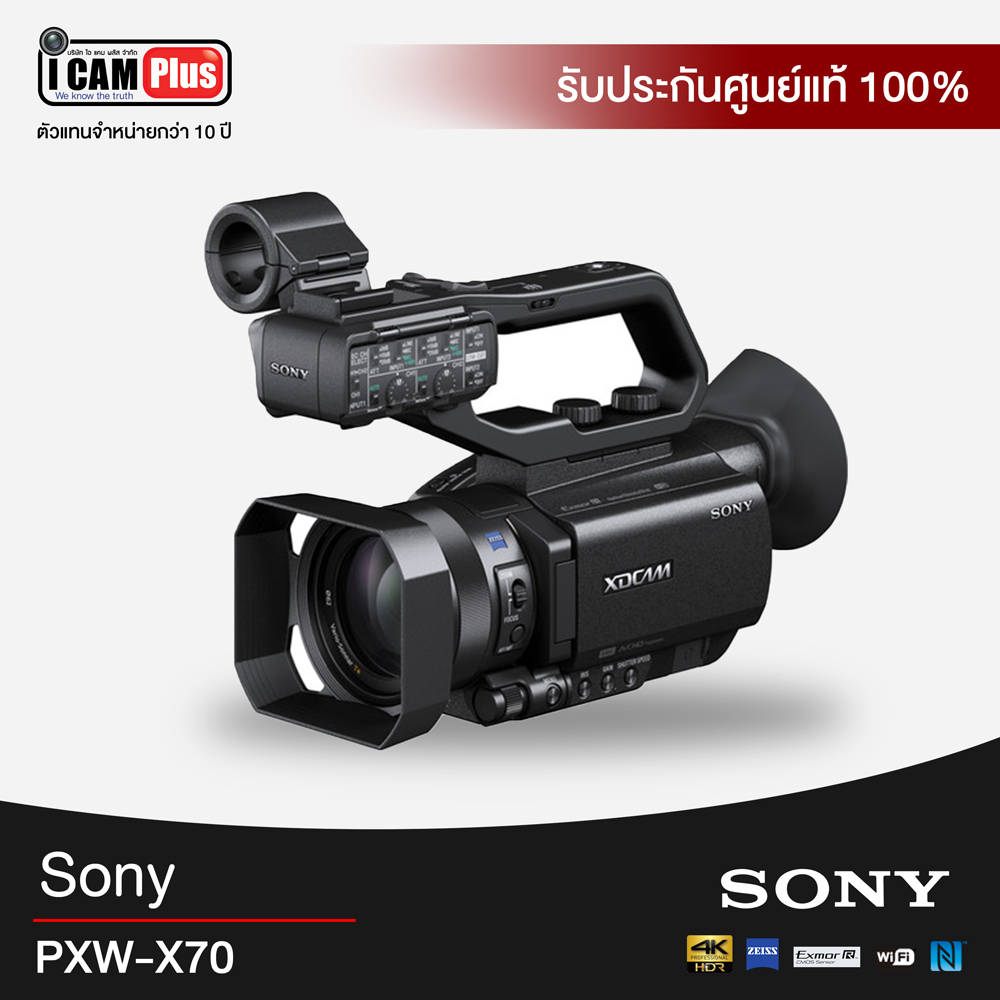

SONY PXW-X70 Professional XDCAM Compact Camcorder

สุดยอด กล้องวีดีโอ Sony PXW-X70 XAVC 4K (QFHD)* และ MPEG HD**



Sony's PXW-X70 Professional XDCAM Compact Camcorder is about the same size as a conventional 1/3" professional compact camcorder, but it features a 1" type sensor, which is larger than a super-16 sized sensor and more than eight times the size of a 1/3" sensor. The larger Exmor R sensor size provides for more cinematic appearing depth of field than a 1/3" sensor is capable of and features a back-side illuminated design for improved low light performance. It features an integrated 12x optical zoom lens with a manual lens ring for zoom/focus control, and a three level switchable ND filter. The top handle incorporates two 3-pin XLR inputs for recording audio from XLR microphones.

The camera records HD video using the XAVC Long-GOP codec with 4:2:2, 10-bit color sampling at 50 Mb/second, providing footage with a high data rate that is suitable for broadcast applications. Sony's Slow & Quick Motion is built-into the camera. The camera features two SD card slots, allowing simultaneous and relay recording, and both a 3G-SDI and an HDMI output. The camera supports control via Wi-Fi using smartphones or tablets and the optional Content Browser Mobile application. Planned upgrades will allow the camera to record in 4K UHD as well as add file transfer and streaming via Wi-Fi.

4K Upgrade

An optional upgrade via a license key (Sony part # CBKZ-X70FX) allows the camera to record 4K.

The 1" type sensor features 14.2 million effective pixels on a sensor that is more than 8 times larger than a 1/3" type sensor. The larger size of the pixels allows them to gather more light compared to a 1/3" sensor. The Exmor R designation indicates the sensor features a back-side illuminated design, which allows more light to reach the sensor's photosites for increased light sensitivity and less noise in low light conditions.

The PXW-X70 is a compact camcorder that weighs less than 3 pounds including the XLR handle unit, battery (NP-FV70), lens hood and large eye-cup. It features professional interfaces including 3G-SDI and HDMI output connectors, an XLR handle unit with zoom lever, a manual lens ring that can control zoom and focus, and an ergonomic palm grip with large zoom lever. Its records video to two SD memory card slots that can be used for simultaneous and relay recording and to backup files.

The camera is capable of using Sony's Slow & Quick motion recording, which allows you to shoot at selectable frame rates (1, 2, 4, 8, 15, 30, 60 / 1, 2, 3, 6, 12, 25, 50.)

The integrated 12x optical zoom lens incorporates a three-level switchable ND filter, with 24x clear Image Zoom technology that retains the quality of the HD image, and a digital extender allows you to zoom up to 48x.

Multiple recording choices are available depending on application, including XAVC, AVCHD, and DV file-based recording. The PXW-X70 records in XAVC using the MXF file format, which efficiently compresses full HD (1920 x 1080) resolution using the MPEG-4 AVC/H.264 CODEC. Color sampling is 4:2:2 10-bit with high-efficiency Long-GOP compression at 50 Mbps, 35 Mbps, or 25 Mbps for broadcast quality images.

Supporting Near Field Communication functions, the camera allows easy, one-touch wireless LAN connection to a smartphone or tablet, while the Content Browser Mobile application allows confirmation of shot angles and operation of the camcorder by remote, including spot focus and iris adjustment.

PRODUCT HIGHLIGHTS

- 1" Exmor R CMOS Sensor

- HD Recording

- Built-In SD Media Card Slots

- Viewfinder & Flip-Out LCD Screen

- XAVC, AVCHD, DV File Based Recording

- Slow & Quick Motion

- 3G-SDI & HDMI Output

- Wireless LAN Control

- Optional Upgrade To UHD 4K

Ultimate palm-sized camcorder with XAVC 4K (QFHD)* and MPEG HD**



The popular PXW-X70 palm-sized camcorder continues to evolve with the addition of XAVC 4K (QFHD) 100Mbps* recordings at 30p/25p/24p, plus MPEG HD422 and MPEG HD420**, providing even more recording choices. It is possible to select an output from HDMI, SDI, and composite while recording QFHD, plus a salvage function for XAVC file is available***. The camcorder also records XAVC HD, AVCHD and DV with advanced network functions such as QoS Streaming in Network Client Mode and Ustream® direct streaming added via firmware version 3.0. The PXW-X70 gives users the ultimate balance between picture quality, advanced functionality and compact size.



* XAVC 4K (QFHD) 100Mbps recording requires Version 3.0 firmware plus optional CBKZ-X70FX software key.

**MPEG HD recording requires Version 3.0 firmware plus optional CBKZ-SLMP upgrade.

*** Requires Version 3.0 firmware or higher.



Network functions including Ustream and QoS Streaming*



The PXW-X70 is packed with all the latest network functions, from QoS Streaming for high quality of transmission when streaming to the PWS-100RX1 in Network Client Mode, to direct streaming using Ustream, with no need for a separate PC setup when using version 3.0 or higher firmware. The camcorder also provides Wi-Fi/NFC (Near Field Communication) with Content Browser Mobile™ software.



* Requires Version 3.0 firmware or higher.



1.0 type Exmor R CMOS Sensor for stunning picture quality



High sensitivity and fantastic resolution with 14.2 million effective pixels delivers striking detail and colours, even in low light conditions.



Carl Zeiss Vario Sonnar T* lens



The lens offers a 12x optical zoom, which can be increased to 24x with Clear Image Zoom while retaining full resolution thanks to Super Resolution Technology. Zoom performance can be doubled at any point with a Digital Extender by up to 48x.



Compact, lightweight XDCAM camcorder packed with adaptable professional functions



The PXW-X70 weighs less than 1.4kg, including the XLR handle unit, battery (NP-FV70), lens hood and large eye-cup. It offers professional interfaces such as 3G-SDI and HDMI output connectors plus an XLR x2 handle unit with zoom lever. Other professional features include a manual lens ring that can intuitively control zoom and focus, ergonomic palm grip with large zoom lever, two SD memory card slots for backup, simultaneous and relay recording, and a three-level switchable ND filter.

SPECIFICATION SONY PXW-X70

Technical Specifications

Mass Approx.
900 g (1 lb 15 oz) (body)

Approx. 1400 g (3lb 1oz)
(with lens hood, XLR handle unit, eyecup, NP-FV70 battery)

Dimensions
(W x H x D)*1 120.7 x 103.5 x 274.3 mm (4 7/8 x 4 1/8 x 10 7/8 inches) (With the accessories (lens hood, large eyecup), excluding the grip belt and including the projecting parts)

130.3 x 180.9 x 287 mm (5 1/4 x 7 1/8 x 11 3/8 inches) (With the accessories (lens hood, large eyecup, XLR handle unit) , excluding the grip belt and including the projecting parts)

Power Requirements DC In: 8.4 V, Battery: 6.8 V / 7.2 V

Power Consumption Approx. 5.5 W (while recording with viewfinder and XAVC HD 1080/60i 50Mbps)

Approx. 5.8 W (while recording with LCD and XAVC HD 1080/60i 50Mbps)

Operating Temperature 0°C to 40°C (32°F to 104°F)

Storage Temperature -20°C to +60°C (-4°F to +140°F)

Battery Operating Time Approx. 120 min. with NP-FV70 battery (while recording with LCD, XAVC 1080/60i, 50Mbps)

Approx. 200 min. with NP-FV70 battery (while playing with LCD, XAVC 1080/60i, 50Mbps)

Recording Format (Video) XAVC QFHD: MPEG-4 AVC/H.264 4:2:0 Long profile

XAVC HD : MPEG-4 AVC/H.264 4:2:2 Long profile

XAVC Proxy: MPEG-4 AVC/H.264 4:2:0 Long profile

AVCHD : MPEG-4 AVC/H.264 AVCHD 2.0 format compatible

DV

Recording Format (Audio) XAVC QFHD : Linear PCM 2ch, 24bit, 48kHz

XAVC HD : Linear PCM 2ch, 24-bit, 48 kHz

XAVC Proxy : AAC-LC 2ch, 16bit,48kHz

AVCHD : Linear PCM 2ch, 16-bit, 48 kHz / Dolby Digital 2ch, 16-bit, 48 kHz

DV : Linear PCM 2ch, 16-bit, 48 kHz

Recording Frame Rate XAVC QFHD (3840 x 2160)@29.97p, 25p, 23.98p, 60Mbps

XAVC HD (1920 x 1080)@59.94p, 50p, 50 Mbps/35 Mbps

XAVC HD (1920 x 1080)@59.94i, 50i, 50 Mbps/35 Mbps/25 Mbps

XAVC HD (1920 x 1080)@29.97p, 25p, 23.98p, 50 Mbps/35 Mbps

XAVC HD (1280 x 720)@59.94p, 50p,50 Mbps

XAVC Proxy (1280 x 720)@59.94p, 50p, 29.97p, 25p, 23.98p, 9Mbps

XAVC Proxy (640 x 360)@59.94p, 50p, 29.97p, 25p, 23.98p, 3Mbps

Recording Frame Rate AVCHD (1920 x 1080)@59.94p, 50p, PS mode (28 Mbps)

AVCHD (1920 x 1080)@59.94i/50i/29.97p/25p/23.98p, FX mode (24 Mbps), FH mode(17 Mbps)

AVCHD (1280 x 720)@59.94p, 50p, FX mode (24 Mbps), FH mode (17 Mbps), HQ mode (9 Mbps)

DV (720 x 480) @59.94i, 25 Mbps

DV (720 x 576) @50i, 25 Mbps

Recording/Playback Time XAVC QFHD@LPCM 2ch@29.97p 60 Mbps

Approx. 100 min with 64 GB memory card

XAVC QFHD@LPCM 2ch@25p 60 Mbps

Approx. 100 min with 64 GB memory card

XAVC QFHD@LPCM 2ch@23.98p 60 Mbps

Approx. 100 min with 64 GB memory card

XAVC HD@LPCM 2ch 50 Mbps

Approx. 120 min with 64 GB memory card

XAVC HD@LPCM 2ch 35 Mbps

Approx. 170 min with 64 GB memory card

Recording/Playback Time XAVC HD@LPCM 2ch 25 Mbps

Approx. 220 min with 64 GB memory card

AVCHD@LPCM 2ch PS Mode

Approx. 290 min with 64 GB memory card

Approx. 145 min with 32 GB memory card

AVCHD@LPCM 2ch FX Mode

Approx. 340 min with 64 GB memory card

Approx. 170 min with 32 GB memory card

AVCHD@LPCM 2ch FH Mode

Approx. 450 min with 64 GB memory card

Approx. 225 min with 32 GB memory card

DV

Approx. 280 min with 64 GB memory card

Approx. 140 min with 32 GB memory card

Lens

Lens Mount Fixed

Zoom Ratio 12x (optical), servo

Focal Length f=9.3 - 111.6 mm

equivalent to f=29.0 - 348.0 mm on 35 mm lens (16:9)

equivalent to f=35.5 - 426.0 mm on 35 mm lens (4:3)

Iris F2.8 - F4.5 auto/manual selectable

Focus AF/MF selectable, 10 mm to ∞ (Wide), 1000 mm to ∞ (Tele)

Image Stabilizer ON/OFF selectable, shift lens

Filter Diameter M62 mm

Camera Section

Imaging Device (Type) 1.0-type (13.2 mm x 8.8 mm) back-illuminated Exmor R CMOS sensor

Effective Picture Elements Approx.14.2M pixels (16:9)/Approx.10.6M pixels (4:3)

Built-in Optical Filters OFF: Clear, 1: 1/4ND, 2: 1/16ND, 3: 1/64ND

Minimum Illumination [60i]*2 3lux (1/60 Shutter Speed, iris/gain AUTO [50i]*3 3lux (1/50 Shutter Speed, iris/gain AUTO)

[60i]*2 1.7lux (1/30 Shutter Speed, iris/gain AUTO) [50i]*3 1.7lux (1/25 Shutter Speed, iris/gain AUTO)

Shutter Speed [60i]*2 : 1/8 - 1/10,000 (1/6 - 1/10,000 when shooting with 24p)

[50i]*3 : 1/6 -1/10,000

Slow & Quick Motion Function [60i]*2 :1080p: Frame rate selectable 1.2.4.8.15.30, 60 fps

[50i]*3 : 1080p: Frame rate selectable 1.2.3.6.12.25, 50 fps

White Balance Preset (Indoor:3200K, Outdoor:5600K±7 steps, Color temparature set range: 2300-15000K)

Onepush A, B, Auto selectable

Gain -3, 0, 3, 6, 9, 12,15, 18, 21, 24, 27, 30, 33 dB, AGC

Gamma Curve Selectable

Input/Output

Audio Input XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable

Video Output Integrated into Multi/Micro USB jack (×1), Composite 1.0Vp-p, 75Ω

Audio Output Integrated into Multi/Micro USB jack

SDI Output BNC (x1), 3G/HD/SD

SMPTE 424M/292M/259M standards

USB Multi/Micro USB jack (x1)

Headphone Output Stereo mini jack (x1)

Speaker Output Monaural

DC Input DC jack

Remote Integrated into Multi/Micro USB jack

HDMI Output Type A (x1)

Monitoring

Viewfinder 1.0 cm (0.39 type) OLED Approx. 1.44M dots

LCD 8.8 cm (3.5 type) Approx. 1.56M dots.

Built-in Microphone

Built-in Microphone Omni-directional stereo electret condenser microphone.

Media

Type Memory Stick Pro Duo™ and SD/SDHC/SDXC compatible x1, SD/SDHC/SDXC x1

Wi-Fi/NFC

Supported format IEEE 802.11 b/g/n

Frequency band 2.4 GHz bandwidth

Security WEP/WPA-PSK/WPA2-PSK

NFC NFC Forum Type 3 Tag compliant

Streaming MPEG-2 TS/UDP

FTP FTP, FTPS

Supplied Accessoies

Supplied Accessoies XLR handle unit (1), Lens hood (1), Lens cap (1), Large eyecup (1), Accessory shoe kit (1), USB cable (1)

Rechargeable battery pack (NP-FV70) (1), AC Adaptor (AC-L200D) (1), Power cord (mains lead) (1)

Wireless Remote Commander (RMT-845) (1), Lithium battery (CR2025 for the Wireless Remote Commander (1),

Pre-installed to the Wireless Remote Commander,

Operating Guide (2), CD-ROM “Manuals for Solid-State Memory Camcorder” (1), Warranty (1)

Notes

*1 The values for dimensions are approximate.

*2 [60i] : when [60i/50i SEL] is set to 60i



*3 [50i] : when [60i/50i SEL] is set to 50i
