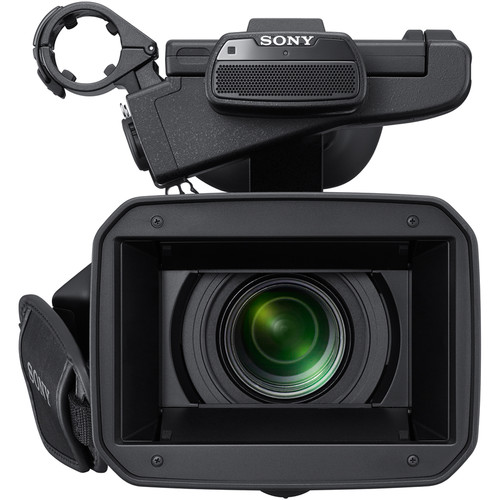

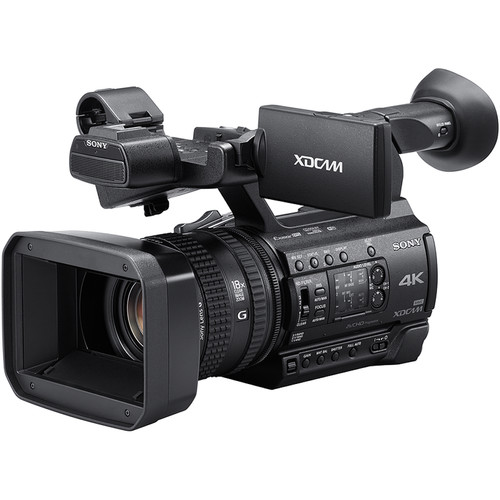

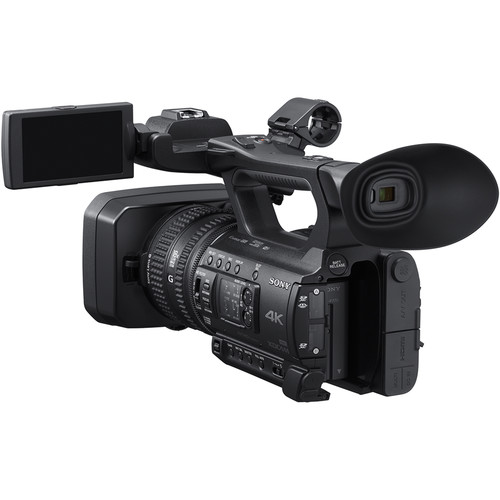

กล้องวีดีโอ Sony PXW-Z150 4K XDCAM Camcorder

Camera

Sensor

1.0"-type / 13.2 mm x 8.8 mm back-illuminated Exmor RS CMOS sensor

Pixel Count

Total: 20 MP (approximately)
Effective: 14.2 MP (approximately)

Built-In ND Filters

Clear, 1/4, 1/16, 1/64

Minimum Illumination

1.7 lux (Low Lux mode)

Shutter Speed

60i: 1/8 - 1/10,000
50i: 1/6 -1/10,000
24p: 1/6 - 1/10,000

Slow & Quick Motion Function

XAVC Long - HD Only
60i: 1,2,4,8,15,30,60 fps
50i: 1,2,3,6,12,25,50 fps

MPEG HD
60i: 1,2,4,8,15,30 fps
50i: 1,2,3,6,12,25 fps

AVCHD
60i: 1,2,4,8,15,30,60 fps
50i: 1,2,3,6,12,25,50 fps

Super Slow Motion

XAVC - HD Only
60i: 120 fps
50i: 100 fps

White Balance

Preset
Indoor: 3200K
Outdoor: 5600K±7 steps
Color temperature set range: 2300-15000K
Onepush
A, B, Auto selectable

Gain

-3, 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30, 33 dB, AGC

Gamma Curve

Selectable

Lens

Zoom Ratio

Optical: 12x (optical)
Clear Image Zoom: 18x (4K) / 24x (HD)
Digital Zoom: 48X (HD)

Focal Length

9.3 to 111.6mm

35mm Equivalent Focal Length

29 to 348mm (16:9)

Iris

f/2.8 to f/4.5, auto/manual selectable

Focus

AF/MF selectable

Image Stabilizer

ON/OFF selectable, shift lens

Filter Diameter

62 mm

Recording

Video Format

3840 x 2160
XAVC Long/MPEG-4 AVC/H.264 8-bit at 100/60 Mb/s

1920 x 1080
XAVC Long/MPEG-4 AVC/H.264 at 50/35/25Mb/s
MPEG HD 4:2:2 8-bit at 50Mb/s
MPEG HD 4:2:0 8-bit at 35Mb/s
AVCHD MPEG-4 AVC/H.264 AVCHD 2.0 28/24/17Mb/s

1440 x 1080
MPEG HD 4:2:0 at 35Mb/s

1280 x 720
XAVC Long/MPEG-4 AVC/H.264 at 50/35/25 Mb/s
MPEG HD 4:2:2 8-bit at 50 Mb/s
MPEG HD 4:2:0 8-bit at 35 Mb/s
AVCHD MPEG-4 AVC/H.264 AVCHD 2.0 at 24/17/9 Mb/s

Color Sampling

XAVC Long
4K: 4:2:0 8-bit
HD: 4:2:2 10-bit

MPEG2HD
HD: 4:2:2 8-bit
HD: 4:2:0 8-bit

Audio Format

XAVC Long: Linear PCM 2ch, 24-bit, 48 kHz
MPEG HD 4:2:2: Linear PCM 2ch, 24-bit, 48 kHz
MPEG 4:2:0: Linear PCM 2ch, 16-bit, 48 kHz AVCHD: Linear PCM 2ch, 16-bit, 48 kHz / Dolby Digital 2ch, 16-bit, 48 kHz

Recording Frame Rate

3840 x 2160p
XAVC Long/MPEG-4 AVC/H.264: 29.97/25/23.98

1920 x 1080p
XAVC Long/MPEG-4 AVC/H.264: 59.94/50/29.97/25/23.98
MPEG HD 4:2:2: 29.97/25/23.98
MPEG HD 4:2:0: 29.97/25/23.98
AVCHD MPEG-4 AVC/H.264 AVCHD 2.0: 59.94/50/29.97/25/23.98

1920 x 1080i
XAVC Long/MPEG-4 AVC/H.264: 59.94/50

1440 x 1080i
MPEG HD 4:2:0: 59.94/50

720 x 1280p
XAVC Long/MPEG-4 AVC/H.264: 59.94/50
MPEG HD 4:2:2: 59.94/50
MPEG HD 4:2:0: 59.94/50
AVCHD MPEG-4 AVC/H.264 AVCHD 2.0: 59.94/50

Recording/Playback Time

64GB
3840 x 2160
XAVC Long/MPEG-4 AVC/H.264 at 100 Mb/s: Approx. 65 min
XAVC Long/MPEG-4 AVC/H.264 at 60 Mb/s: Approx. 100 min

1920 x 1080
XAVC Long/MPEG-4 AVC/H.264 at 50Mb/s: Approx. 120 min
XAVC Long/MPEG-4 AVC/H.264 at 35Mb/s: Approx. 170 min
XAVC Long/MPEG-4 AVC/H.264 at 25Mb/s: Approx. 220 min

MPEG HD 4:2:2 at 50Mb/s: Approx. 170 min

MPEG HD 4:2:0 at 35Mb/s: Approx. 170 min

AVCHD MPEG-4 AVC/H.264 AVCHD 2.0 at 28Mb/s: Approx 290 min
AVCHD MPEG-4 AVC/H.264 AVCHD 2.0 at 24 Mb/s: Approx 340 min
AVCHD MPEG-4 AVC/H.264 AVCHD 2.0 at 17 Mb/s: Approx 450 min

720 x 1280p
AVCHD MPEG-4 AVC/H.264 AVCHD 2.0 at 9 Mb/s: Approx 750 min

Monitoring

Viewfinder

0.39"-type / 1.0 cm (approx. 1.44 M dots)

LCD Monitor

3.5" / 8.8 cm (approx. 1.56 M dots)

Input/Output

SDI Out

1 x BNC (3G-SDI)

HDMI Output

1 x Type A

Composite Out

1 x RCA

Audio Input

2 x XLR (3-pin), line/mic/mic +48 V selectable

Accessory Shoe

1 x Multi Interface Shoe

Audio Output

RCA

USB

Multi/Micro jack

Headphone Output

1 x 3.5 mm stereo mini jack

Speaker Output

Monaural

DC Input

DC jack

Remote

1 x 2.5 mm stereo mini jack

Wi-Fi

Supported Formats

IEEE 802.11 b/g/n

Frequency Band

2.4 GHz

Security

WEP/WPA-PSK/WPA2-PSK

NFC

NFC Forum Type 3 Tag compliant

General

Media Type

1 x SD/SDHC/SDXC & Memory Stick Duo
1 x SD/SDHC/SDXC

Built-In Microphone

Omni-directional stereo electret condenser microphone

Power Requirements

Battery pack: 7.2 VDC
AC Adapter: 8.4 VDC

Power Consumption

Approx. 6.3 W (while recording with viewfinder and XAVC HD 1080/60i 50 Mb/s)
Approx. 6.6 W (while recording with LCD and XAVC HD 1080/60i 50 Mb/s)

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Dimensions (W x H x D)

Approx.: 6.7 x 7.4 x 14.6" / 171.3 x 187.8 x 371.3 mm (with the accessories, excluding the grip belt and including the projecting parts)

Weight

4.2 lb / 1.9 kg (body only)
5.1 lb / 2.30 kg (with Lens Hood, EVF Eyecup, and NP-F970 Battery)
