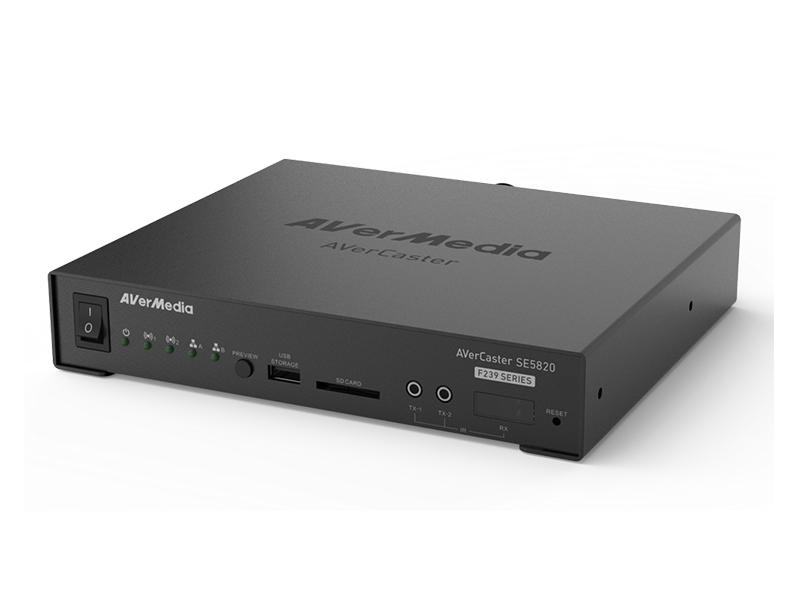

AVerCaster SE5820 Dual HDMI/3G-SDI Compact Encoder

Video Interface

HDMI 1.4b x 2

3G-SDI x 2

Audio embedded

Audio Interface

3.5mm Line-in x 2

3.5mm Mic-in x 1

XLR x 1

Channels

2

Max. Streaming or Recording Resolution

1080p60

Encoding Video Format

H.265, H.264

Protocol*

TCP, UDP, RTMP

Preview Output

HDMI 1.4b

Layout

PIP, PBP, single, customized layout

Streaming and Recording

2 to 2 Mode: 2 streams with independent audio/video input, encode setting and streaming protocol.

1 to 2 Mode: Stream the same audio/video content to different target network with independent encode setting and streaming protocols.

1, 1, 1 Mode: Simultaneous streaming and recording from the same video/audio source.  Recording to network mapped drive from NAS and Windows shared folders.

Connectivity

Ethernet x 2

RS-485

Storage

NAS

USB 3.0 for local storage

SD card slot for local storage

Power

Locking power supply 12V/5A;

PoE (Power over Ethernet)

IR

IR Receiver (for remote control)

IR Blaster

Integration

API for integration and remote control

Accessory

Rack mount, DIN rail, VESA mount, wall mount

Operating Environment

0° to +50° (+32° F to +122° F)

Humidity: 0-80% RHNC

Storage Environment

-40° to +70° (-40° F to +158° F)

Humidity: 0-90% RHNC

Dimensions (L x W x H)

210.5mm x 179.2mm x 39.8mm

(8.29” x 7.06” x 1.57”)

Weight

962g (2.12lbs)
