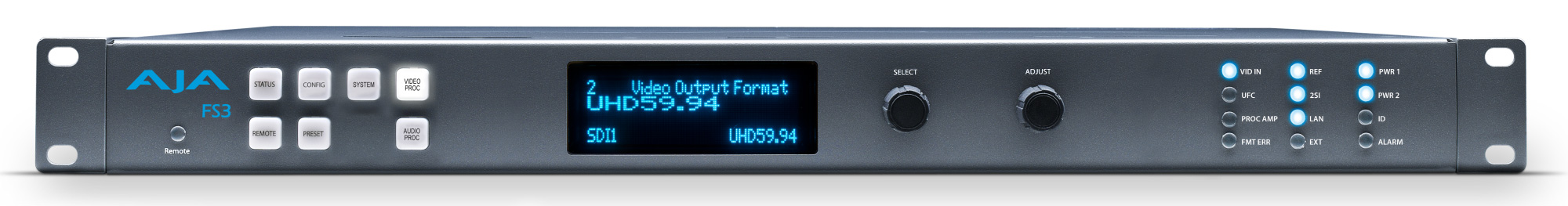

• Four 3G-SDI inputs, 2 BNC and up to 2 fiber (optional)
• 4x1 selector feeds video processor
• SD/HD/3G-SDI, SMPTE-259/292/424, 8 or 10-bits
  • 3G-SDI Level A, Level B-DL, or Level B-DS
  • Dual Link HD-SDI (2x1.5G), SMPTE -372
  • Single Link SD/HD/3G-SDI
• Fiber SDI, SMPTE-297, 8 or 10-bits (optional)
  • Dual Channel LC connector modules
  • Single Channel LC connector modules
  • Single Channel SC connector modules
• Formats and frame rates
  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 50, 59.94
  • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 50, 59.94
  • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 50, 59.94
  • (HD) 1920 x 1080i 50, 59.94
  • (HD) 1280 x 720p 50, 59.94
  • (SD) 625i 50
  • (SD) 525i 59.94
  • YCbCr, 4:2:2, 10-bit

• Twelve 3G-SDI outputs, 8 BNC and up to 4 fiber (optional)
• Video processor feeds all outputs
• SD/HD/3G-SDI, SMPTE-259/292/424, 8 or 10-bits
  • Quadrant (Square Division) or 2SI (Two Sample Interleave) 4K/UltraHD pixel mapping
  • 3G-SDI Level A, Level B-DL, or Level B-DS
  • Quad 3G-SDI for 4K/UltraHD p50/59.94 (3 copies on Quad SDI)
  • Dual 3G-SDI for 4K/UltraHD p23.98/24/25/29.97 (6 copies on Dual SDI)
  • Single Link SD/HD/3G-SDI (12 copies on single SDI)
• Fiber SDI, SMPTE-297, 8 or 10-bits (optional)
  • Dual Channel LC connector modules
  • Single Channel LC connector modules
  • Single Channel SC connector modules
• Formats and frame rates:
  • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 50, 59.94
  • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 50, 59.94
  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 50, 59.94
  • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 50, 59.94
  • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 50, 59.94
  • (HD) 1920 x 1080i 50, 59.94
  • (HD) 1280 x 720p 50, 59.94
  • (SD) 625i 50
  • (SD) 525i 59.94
  • YCbCr, 4:2:2, 10-bit

• 64-Channels via four 16-Channel audio disembedders (1 disembedder per SDI input)
• SD/HD/3G-SDI, SMPTE-272/299
• 20-bit SD, 24-bit HD/3G, 48 kHz sample rate
• Drop/repeat sample rate conversion to match output reference

• 64-Channels via four 16-Channel audio embedders
• SD/HD/3G-SDI, SMPTE-272/299
• 20-bit SD, 24-bit HD/3G, 48 kHz sample rate
• 64 x 64 mono audio matrix

• Proc amp controls
• Color corrector
• Legalizer
• Frame rate conversion (3:2, 1:2, 2:1)
• Delay 0-6 frames with H and V controls
• Closed Captioning conversion (CEA-608/CEA-708)
• AFD input detection, down-convert control, and output pass through or overwrite
• Freeze (manual or on input signal loss) to black or last good frame
• Matte generator for background fill
• Video test generator
• Nominal video delay
  • 4K/UltraHD, 3 frames (LFR), 6 frames (HFR)
  • HD/SD, 2 frames (LFR), 4 frames (HFR)

Convert any supported input HD/SD format to any supported 4K/UltraHD/HD/SD output format, as long as the input and output frame rates are of the same frame rate family. These three families are:
• 59.94, 29.97, 23.98
• 50, 25
• 24

• Zoom in and out
• Reposition
• Region of Interest

• SD/HD/2K to UltraHD/4K
• SD to HD/2K
• Hardware 10-bit
• Zoom 14:9: results in a 4:3 image zoomed slightly to fill a 14:9 image with black side bars
• Zoom Letterbox: results in image zoomed to fill full screen
• Zoom Wide: results in a combination of zoom and horizontal stretch to fill a 16:9 screen; this setting will introduce a small aspect ratio change

• HD/2K to SD
• Hardware 10-bit
• Anamorphic: fullscreen
• Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
• Crop: image is cropped to fit new screen size

• Letterbox: This transforms SD anamorphic material to a letterboxed image
• H Crop: Will produce a horizontally stretched effect on the image; transforms anamorphic SD to full frame
• SD Pillarbox: Will produce an image in the center of the screen with black borders on the left and right sides and an anamorphized image in the center
• V Crop: Will transform SD letterbox material to an anamorphic image

• 64 x 64 mono audio matrix, route 1 to 1, 1 to many
• Independent controls for each channel
  • Gain +18 to -18 dB in 0.5 dB steps
  • Delay -16ms to 256 ms in 20.8 us steps
  • Phase invert
• 5.1 or 7.1 to stereo mixdown with gain adjust
• Audio test generator

• SDI RP188 via SDI BNC

• Blackburst or tri-level sync
• Looping, nonterminating

• 10/100/1000 Ethernet (RJ-45)
• Embedded web server for remote control

• GPI in/out, 15-pin D-connector
  • Pinout is as follows :

    1	GND	9	GPI OUT 2
    2	GPI IN 1	10	GPI I/O GND 3
    3	GPI IN 2	11	GPI I/O GND 4
    4	GPI IN 3	12	GPI OUT 3
    5	GPI I/O GND 1	13	GPI OUT 4
    6	GPI I/O GND 2	14	NC
    7	GPI IN 4	15	GND
    8	GPI OUT 1

• RS-422, Sony 9-pin protocol (reserved for future use)

• 17.5” x 16" x 1.75" 1RU (444.5mm x 406.5mm x 44.45mm)

• 7.9 lb (3.6 kg)

• 100-240 VAC 50/60 Hz (Dual, redundant power supplies), 55W typical; 80W max.

• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)

• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)

• Operating Relative Humidity: 10-90% noncondensing

• Operating Altitude: <3,000 meters (<10,000 feet)
