AJA 3GDA 1x6 3G/HD/SD Reclocking Distribution Amplifier

AJA 3GDA 1x6 3G/HD/SD Reclocking Distribution Amplifier
รหัสสินค้า SKU-00496
หมวดหมู่ MINI CONVERTER
ราคา 17,773.00 บาท
VAT7% กรุณาติดต่อสอบถาม
สถานะสินค้า พร้อมส่ง
ลงสินค้า 21 ส.ค. 2562
อัพเดทล่าสุด 31 ส.ค. 2566
คงเหลือ ไม่จำกัด
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
Tags : จำหน่าย AJA 3GDA 1x6 3G/HD/SD Reclocking Distribution Amplifier, จำหน่าย AJA, 3GDA 1x6, 3G/HD/SD, Reclocking Distribution Amplifier, 3GDA ราคา, aja 3gda, 3gda

รายละเอียดสินค้า

จำหน่าย AJA 3GDA 1x6 3G/HD/SD Reclocking Distribution Amplifier

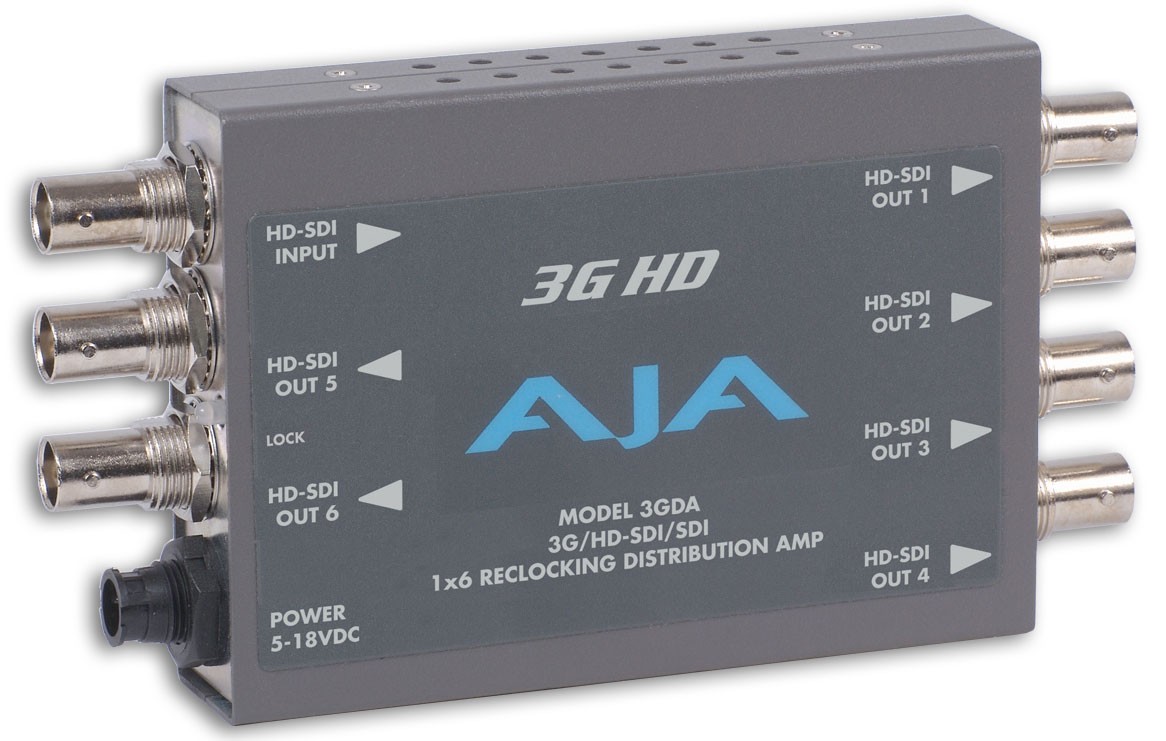

The 3GDA is a miniature, low-cost 1x6 3G HD-SDI/HD-SDI/SDI re-clocking distribution amplifier. Featuring six separately buffered SDI outputs, the 3GDA provides automatic input detection, re-clocking and cable equalization.
Features
  • Compact SD/HD distribution
  • Six separately buffered outputs
  • 3G/HD/SD-SDI input, auto sensing
  • 3G cable equalization (1694 coax)
  • SD: 270mb, 350m, HD: 1.5Gb, 200m
  • Passes all ancillary data test
Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Quality - Guaranteed
All AJA Mini-Converters are covered by a five year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.

AJA Mini-Matrix
Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.

Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini-Matrix app for iPad® and iPhone® is available now in the Apple iTunes® Store.



Download from the App Store


SPECIFICATIONS

Tech Specs

Video Formats

• 100 Mbps - 3 Gbps, format agnostic



Video Input Digital

• 1 x 3G-SDI BNC, SMPTE-259/292/424



Video Output Digital

• 6 x 3G-SDI BNC, SMPTE-259/292/424



Cable Equalization

(Belden 1694A coax)
• 3 Gbps, 120m
• 1.5 Gbps, 200m
• 270 Mbps, 350m



Input / Output Return Loss

• >15db, 270 Mb - 3 Gb



Reclocking

• 2.970 Gbps, 2.967 Gbps, 1.485 Gbps, 1.483 Gbps, 270 Mbps - Auto Select
• All other rates are passed through and not reclocked



Size (w x d x h)

• 5.8" x 3.1 x 1" (131mm x 79mm x 25mm)



 Weight

• 0.7 lb (0.3 kg)



Power

• +5-18VDC, regulated, 3 watts, power supply required, included with purchase
• AC Adapter: 100-240VAC, 50/60 Hz, universal input



Environment

• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
