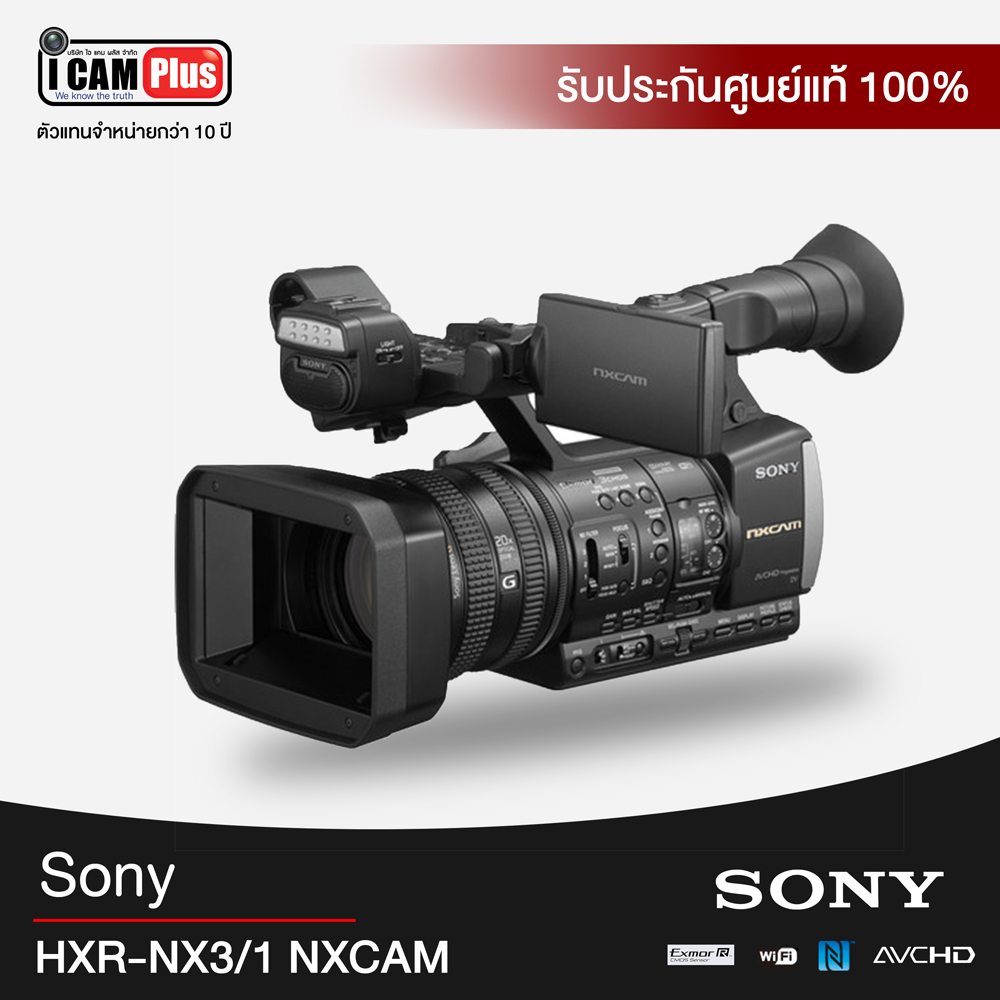

กล้องวีดีโอ Sony HXR-NX3/1 NXCAM Professional Handheld Camcorder

Camera

Sensor

3 x 1/2.8" Exmor CMOS Sensor

Pixel Count

Total: 2.41 Megapixel
Effective: 2.07 Megapixel

Minimum Illumination

60i: 1.2 lux (1/30 shutter speed, auto iris/gain)
60i: 0.6 lux (1/30 shutter speed, auto iris, gain 30dB)

Shutter Speed

1/4 to 1/10,000 second

White Balance

Preset (Outdoor:5600K), A, B

Gain

-6, -3, 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30 dB, AGC

Gamma Curve

Selectable

Built-In ND Filters

Clear, 1/4, 1/16, 1/64

Video Signal

NTSC: EIA standards
HDTV: 1080/60i, 1080/60p, 720/60p specification.
PAL: CCIR standards
HDTV: 1080/50i, 1080/50p, 720/50p specification.

Lens

Lens Mount

Fixed

Zoom Ratio

20x (optical), servo/manual

Focal Length

4.1 to 82.0 mm

35mm Equivalent Focal Length

28.8 to 576.0mm (16:9)
35.2 to 705.0mm (4:3)

Iris

f/1.6 to f/11, auto/manual selectable

Focus

AF/MF selectable

Minimum Focus Distance

Wide: 0.4" (10.0 mm) Tele: 31.5"(800.0 mm)

Image Stabilizer

ON/OFF selectable, shift lens

Filter Diameter

72mm

Recording

Video Format

HD
XAVC S HD
MPEG-4 AVC/H.2264 AVCHD 2.0

SD
DV (AVI)

MP4
MPEG-4/H.264 with MP4 wrapper

Audio Format

HD: Linear PCM 2ch, 16-bit, 48 kHz / Dolby Digital 2ch, 16-bit, 48 kHz
SD: Linear PCM 2ch, 16-bit, 48 kHz
MP4: AAC 2ch, 16-bit, 48 kHz

Resolutions & Frame Rates

HD
PS (28Mbps): 1920 x 1080/60p, 16:9
FX (24Mbps): 1920 x 1080/60i, 30p,24p, 16:9, 1280 x 720/60p, 16:9
FH (17Mbps): 1920 x 1080/60i, 30p,24p, 16:9, 1280 x 720/60p, 16:9
HQ (9Mbps): 1440 x 1080/60i, 16:9, 1280 x 720/60p, 16:9
LP (5Mbps): 1440 x 1080/60i, 16:9

SD
DV (25Mbps): 720 x 480/60i, 16:9, 4:3

MP4
MP4 (3.5Mbps): 1280 x 720/30p, 24p, 16:9

Recording/Playback Time

Approx. 290min(SDXC 64GB, PS, LPCM)
Approx. 340min(SDXC 64GB, FX, LPCM)
Approx. 450min(SDXC 64GB, FH, LPCM)

Monitoring

Viewfinder

0.45" LCD
852 x 480
Aspect Ratio: 16:9

Note: Viewfinder and LCD monitor cannot be used simultaneously

LCD Monitor

3.5" LCD monitor
Effective Pixels: Approx. 921,000
640 x 480
Aspect Ratio: 16:9

Note: Viewfinder and LCD monitor cannot be used simultaneously

Input/Output

HDMI Output

1 x Type A

Composite Output

1 x BNC, NTSC

Audio Input

2 x XLR (3-pin), line/mic/mic +48 V selectable

Audio Output

RCA pin

USB

mini-AB USB 2.0, mass storage/host

Headphone Output

1 x 3.5 mm stereo mini jack

Speaker Output

Monaural

DC Input

DC jack

Remote

1 x 2.5 mm stereo mini jack

General

Media Type

1 x SD/SDHC/SDXC & Memory Stick Duo
1 x SD/SDHC/SDXC

Built-In Microphone

Omni-directional stereo electret condenser microphone

Built-in Light

LED
Luminous Intensity: Approx. 200 lx at 3.3' (1.0 m), Approx. 800 lx at 16.4' (5.0 m)
Lighting Angle: Approx. 30°
Color Temperature: Approx. 5,500K

Wi-Fi

IEEE 802.11 b/g/n
2.4 GHz bandwidth
Security: WEP/WPA-PSK/WPA2-PSK
NFC Forum Type 3 Tag compliant

Accessory Shoe

1 x Standard shoe mount

Power Requirements

Battery pack: 7.2 VDC
AC Adapter: 8.4 VDC

Power Consumption

Approx. 6.4 W with XLR mic while recording, EVF On, Video light Off
Approx. 6.9 W with XLR mic while recording, LCD monitor On, Video light Off

Operating Temperature

32 to 104°F (0 to 40°C)

Storage Temperature

-4 to 140°F (-20 to 60°C)

Dimensions (W x H x D)

Approx. 6.9 x 7.60 x 15.5" (174.5 x 193.0 x 393.0 mm) with lens hood, eye piece

Weight

With Lens Hood: Approx. 4.87 lb (2.21 kg) With Lens Hood, EVF Eyecup, and NP-F970 Battery: Approx. 5.60 lb (2.54 kg)
