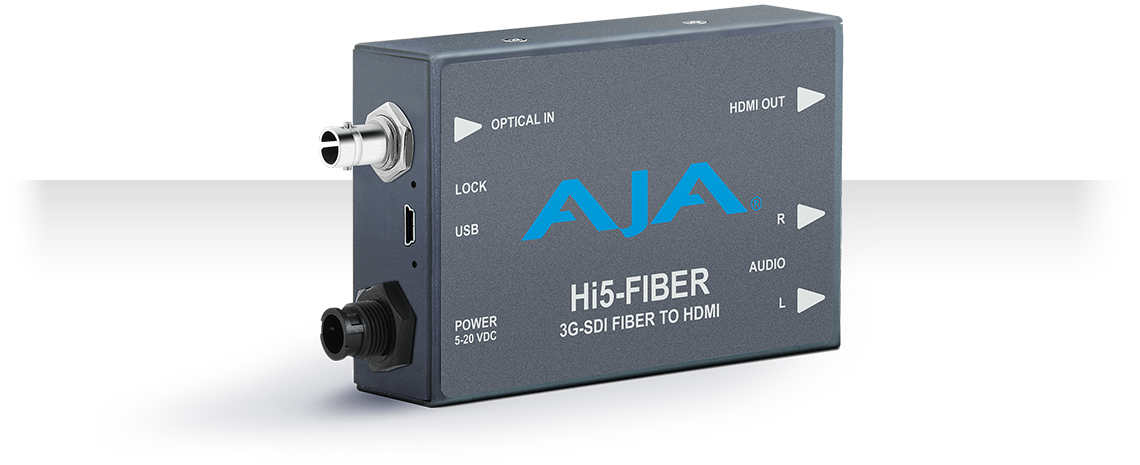

AJA Hi5-Fiber 3G-SDI over Fiber to HDMI Video and Audio Converter

AJA Hi5-Fiber 3G-SDI over Fiber to HDMI Video and Audio Converter
รหัสสินค้า SKU-00520
หมวดหมู่ MINI CONVERTER
ราคา 31,275.00 บาท
VAT7% กรุณาติดต่อสอบถาม
สถานะสินค้า พร้อมส่ง
ลงสินค้า 22 ส.ค. 2562
อัพเดทล่าสุด 31 ส.ค. 2566
คงเหลือ ไม่จำกัด
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
Tags : จำหน่าย AJA, Hi5-Fiber, 3g-sdi, over Fiber, HDMI Video and Audio Converter, hdmi video, audio converter, Converter, 3g fiber

รายละเอียดสินค้า

จำหน่าย AJA Hi5-Fiber 3G-SDI over Fiber to HDMI Video and Audio Converter
Hi5-Fiber converts 3G-SDI over single mode 1310 nm Fiber optic cable (ST-style Fiber connector) to HDMI for driving HDMI monitors. Embedded 8-channel 3G-SDI audio is supported in the HDMI output allowing a convenient single cable audio/video connection. Hi5-Fiber provides 2-Channel RCA style audio outputs for separate audio monitoring if needed.
Features
  • Fiber optic 3G-SDI to HDMI
  • Supports single mode 1310 nm fiber optic cable with ST receiver
  • Full HDMI support including embedded audio
  • Additional 2-Channel RCA jack audio output
  • No configuration necessary
  • 1m HDMI cable included
  • five year warranty

Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.


Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.


AJA Quality - Guaranteed
All AJA Mini-Converters are covered by a five year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.


AJA Mini-Matrix
Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.

Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini-Matrix app for iPad® and iPhone® is available now in the Apple iTunes® Store.

SPECIFICATIONS

Tech Specs

Video Formats

• (2K) 2K x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (2K) 2K x 1080PsF* 23.98, 24, 25, 29.97, 30
• (HD) 1080i 50, 59.94, 60
• (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1080PsF* 23.98, 24, 25, 29.97, 30
• (HD) 720p 50, 59.94, 60
• (SD) 625i
• (SD) 525i



*NOTE: converts to progressive



Video Input

• Single mode optical fiber, ST connector supporting SMPTE-259/292/424 3G/HD/SD-SDI



Video Outputs

• HDMI with embedded audio up to 8-Channels
  (selectable by Mini-Config)
  • 12-bit
  • 10-bit YCbCr 4:2:2
  • 8-bit RGB 4:4:4



Audio Input

• SDI embedded audio, select from 16-Channels



Audio Output

• 2-Channel RCA style (-10dBu nominal)



Size (w x d x h)

• 4.4” × 2.4” × 1.0” (112mm × 61mm × 25mm)



Weight

• 0.4 lb (0.2 kg)



Power

• Uses AJA power supply model DWP-U-R1, included with purchase
  • 100-240V, 50/60 Hz universal input
  • +5V DC regulated, 3 watts



Environment

• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
