KUMO 6464 Compact 64x64 3G-SDI Router
Tags : KUMO 6464 Compact 64x64 3G-SDI Router, KUMO6464 Video Router ขาย, Kumo, aja kumo, kumo 64, SDI Router, kumo 6464 ราคา, aja kumo ราคา
รายละเอียดสินค้า

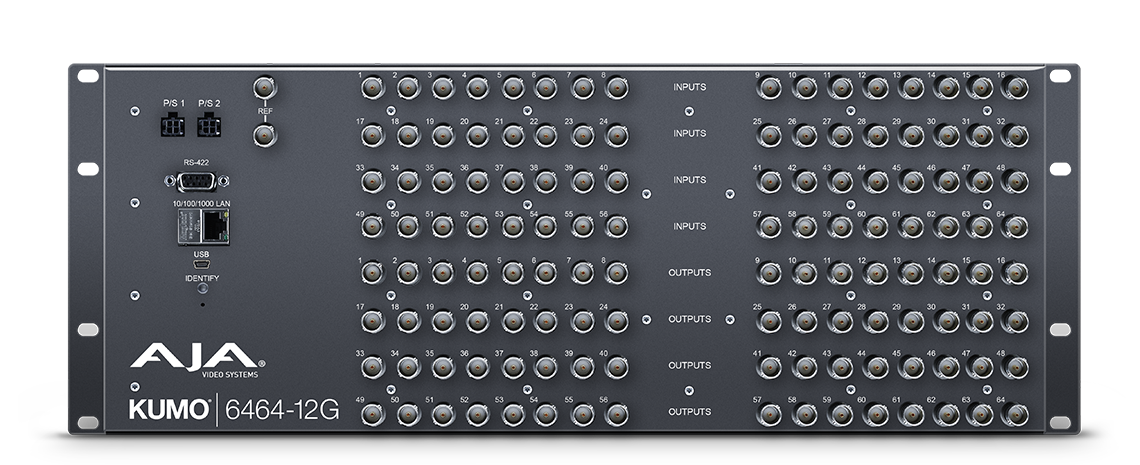

จำหน่าย KUMO 6464-12G Compact 64x64 12G-SDI Router
KUMO 6464-12G offers increased capacity for larger configurations while maintaining a compact 4RU profile with support for 12G-SDI/6G-SDI/3G-SDI/1.5G-SDI with 64x 12G-SDI inputs and 64x 12G-SDI outputs.
KUMO 12G-SDI routers support large format resolutions, high frame rate (HFR) and deep color formats while reducing cable runs when transporting 4K/UltraHD over a single SDI link. Multi-link gang control also offers routing of up to 8K resolutions. The router offers network-based and physical control using KUMO CP and CP2 and mirrors the physical form of AJA’s production-proven KUMO 6464 router, with a USB port for configuring IP addresses via AJA’s free eMini-Setup software.
Built to the same quality standards as all AJA KUMO products, KUMO 6464-12G is the ideal choice for any situation where a balance of size, performance and capacity are critical such as post facilities and mobile trucks.
Features
64x 12G-SDI inputs and 64x 12G-SDI outputs
Compact 4RU form factor, very slim depth
Single cable support for 4K/UltraHD
Multi-port gang control for resolutions up to 8K
Redundant power supply option
Eight salvos per router
Embedded web server for remote control
USB port to easily configure the router’s IP address
5 year warranty
SPECIFICATIONS
Video Format
- 270 Mbps, 1.5 Gbps, 3 Gbps, 6 Gbps, 12 Gbps SDI
- 270 Mbps DVB-ASI
- Format agnostic, 270 Mbps - 12 Gbps
Video Input Digital
- 12G-SDI Inputs
- 64x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
Video Output Digital
- 12G-SDI Outputs
- 64x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
- Noninverting
Ancillary Data
- Passes all SDI embedded ancillary data including audio
Salvo
- Up to 8 Salvos can be configured and saved in each KUMO router
Cable Equalization
(Belden 1694A)
- 12Gbps, up to 50m
- 6Gbps, up to 90m
- 3Gbps, up to 180m
- 1.5Gbps, up to 210m
- 270Mbps, up to 390m
- Automatic operation
Reclocking
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
- All other rates are passed through and not reclocked
Switching Modes
- Single, Dual, and Quad link modes
- Switches in vertical blanking per SMPTE RP-168
Control Panel Compatibility
- AJA KUMO CP (First 32 I/O in Normal, all I/O in Dual or Quad mode) – 1RU X-Y Ethernet control panel
- AJA KUMO CP2 (Single, Dual or Quad mode) – 2RU X-Y Ethernet control panel
Reference Input
- External, 2x BNC
- Looping, nonterminating
- Blackburst or tri-level sync
Network Interface
- 1x RJ-45, 10/100/1000 Ethernet
- Supports AJA KUMO Ethernet control panels, direct connect or networked
- Basic support for Grass Valley Native Protocol
- Embedded web server for remote control
USB Interface
- 1x Mini-USB for IP configuration using AJA eMini-Setup
Serial Interface
- 1x DB-9 Female, RS-422
- Basic support for Grass Valley Native Protocol
- 9-pin D-connector pinout is as follows:
|
1 |
GND |
|
2 |
TX- |
|
3 |
RX+ |
|
4 |
GND |
|
5 |
No Connection |
|
6 |
GND |
|
7 |
TX+ |
|
8 |
RX- |
|
9 |
GND |
|
Shell |
GND |
Size (w x d x h)
- 2RU - 17.4" x 1.54" x 3.50" (441.96 x 39.12 x 88.9 mm)
Weight
- 9.2 lbs (4.2 kg)
Power
- 10-14VDC regulated, power supply required, included with purchase
- AC Adapter: 100-240VAC, 50/60 Hz, universal input
Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
