OG-X-FR OpenGear-compatible 2RU Rackframe

OG-X-FR OpenGear-compatible 2RU Rackframe
รหัสสินค้า SKU-00564
หมวดหมู่ Open Gear
ราคา 0.00 บาท
VAT7% กรุณาติดต่อสอบถาม
สถานะสินค้า พร้อมส่ง
ลงสินค้า 25 ต.ค. 2562
อัพเดทล่าสุด 3 ก.ย. 2566
คงเหลือ ไม่จำกัด
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
Tags : OG-X-FR, openGear-compatible 2RU Rackframe, OG-X-FR openGear ราคา, openGear, OG-X-FR ราคา, openGear ราคา, AJA OG-X-FR OpenGear

รายละเอียดสินค้า

จำหน่าย OG-X-FR OpenGear-compatible 2RU Rackframe

openGear is an open-architecture, modular frame system designed by Ross Video and supported by a diverse range of terminal equipment manufacturers, including AJA.

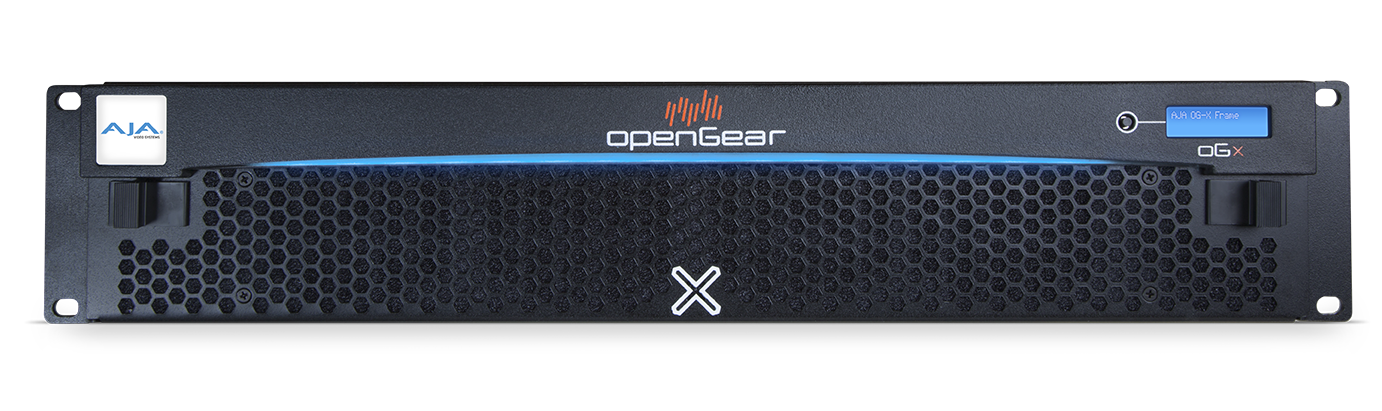

The AJA OG-X-FR is a 2RU high openGear frame which is compatible with any openGear card and offers Dashboard support for the latest AJA Dashboard compatible openGear cards. The frame has a 20-slot capacity with excellent cooling capabilities for high-density applications and compatibility with advanced openGear connectivity options for supported cards.

Features
2RU frame with capacity for up to 20 openGear cards
600 watt power supply with integral cooling, optional 2nd power supply
Front LCD display for name, IP address and fault identification
FrameGlow customized identification and alarming
Support for analog, digital, video, audio, SDI and IP modules in the same frame
Removable front door and air filter for easy fan servicing and maintenance
Standard DashBoard control system for setup, control and monitoring
Optional SNMP control and monitoring, and DataSafe card backup and restore
Includes preinstalled standard network card (MFC-8322-S)

SPECIFICATIONS

Frame Controller and Fans

  • Total Power: 50W maximum
    • Max. Power: +12V Rail 4A, 48W
    • Max. Power: -7.5V Rail 0.2A (1.5W)


GFC-8322

  • Total Power: 3.9W maximum
    • Max. Power: +12V Rail 0.2A (2.4W)
    • Max. Power: -7.5V Rail 0.2A (1.5W)


Reference Inputs

  • Number of Inputs: 2 looping
  • Level: 1Vpp nominal
  • Signal: Analog video sync (Blackburst or tri-level), or AES/EBU DARS
  • Impedance: 75 ohms terminating
  • Return Loss: >30 dB to 30 MHz
  • Maximum DC on REF Input: ±1V


Card Slots

  • 20 Slots
  • Total Power Available: 500W
  • Maximum Card Power:
    • High Density (Split) Rear Module: 15W per card, accommodates two openGear cards and requires two slots in the frame chassis
    • Standard Rear Module Accommodates one openGear card and requires two slots in the frame chassis: 30W per card, or 45W if the openGear card has integrated cooling.
    • Double Wide Rear Module: 60W per card, or 75W for a single card with integrated cooling, or 90W for a multi-slot assembly with integrated cooling and receiving power from two or more midplane connectors.


Size (w x d x h)

  • 2RU 19.0" x 16.82" x 3.5" (483 x 427 x 90 mm)


Power

  • Total    Sum of both outputs not to exceed 500W
    • Input: 6.3A (650W)
    • Output 1: 12V 41.6A, 500W maximum
    • Output 2: -7.5V 5A, 37.5W maximum


Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Operating Relative Humidity: <90% noncondensing
