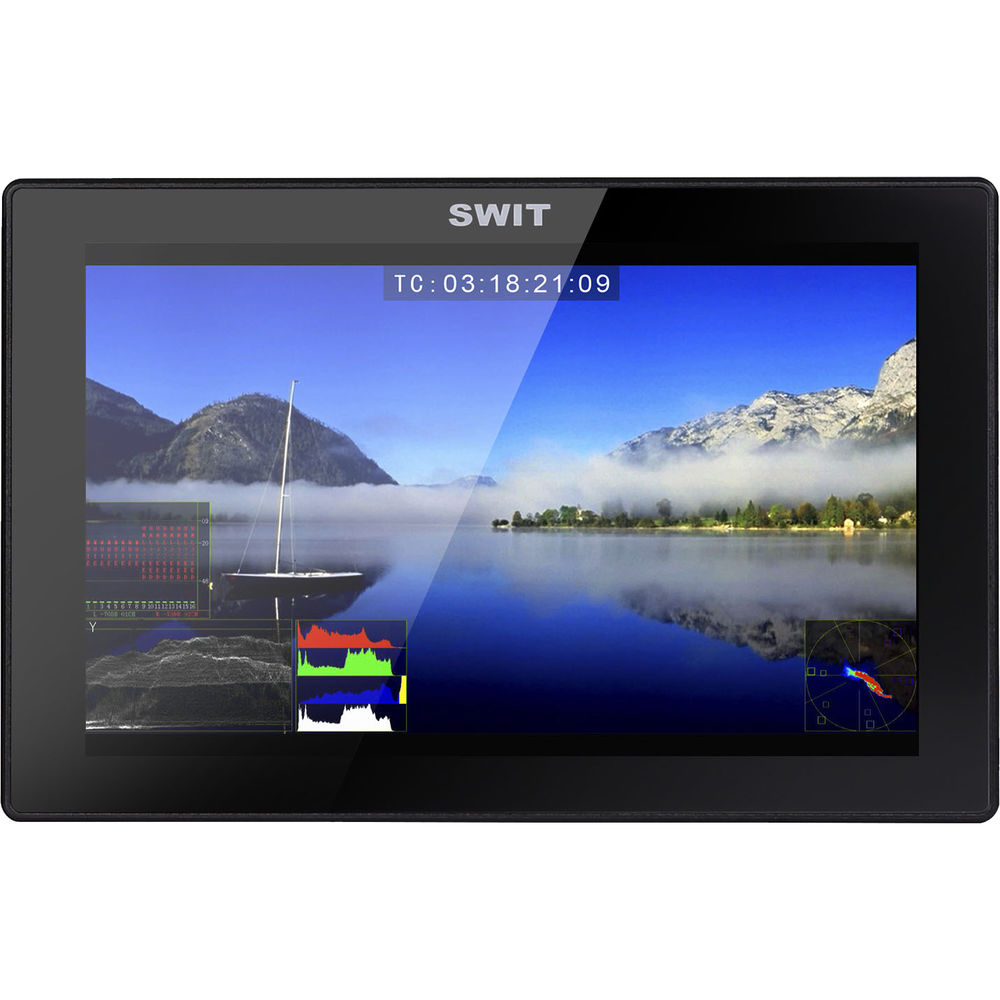

SWIT S-1073F 7" Full HD Waveform LCD Monitor with S-7006S V-Mount Battery Plate

with S-7006S V-Mount Battery Plate

7-inch FHD Waveform LCD Monitor

◆ 7” optical bonding LCD, 1920×1200

◆ All metal housing, thinner and robust

◆ 2K/3G/HD/SD-SDI input and loop out

◆ HDMI input, loop out, converted to SDI out

◆ 16-ch Embedded audio meters with alert

◆ Select any 2 audio channels to output

◆ 9-step quick zoom-in and mapping

◆ Red/blue Focus assist and precision adjust

◆ Multi-camera logs to Rec709 conversion

◆ User 3DLUT cube import via USB stick

◆ Waveform, Vector scope, Histogram R/G/B/Y

◆ AFD, timecode, H/V delay, Zebra stripes

◆ Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1

◆ False color, R/G/B/Mono, 100% colorbar

◆ GPI control and soft Tally display

◆ V / Gold mount and various DV plate install

◆ USB firmware upgrade



7-inch Full HD LCD



The S-1073F adopts a 7-inch LCD panel with LED backlight, optical bonding technical. The native resolution is Full HD 1920×1200, contrast 1000:1, and viewing angle is Horizontal: 160° / Vertical: 160°



SDI & HDMI



S-1073F monitor supports:

2K/3G/HD/SD-SDI input × 2

2K/3G/HD/SD-SDI loop output × 1

HDMI 1.3 input × 1

HDMI 1.3 loop output × 1

HDMI to SDI output × 1 (share SDI loop port)

3.5mm analog audio input × 1

3.5mm analog audio output × 1

GPI/TALLY input × 1

USB × 1 (firmware upgrade)

Build-in HDMI to SDI Conversion



S-1073F supports build-in HDMI to SDI conversion; share the SDI loop output port. It’s same format conversion and supports the following HDMI formats: 480i, 576i, 720p (60 / 59.94 / 50), 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98)Note: When both SDI and HDMI input, if the current display source is SDI, the SDI output port is SDI loop; and if the current display source is HDMI, the SDI output port is HDMI conversion output.
