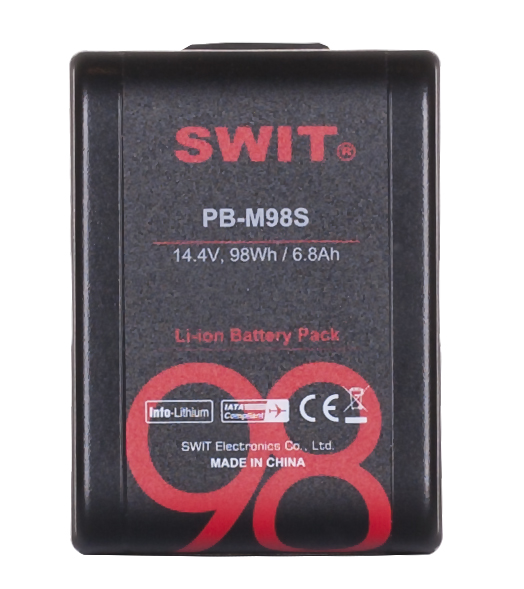

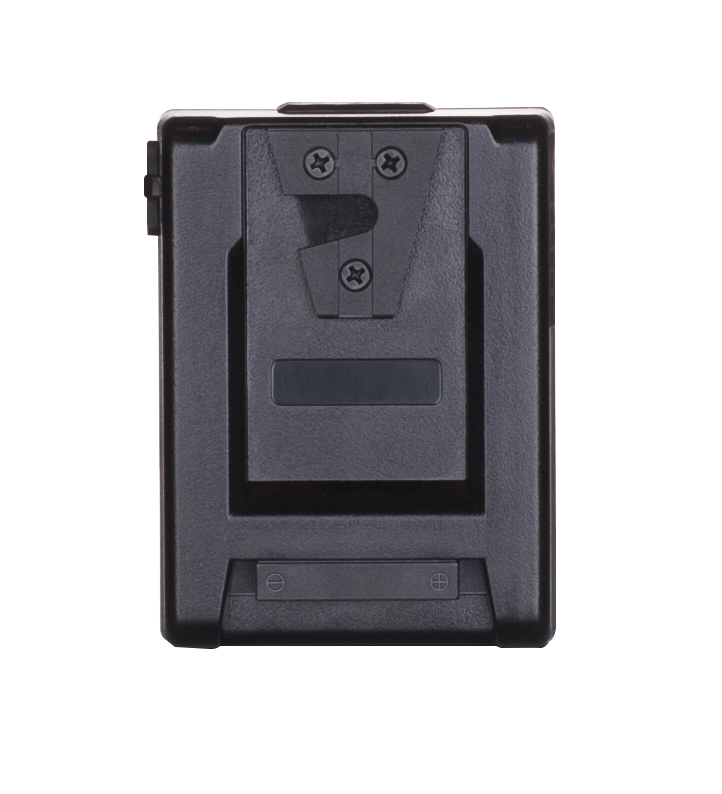

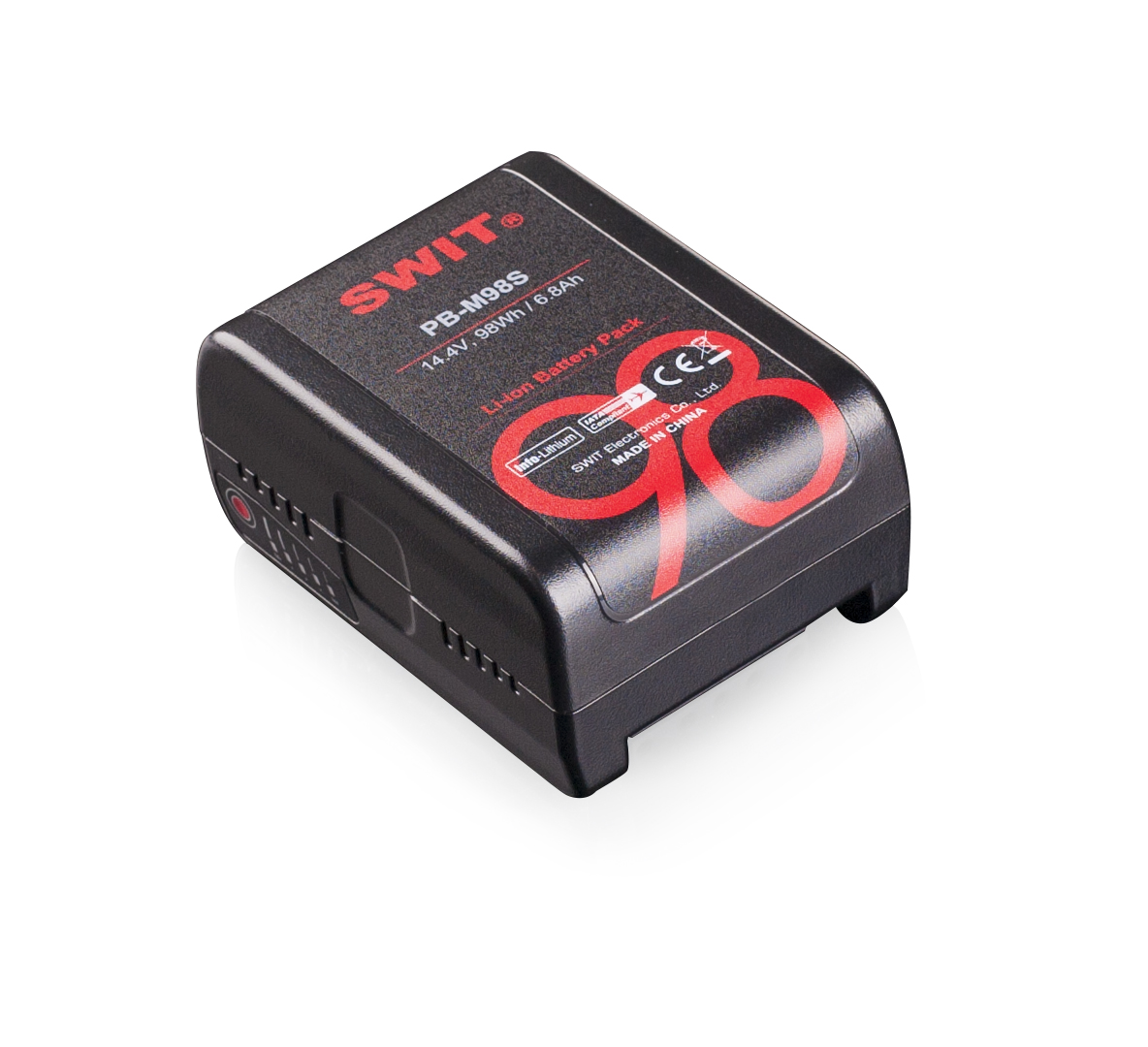

SWIT PB-M98S Pocket V-mount Battery



◆ Tiny V-mount battery, Pocket fit

◆ 98Wh/6.8Ah fly-friendly capacity

◆ Max 100W/8A constant load

◆ 1x D-tap output & charging input

◆ 1x USB 5V/2A output

◆ 5-step LED power indicator

◆ Power info for both SONY & RED

◆ Wire-Free internal technic

◆ Multiple circuit protections



Pocket fit size

The brick size V-mount batteries are always too big and heavy for field shootings, especially the handheld stabilizers, focus puller monitor, portable LED panel, or small cameras.

PB-M98S Pocket V-mount battery is designed for the above applications!

It’s only a DV battery size, with high capacity cells and still reaches 98Wh, and without any compromise on the DC sockets!



Max 100W/8A constant load

PB-M98S consists of 12pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 98Wh / 6.6Ah high capacity. You can take this battery in carry-on luggage to board airplane.

The Max constant load is 100W, 8A.



The pocket size PB-M98S still has D-tap and USB sockets built-in.

The D-tap socket share 100W/8A load DC output with the V-mount pins, and support charging input by SWIT PC-U130B2 dual D-tap charger.

The USB socket outputs 5V/2A for smart phone fast charging.



Low battery warning

PB-M98S has 5-LEDs to indicator remaining power percentage. When remaining power is less than 10%, the last LED will flash automatically to remind changing battery.



PB-M98S can be charged by all standard V-mount chargers and D-tap chargers. The max charging current is 3A.

The following chargers are recommended:

1. S-3822S, Portable 2-ch Simultaneous Charger

Charge 2x PB-M98S: Approx. 3 hours

2. PC-U130B2, Ultra-Portable Dual D-tap head charger

Charge 1x PB-M98S: Approx. 3 hours

Charge 2x PB-M98S: Approx. 5 hours and 15 minutes



PB-M98S can communicate with both SONY and RED cameras and display digital power info on camera viewfinder.



PB-M98S has innovative “Wire-Free” internal technic. All the cells, D-tap, USB, power indicator devices are directly soldered onto PCB, no connecting wires, to reduce internal resistance effectively, and make the circuit stable, safe, and reliable

High quality Lithium cells

For 20 years, SWIT has been leading brand of broadcast camera batteries. The first reason is the high quality Lithium cells we adopted.

The high quality cells featured long life, durable, safety, and most of all, the cells has very little difference to each other, which ensures the high performance of the whole battery pack.

Moreover, the cells we’re using, have a smooth discharging curve by voltage, so that you can judge the remaining running time accordingly. Also when in storage, the self-discharging rates are very little, that extends the battery life effectively.





Nominal voltage		14.4V
Capacity		98Wh,6.8Ah
Max output power	Pins	100W,8A
	D-TAP	100W,8A
	USB	10W,5V/2A
	In total	100W
Max charging current		3A
Charging temperature		0°C ~ 40°C (Recommended 10°C ~ 30°C)
Discharging temperature		-20°C ~ 50°C (Recommended 0°C ~ 40°C)
Mount type		V-mount
Net weight		510g
Dimensions		100×74×48mm
