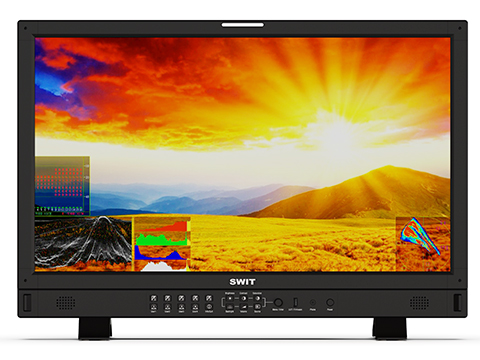

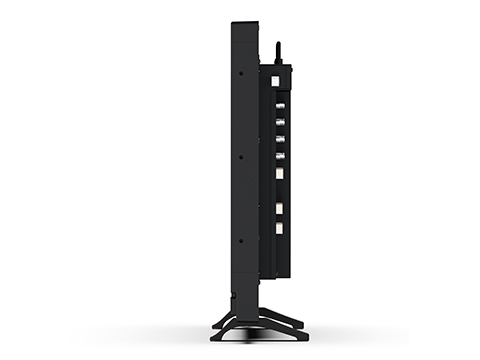

Swit BM-U275HDR 27-inch 4K 12GSDI HDR Studio LCD Monitor



◆27-inch LCD Panel, 3840×2160 resolution

◆1000nit high bright LED backlight

◆HLG/PQ/S-log3 HDR

◆12G-SDI / Quadlink 3G-SDI / HDMI2.0

◆SFP Fiber 12G input converted to 12GSDI out

◆3DLUT Auto Self-calibration without PC

◆Audio/Video 0 latency for lip-sync

◆Built-in Multi camera Delog LUTs

◆User 3DLUTs upload via USB

◆Waveform / Vector / Histogram

◆Focus assist / False color / Zebra

◆16-ch audio meters / Lissajous

◆IP webserver remote control

◆TSL UMD and text TALLY display

◆USB firmware upgrade



UHD panel, 97.2% DCI-P3

BM-U275HDR adopts a 27-inch 10-bit LCD panel, UHD 3840×2160 resolution, 1000nit high bright LED backlight, 1400:1 contrast, 100% REC709 and 97.2% DCI-P3 color gamut. The viewing angle is Horizontal: 178° / Vertical: 178°.



BM-U275HDR Monitor supports the following 4K interfaces:

12GSDI (SDI 1&2)

Quadlink 3GSDI (SDI 1-4)

HDMI 2.0 (4K60P)

SFP Fiber 12G (Output by 12GSDI)

* The Quadlink 3GSDI supports both Quad mode and 2SI interleave mode;

* The SFP optical fiber adaptor is optional purchased.



BM-U275HDR support HLG (Hybrid Log Gamma) and Dolby Vision PQ HDR monitoring, 1000nit high bright.

3DLUT Auto Self-Calibration



With built-in 3DLUT calibration software, (software copyright) support X-rite i1 and Jeti Specbos 1211 probes to directly connect with the monitor USB port.

The monitor generates color patterns and the color probes read the color, send color info to monitor via USB. Then the monitor compares the color difference and generate 3DLUT and calibrate itself automatically.

Calibration time: X-rite i1 15min, Specbos 1211 45min

Calibration result: ΔE≤1.0



Support Zero latency mode (less than 1/100 frame) under 4K input sources, for special image processing mode for lip-sync monitoring.



User 3DLUT cube upload

The monitor has built-in multi camera logs to Rec 709 conversion 3DLUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm.

You can also import own 3DLUTs to monitor by USB stick, support 17x17x17 3DLUT cube files.



Audio Meters and Lissajous



Support Max 16-ch embedded audio meters display, with VU/PPM, and display audio abnormal alert. Support select any 2 channels audio to output via speaker or 3.5mm headphone socket. Support audio Lissajous pattern display for post production.



BM-U275HDR supports webserver remote control by Ethernet LAN connection.

Use computer web browser to open the monitor control panel, and select input sources, adjust picture parameters, set up video / audio functions and assign function keys, etc, without install any APP.





LCD Performance
Size		27 inches
Display area		596.7×335.6mm
Resolution		3840×2160
Aspect ratio		16:9
Brightness		1000nit
Contrast		1400:1
Color depth		1.073G colors, 10 bit
Signal process		18 bit
Viewing		178°(H)∕178°(V)

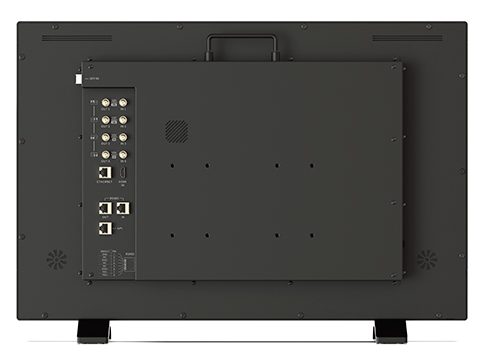

Input
BNC ×2		12G/6G/3G/HD/SD-SDI input
BNC ×2		3G/HD/SD-SDI input
HDMI ×1		HDMI 2.0 input
SFP ×1		Optical Fiber 12G input (By optional SFP adaptor)
RS485 ×1		TSL 3.1/4.0 UMD input
RS485 ×1		GPI (Tally) input
RJ45 ×1		1000M Ethernet input for Webserver IP control
Output
BNC ×2		12G/6G/3G/HD/SD-SDI loop output, SFP Fiber input to 12G output
BNC ×2		3G/HD/SD-SDI loop output
RS485 ×1		TSL 3.1/4.0 UMD output
Analog audio		3.5mm headphone and speaker
Video Format
SDI 1&2, SFP		4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
		3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
		2048×1080i (50 / 59.94 / 60)
		1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
		1080i (60 / 59.94 / 50)
		1080psf (30 / 29.97 / 25 / 24 / 23.98)
		720p (60 / 59.94 / 50)
		480i (59.94)
SDI 3&4		2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
		2048×1080i (50 / 59.94 / 60)
		1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
		1080i (60 / 59.94 / 50)
		1080psf (30 / 29.97 / 25 / 24 / 23.98)
		720p (60 / 59.94 / 50)
		480i (59.94) 576i (50)
Quad Link SDI (Each channel)		2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
		1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
HDMI		1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
		4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
		3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
		1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
		1080i (60 / 59.94 / 50)
		720p (60 / 59.94 / 50)
General
Input voltage		AC 100-240V, 50/60Hz
Power consumption		130W
Working temperature		0°C～+50°C
Working humidity		10%～90%
Storage temperature		-15°C～+60°C
Storage humidity		10%～90%
Dimensions		651.7×433.1×88.8mm
Net weight (w/o stand)		12.55kg
