Stream Live HD All-in-one Multi-channel AV Mixer UC9020

All-in-one design to simplify streaming workflow – Integrates 1080p video capture, video recorder, video switch, streaming encoder, video converter, video splitter, and audio mixer

Professional-quality live streaming to global audiences by any CDN platform , with a low entry threshold, even entry-level users can quickly get started

Intuitive app for preview and program monitoring, change video layout in Full Screen/PBP/PIP settings, adding image and subtitles overlays, and smooth scenes transitions for a professional finish

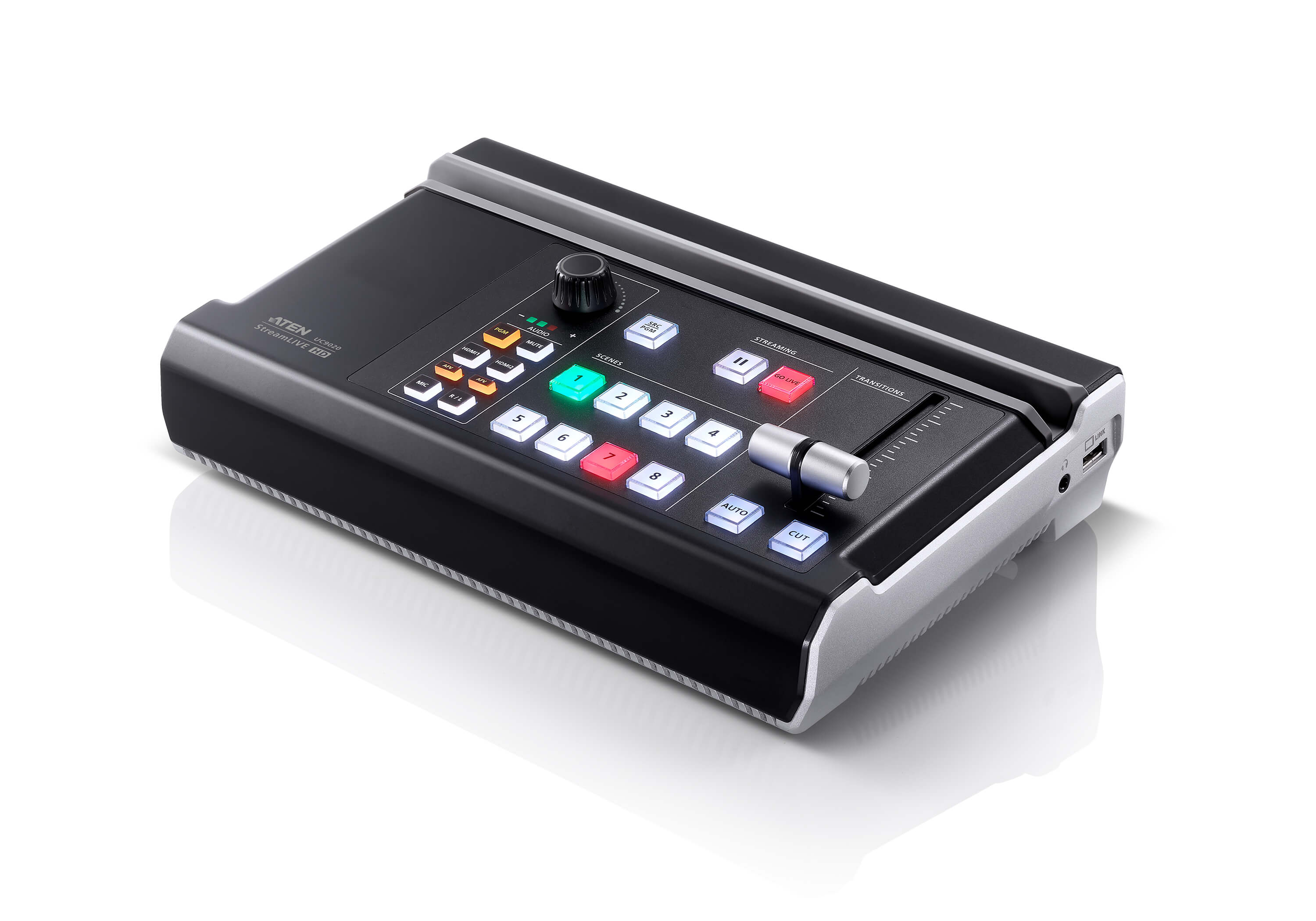

Compact mixer control panel – Switching & mix between multiple video & audio sources with the help of easily identifiable luminous keys





Create a professional, dynamic multi-camera production with the UC9020 StreamLIVE™ HD. It is the simplest, all-in-one TV-quality livestreaming studio that is small in size and big on capability. Everything you need for livestreaming is ready to just plug-n-play. No computer, monitor, or complicated software settings necessary. Capture, stream, and switch between two full HD video inputs over the Internet and instantly take your video production to the next level.

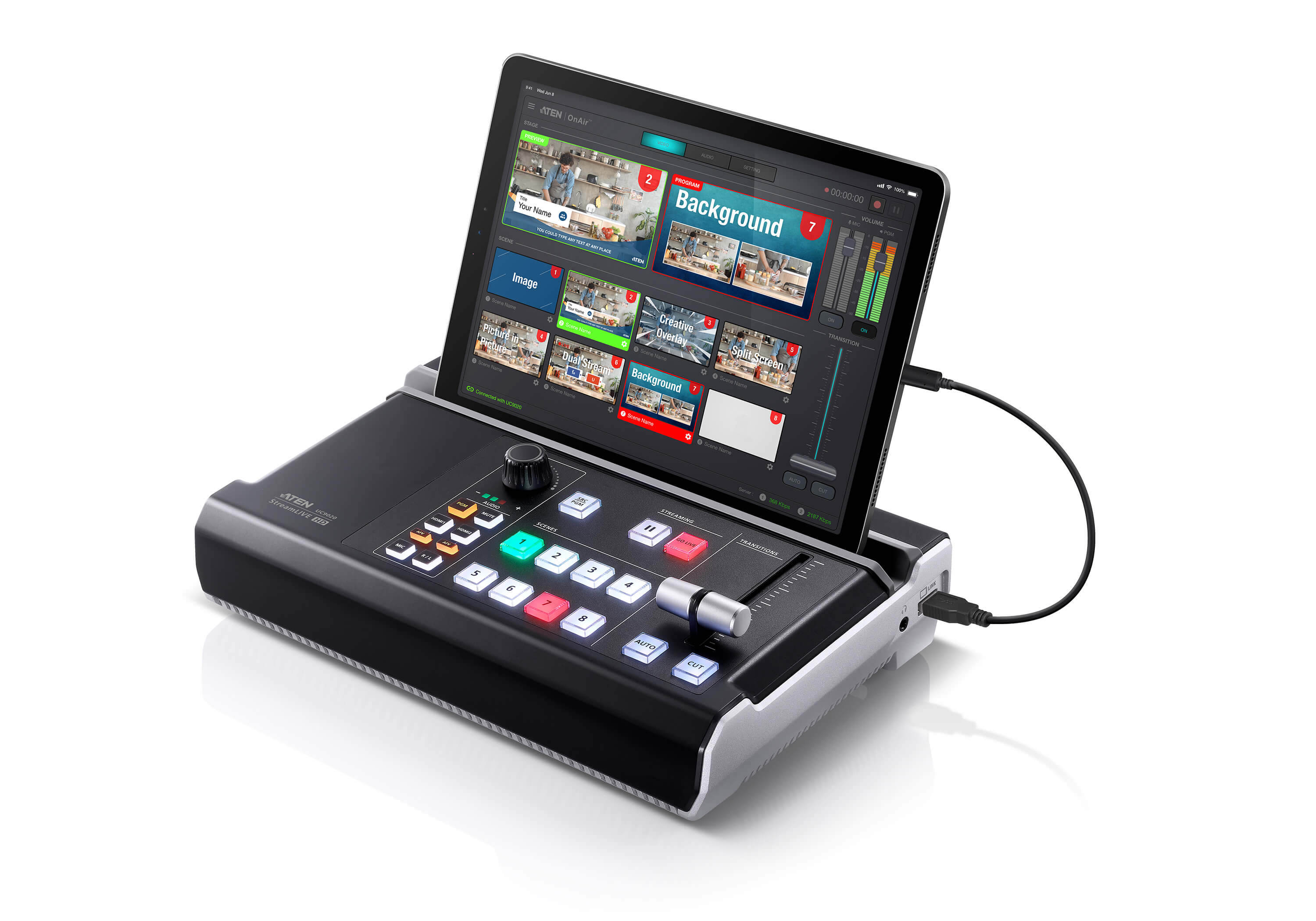

Every inch of StreamLIVE™ HD has been optimized for the easiest operation, including the hardware control panel and the powerful yet sophisticated control APP, that turns your iPad* into a touch interface for controlling, preview monitoring, real-time editing, and arranging multi-elements into program mixing. You can switch and mix video/audio, change settings and effects, and save up to 8 scenes for quick switching.





With the built-in encoder and streaming server, all you need to do is connect to your video sources and network. StreamLIVE™ HD is compatible with every major platform and can livestream to two platforms at the same time virtually anywhere, including Facebook, YouTube, Vimeo, Livestream or any custom RTMP destination, all in high-quality full HD.



Facebook . Youtube . Live Stories . Periscope . Meerkat . YouKnow . Twitter . Vimeo



Your iPad becomes your personal video editing suite. With the ATEN OnAir™ App, you can design and preset up to 8 custom scenes with the intuitive touchscreen interface and custom scene editor. Combine, crop, and scale video to make outstanding PnP layouts. Add transparent png images, backgrounds, and text overlays with professional-looking effects. The scene presets can be exported and shared with your community to other StreamLIVE™ HD systems.



Designed to simplify your video production workflow, StreamLIVE™ HD is not only all-in-one to reduce equipment and cabling that you need to carry for streaming, but also compact in size with extreme portability. It is just so easy to setup and transport. You will be relieved from heavy equipment and complex setups. Use StreamLIVE™ HD whenever you need to stream and it will become your indispensable companion for live video production.



To help you better learn how to use the ATEN UC9020 StreamLIVE™ HD, we've created a series of videos with tips and hands-on footage. Topics include:



1. What is UC9020 StreamLive HD?

2. A brief look at the ATEN UC9020's hardware and software

3. How to use ATEN UC9020 StreamLIVE™ HD with a two-camera setup

4. How to edit scene presets with the UC9020 StreamLIVE HD

5. How to get the stream key for Facebook and YouTube on the ATEN UC9020 StreamLIVE HD

6. Learn how to adjust the settings in the ATEN UC9020 OnAir app

7. Which camera to use with the ATEN UC9020 StreamLIVE HD?



SPECIFICATIONS

Video Input
Interfaces	1 x 4K HDMI Type-A Female (up to 4K@60, no HDCP support) 2 x HDMI Type-A Female (up to 1080p@60, switcher, no HDCP support )
Video Output
Interfaces	1 x 4K Loop-Thru HDMI Type-A Female (up to 4K@60, no HDCP support) 1 x PGM HDMI Type-A Female (up to 1080p@60, no HDCP support)
Video Sampling	4:2:2 8-bit
Color Space	4:2:2 YUV
Video Resolution	////////////////////// Input Resolution ///////////////////////// HDMI1 VGA: 640x480, 480p: 720x480, SVGA: 800x600, XGA: 1024x768, 720p: 1280x720, SXGA: 1280x1024, WXGA+:1440x900, UXGA: 1600x1200 (RB), WUXGA+:1680x1050, 1080p: 1920x1080, 4K UHD: 3840x2160, 4K DCI : 4096x2160 HDMI2 A/B* VGA: 640x480, 480p: 720x480, SVGA: 800x600, XGA: 1024x768, 720p: 1280x720, SXGA: 1280x1024, 1360x768, WXGA+: 1440x900, UXGA: 1600x1200(RB), 1080p: 1920x1080 *Only selected port show video, another one show non-video photo or graph. ///////////////////////// Output Resolution ///////////////////////// SRC/PGM HDMI 480p: 720x480, 576p: 720x576, 720p: 1280x720, 1080p: 1920x1080 HDMI Loop-Through VGA: 640x480, 480p: 720x480, SVGA: 800x600, XGA: 1024x768, 720p: 1280x720, SXGA: 1280x1024, WXGA+:1440x900, UXGA: 1600x1200 (RB), WUXGA+:1680x1050, 1080p: 1920x1080, 4K UHD: 3840x2160, 4K DCI : 4096x2160
Audio Inputs
Interfaces	HDMI captured inputs (stereo) 1 x Mic input, 6.5mm jack (dual mono) 1 x Line input, RCA jack, signal level: -10 dBV
Audio Outputs
Interfaces	HDMI outputs (stereo) 1x Line output, 3.5mm Jack (stereo)
Network Protocol	Multi-Publish to Streaming Server / CDN (RTMP/RTMPS) ------------------------------------------------------- Video Encoding Format: H.264 Bit rate: 512Kbps~10Mbps Color Format: YUV420 Resolution: 1080p30, 720p30, 480p30 ------------------------------------------------------------------- Audio Encoding Format: AAC Sampling Rate: 48kHz Bit rate: 128kbps
Recording Storage	Max. video resolution: 1080p30 File format：MP4 Support media: USB 3.x compatible flash drive or mobile drive (HDD / SSD), at least 32GB of free space
Connection	1x USB 3.1 Gen1 Type-A Female (Blue) 1x USB2.0 Type-A(White) 1x GbE LAN port
Environmental
Operating Temperature	0 - 40 ºC
Storage Temperature	-20 – 60 ºC
Humidity	0 - 80% RH, Non-Condensing
OS Support	• iPad Pro (3rd gen) with iOS 11 or later The following iPad with iOS 11 or later (Additional Apple Lightning USB 3 Adapter is required): • iPad Pro (1st gen) • iPad Pro (1st gen) • iPad Pro (2nd gen) • iPad Pro (2nd gen) • iPad (5th gen or later) • iPad Air (3rd gen or later) • iPad Mini (5th gen or later)
Power
Maximum Input Power Rating	IEC C14, 100-240 Vac (w/250V fuse)
Power Consumption	110V:12.9W:80BTU 220V:12.7W:79BTU
Physical Properties
Housing	Metal
Weight	1.89 kg ( 4.16 lb )
Dimensions (L x W x H)	28.85 x 18.99 x 9.66 cm (11.36 x 7.48 x 3.8 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
