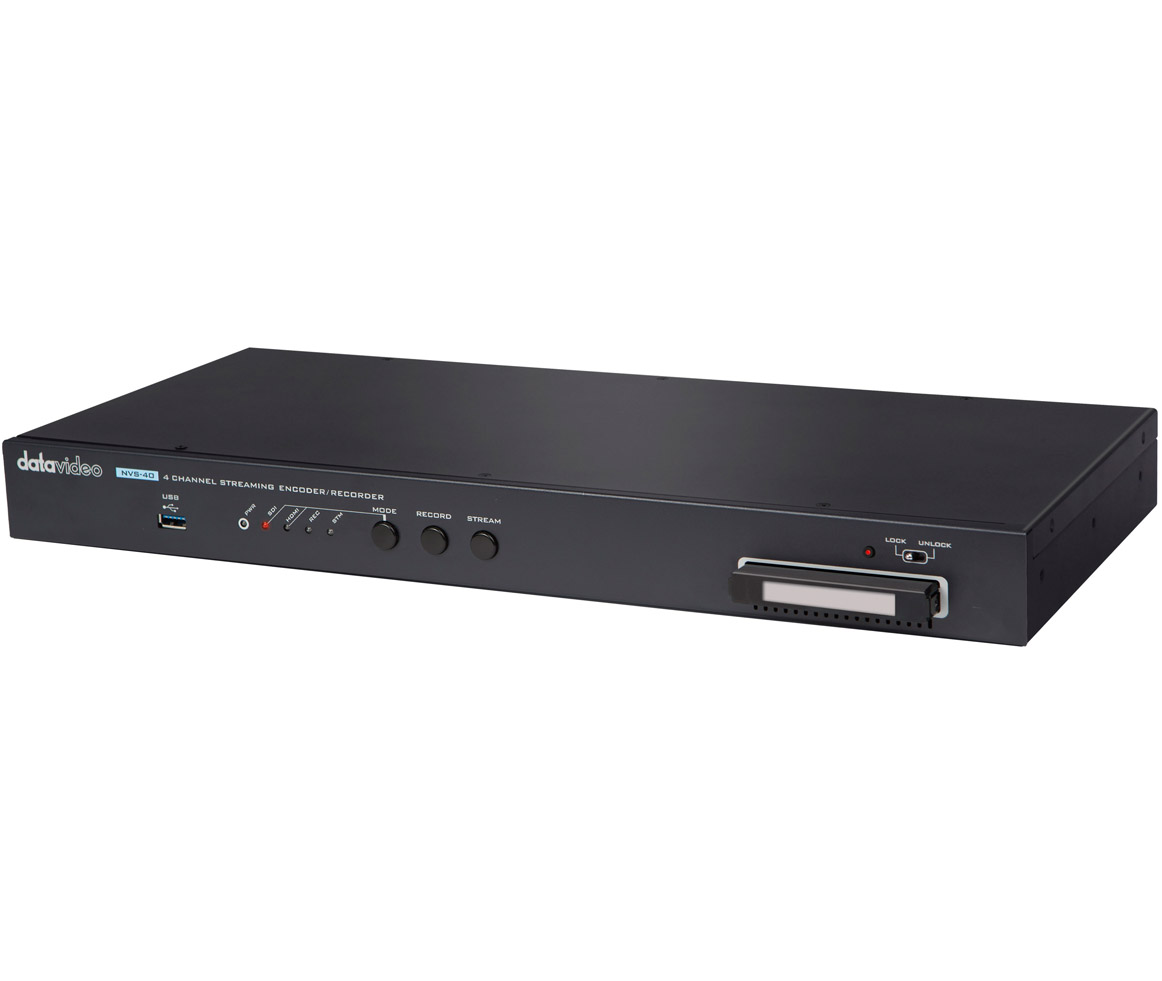

Data Video NVS40 Streaming Switcher 4 Channel Encoder/ Recorder

HDMI x4
(Channel 1 SDI/HDMI selectable)

1080p 60/59.94/50
1080p 30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50

HDMI 1.4x1
SDI loopthrough x1

RCA L/R x1
XLR x2

H.264/AVC High Profile Level 4.1

Each Channel Rec + Stream 30Mbps

CBR/VBR

Stereo/Mono

AAC-LC
Sample rate: 48KHz, 16bit
Configurable bit rate: 128K or 256K or 384K

TS over UDP unicast & multicast
RTSP over HTTP/TCP/UDP
RTMP/RTMPS (Publish)
HLS

MP4, MOV

HDD x1

DC 12V 16W

480 x 180 x 44 mm

2.3kg

0~40 °C

1 x NVS-40 main unit
1 x DC 12V Power Adaptor
1 x Thank You Card
2 x 1U Rack Mount Ear
6 x M4 Screws for Rack Mount Ear
1 x 2.5” Removable HDD/SSD Enclosure
4 x Screws for 2.5 Removable HDD/SSD Enclosure
1 x Blank Label
1 x SATA to USB 3.0 Cable

For a list of verified compatible drives, visit the Drive Compatibility Page
