AVer VC520 USB Video Conferencing Camera

The VC520 Pro is equipped with a 12X optical zoom and daisy-chain speakerphone that deliver a lifelike audiovisual experience. With 1080p HD quality, Sony True WDR, and IP-based management features, the VC520 Pro is the professional conferencing system your enterprise needs.

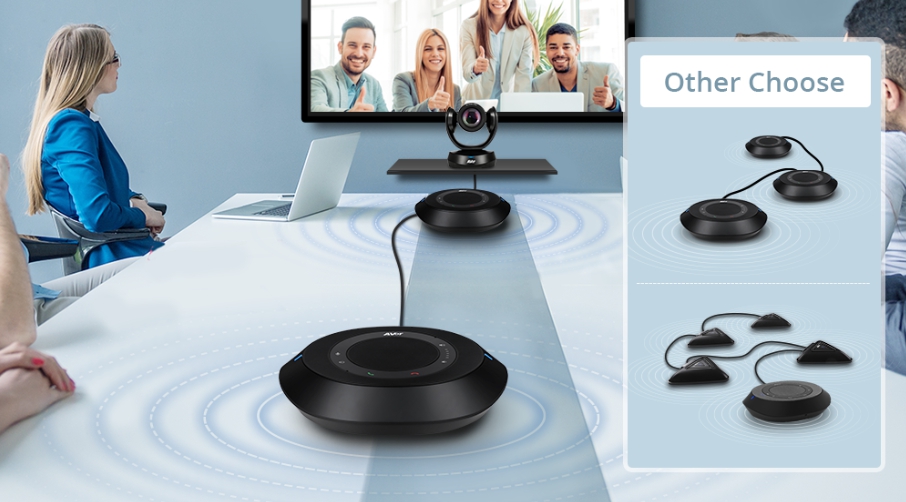

Experience lifelike audio in various sizes of meeting rooms with the VC520 Pro. The speakerphone’s pickup range is up to 15 ft., or you can daisy-chain two additional speakerphones and reach up to 45 ft. Touch controls make it easy to adjust or mute the volume, and echo cancellation ensures a steady audio experience. You can also connect extra microphones for ultra-clear voice pickup.

Improve productivity by starting meetings instantly. The VC520 Pro processes facial recognition to capture everyone on-screen in seconds and automatically re-frames whenever someone walks in or out of the room.

Show every detail precisely and smoothly to enhance communication. The VC520 Pro is embedded with a 12X true optical zoom and multi-coated auto-focus optics to present complex product details in full HD 1080p quality.

Maintain constant clarity in high-contrast backlight environments. The VC520 Pro’s embedded Sony sensor provides True WDR up to 120dB, controling the exposure and light values of pixels in any lighting.

The VC520 Pro features advanced centralized management through the Chrome browser. Remotely control the camera and share on Facebook or YouTube with H.264 and AAC-LC RTSP/RTMP streaming in 1080p at 60fps via USB 3.1.





Sony super-low-light 2M pixel sensor for clear and natural imaging in low-light conditions

Resolution: (16:9) 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x 240, 320 x 180; (4:3) 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 60, 30, 15fps

SmartFrame for automatic FOV adjustment to fit all participants

True WDR up to 120dB: Superb backlight compensation technology for optimizing light balance in high-contrast conditions

Zoom: 18X total zoom (12X optical zoom)

Wide field of view (DFOV): 82°

Lens focal length: 3.9 mm (wide) ~ 47.3 mm (tele)

Lens F#: 1.8 (wide) ~ 2.8 (tele)

Mirror, Flip, AE, white balance: aut o, manual override via PTZApp

Minimum focus distance: 1.5 m

Standard tripod screw holes and Kensington slot



Motorized Pan & Tilt Movement

Pan: ±170°

Tilt: +90° (up) -30° (down)

10 camera presets (through remote control)

Fast and quiet pan & tilt movement

Video Format

YUV, MJPEG, H.264

Network video compression format: H.264

Network protocols: RTSP, RTMP



Full duplex microphone array with echo cancellation

Advanced noise suppression

Dual-microphone array

3.5 mm phone-in jack

3.5 mm line out

Speaker volume: Adjustable to 90dB SPL at 0.5 m

Touch controls for volume down/up, mute, phone input, call, and hang-up

Bridge phone-in and USB into one call

Security: Kensington slot

Audio Format

AAC-LC

Network protocol: RTSP, RTMP



LAN

10/100/1000 Mbps

Connectivity

12V/5A power adaptor

Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain)

USB 3.1 Type-B connector

IP (RJ45)



USB

3.1 Gen 1 Type-B, backward compatible with USB 2.0

UVC (USB video class) 1.1

UAC (USB audio class) 1.0

Control

IR remote control

VISCA/Pelco-P/Pelco-D via RS232 (128 preset points via VISCA command)

Remote side: VISCA over IP, IP (RJ45)

UVC/UAC plug-and-play

WebUI: Browser IP access via Chrome (does not support Internet Explorer)

PTZApp



Camera wall-mount bracket included

Optional foldable TV mount

System Requirements

Windows® 7/10

Mac OS X 10.13 or higher

Google Chromebook version 76.0.3809.102 or later

Android 6 or higher



3.2 GHz Intel® Core™ i5-4460 Processor or higher

4 GB RAM or more

USB 3.1 port, backward compatible with USB 2.0 port

Web page browser requirement

Chrome: version 76.x or above

Firefox: version 69 or above

IE: Not support



AC 100V ~ 240V, 50/60 Hz

Consumption: 12V, 5A

Free Applications for Meeting Collaboration (Windows® and Mac)

EZManager: Camera Central Management software

Remotely group FW/SW upgrades, control the camera, and configure settings

PTZApp

Upgrade firmware automatically or manually

Control camera

Set parameters and adjust camera image

Diagnose operating status

View live video

EZLive

Real-time streaming / annotating / snapshots / video recording



Operation temperature: 0°C ~ 40°C

Operation humidity: 20% ~ 80%

Storage temperature: -20°C ~ 60°C

Storage humidity: 20% ~ 80%

Dimensions

Package dimensions: 259 x 259 x 349 mm

Package weight: 5.4 kg

Camera: 142.7 x 153 x 182 mm/1.45 kg

Speakerphone: 220 x 181.5 x 49.5 mm/0.85 kg

Remote control: 200 x 50 x 21 mm/0.09 kg



VC520 Pro Camera

VC520 Pro Speakerphone

Remote control

Power adapter

Power cord (6 ft/1.8 m)

USB 3.1 Type-B to Type-A cable (10 ft/3 m)

CATE6 speakerphone cable (33 ft/10 m)

3.5 mm aux cable (3 ft/0.9 m)

Quick-start guide

Warranty card

Wall-mount bracket

¼" tripod screw

Optional Accessories

Mini DIN9 to RS232 adapter

Expansion Speakerphone

Expansion Microphone

Foldable TV mount



Camera / Speakerphone: 3+2 years (not available in US, JP, and certainother areas)

Accessories: 1 year

* Please register online to receive a free 2-year warranty extension.

For detailed warranty information, please contact an AVer representative.

Compatible Applications

Zoom, Microsoft® Teams, Skype for Business, Skype, Google Hangouts meet, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect™, Cisco Webex®, Fuze, GoToMeeting™, Microsoft® Lync™, Vidyo, vMix, WebRTC, Wirecast, XSplit
