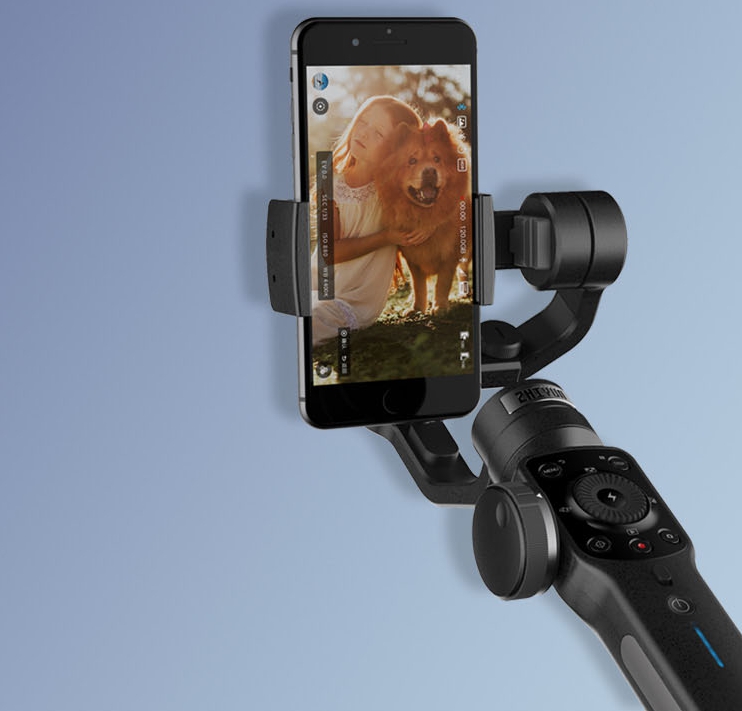

ZHIYUN SMOOOTH 4 FOR MOBILE FILMMAKERS

Zhiyun Smooth 4 turns your mobile phone into a professional filmmaking camera, helping you create stable and smooth footage with just your phone. The design of integrated control panel can reduce the need to touch the screen, and help users control both the stabilizer and mobile camera directly with hot-key buttons. Get one now to create your own Hollywood movies with just phones!



The more professional and delicated handwheel is built in Smooth 4, bringing you the unprecedented experience of smooth operation. You can zoom in or out as you want to take close-up shots.By pressing the FN switch button, the handwheel is configured into a focus puller, helping you achieve high-precision focus changes in real time to create creative shots.

Like a high-end sports car, Smooth 4 can enter PhoneGo mode and release the potential of motors in a flash. It can respond to every delicate movement without delay without the need to worry about losing any shots.What's better is that amazing scene transition can be achieved in your footage without post-processing.



Smooth 4 supports all kinds of advanced shooting techniques. It can realize features such as Timelapse, moving time lapse and Motionlapse, recording lives and displaying the art of time flow.

Smooth 4 can produce smooth footage and also track objects including but not limited to human faces with much higher precision. You can frame the object you want to track on the screen, and the stabilizer can do the rest. Shooting has never been so easy, but now we have Smooth 4!

Smooth 4 can run for 12 hours in a row. The battery indicator tells you how much power is left. The stabilizer can charge your phone directly during shooting. You can shoot video all day long with no need to worry about the battery. It adopts the mainstream Type-C charging port so that users can use both ends of the cable for charging. The stabilizer can be charged by portable power source and the phone can be charged by the stabilizer via USB port on tilt axis. The two-way charging can happen at the same time, guaranteeing the longest operation time possible.

The motor power of Smooth 4 has increased by a large extent, making it compatible to phones of all sizes. In the meantime, it can be used together with many accessories such as LED light and camera lens. Smooth 4 is versatile in different environments, releasing the potential of phone camera anywhere, anytime.



Smooth 4 is designed with a slider on its control panel and a trigger button on its back, to easily recognize and switch between different gimbal modes.



Operation Voltage

Standard： 7.4 v

Output Voltage

Standard： 5 v

Operation Temperature

Max： 45 °C

Standard： 25 °C

Min： -10 °C

Battery Runtime

Standard： 12 h

Laboratory data1

Charging Time

Standard： 3.5 h

Laboratory data2

2000 mA 500 mA

Following Deviation in Motion State：

Following Deviation in Static State：

Tilt Mechanical Range：

Standard： 240 °

Roll Mechanical Range：

Standard： 240 °

Pan axis movement angle range:

Standard： 300 °

Valid Payload：

Max： 210 g

Min： 75 g

Packing List
Stabilizer1
type-C USB Cable 1
User Guide 1
Storage Box 1
TRM03 Tripod 1

Packing

Specifications

Product Dimensions (mm)

123*105*328 (W*D*H)

Packing Size (mm)

374*157*70mm (L*W*H)

Carton Size (mm)

416*356*398 (L*W*H)

Product Net Weight (g)

547 /Units

Product Net Weight (g)

888 /Units

Packing Weight (kg)

11±1 /Box
