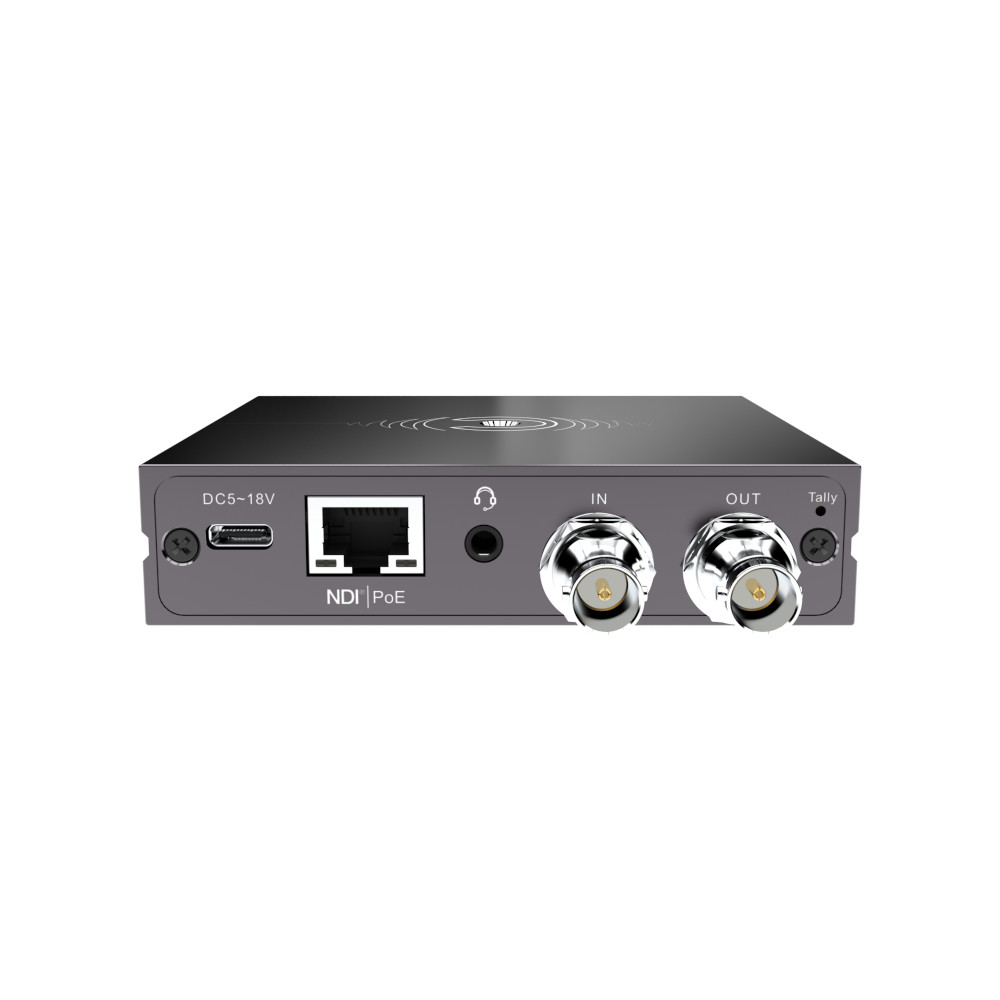

Kiloview N30 12G-SDI/Full NDI Encoder/Decoder

Kiloview N30 for NDI supports up to 12G-SDI video input (Encoder) or 12G-SDI video output (Decoder).



It is small and compact enough to put in your pocket with the overall size of 100*80*28mm. It featured with an 12G-SDI input and 12G-SDI loop for view on the monitor while NDI streaming, or 12G-SDI output while decoding.



A tally system with a big tally light is built-in for indicating which camera is in program or preview. It also has the 3.5mm  audio input/output.



Kiloivew N30 for 12G-SDI has a wide DC input range from 5V to 18V, so it can be easily powered by USB, power bank or camera battery. It can also be powered over Ethernet (PoE).

A threaded screw camera mount is provided for your mounting on a camera. PTZ control is available by USB to Serial adaptor.



● Rack-mounted design to support install on the camera easily

● Plug and play, SDI to NDI®, or NDI® to 12G-SDI to screen

● SDI input/output supported to monitor during NDI streaming





Model	N30
Video input	1 x 12G-SDI
Video output	1 x 12G-SDI
Analog audio	1 x 3.5mm Headphone (out) / Microphone (input)
Network	1 x RJ45 (with PoE), 100/1000Mbps Ethernet
Video formats	Up to UHD 12G-SDI (Downward compatible with SD/HD/VESA and custom resolution)
NDI encoding and decoding	1×NDI® encoding or 1x NDI® decoding
NDI Codec features	YCbCr 4:2:2 HD video encoding typical bitrate 250Mbps@4Kp60 125Mbps@1080p60
LED indicators	Tally, power indicator, connection status indicator
Power supply	DC 5-18V, PoE supported
Voice intercom	Supported (Kiloview software required)
PTZ control	Supported
DHCP	Supported
Management	Web page / IMS remote management
Dimensions	100x80x24mm
Power consumption	DC 12V 1A
Power consumption	6w
Operating temperature	-20℃~45℃
Compatible software	Newtek NDI, OBS, Xsplit, vMix VidBlaster, Wirecast MimoLive, Streamstar
