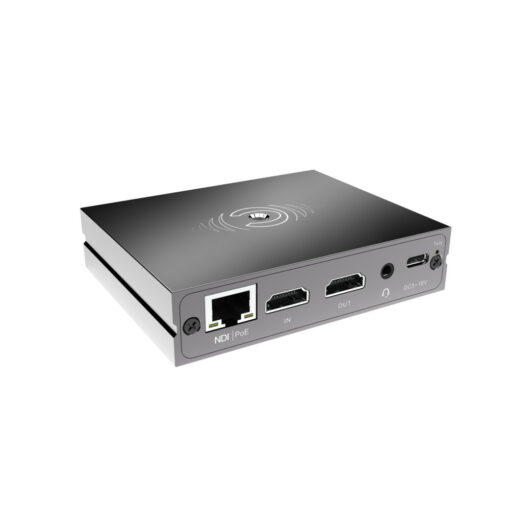

Kiloview N4 1080p60 HDMI/NDI Bi-directional Converter

Kiloview N4 for NDI supports up to 1080p60 video input (Encoder) or 1080p60 video output (Decoder). This converter is small and compact enough to put in your pocket with the overall size of 100*80*24mm. It features an HDMI2.0 input and HDMI2.0 loop through for view on the monitor while NDI streaming, or HDMI 2.0 output while decoding. A tally system with a big tally light is built-in for indicating which camera is in program or preview. It also has the 3.5mm audio input/output which supports intercom



1 x HDMI input, 1 x HDMI loop-through or decoding output;

1x RJ45 + PoE

Threaded screw camera mount

Tally Light

3.5mm Audio Input/Output

Intercom supported

PTZ Control via USB/Ethernet

DC 5V-18V power supply

Compact design

All NewTek NDI enabled encoding or streaming sotware supported;

Newtek NDI, OBS, Xsplit, vMix VidBlaster, Wirecast MimoLive, Streamstar



Model	N4
Video input	1 x HDMI
Video output	1 x HDMI
Analog audio	1 x 3.5mm Headphone (out) / Microphone (input)
Network	1 x RJ45 (with PoE), 100/1000Mbps Ethernet
Video formats	Up to 1080p60 (Downward compatible with SD/HD/VESA and custom resolution)
NDI encoding and decoding	1×NDI® encoding or 1x NDI® decoding
NDI Codec features	YCbCr 4:2:2 HD video encoding typical bitrate 125Mbps@1080p60
LED indicators	Tally, power indicator, connection status indicator
Power supply	DC 5-18V, PoE supported
Voice intercom	Supported (Kiloview software required)
PTZ control	Supported
DHCP	Supported
Management	Web page / IMS remote management
Dimensions	100x80x24mm
Power consumption	DC 12V 1A
Power consumption	6w
Operating temperature	-20℃~45℃
Compatible software	Newtek NDI, OBS, Xsplit, vMix VidBlaster, Wirecast MimoLive, Streamstar
