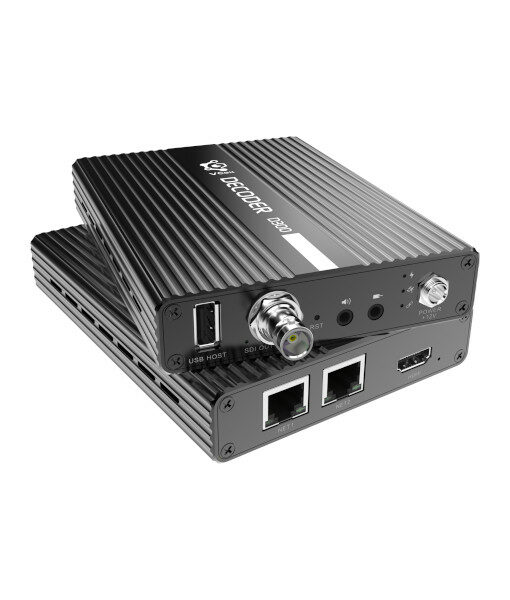

Kiloview D300 IP/SRT to 4K UHD HDMI/SDI Video Decoder

Kiloview D300 IP/SRT to 4K UHD HDMI/SDI Video Decoder
รหัสสินค้า SKU-00736
หมวดหมู่ KILOVIEW (NDI Encoder/Decoder)
ราคา 0.00 บาท
VAT7% กรุณาติดต่อสอบถาม
สถานะสินค้า พร้อมส่ง
ลงสินค้า 23 มิ.ย. 2563
อัพเดทล่าสุด 3 ก.ย. 2566
คงเหลือ ไม่จำกัด
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
Tags : 1080p, 200ms, 3g-sdi, 4K, Decoding, h.264, HD-SDI, IP Camera, Kiloview, Low latecncy, low power consumption, Multicast, rtmp, RTP, RTSP, Splitscreen, UDP, Unicast, Decoders, Kiloview D300, Kiloview D300 ราคา

รายละเอียดสินค้า

จำหน่าย Kiloview D300 IP/SRT to 4K UHD HDMI/SDI Video Decoder
The D300-4K UHD Video decoder is a professional hardware decoding device that can decode multiple video streams without relying on a computer It outputs SDI signal and HDMI signal video, supports 4K UHD resolution, and supports multi-channels video stream split screen to the display wall and dynamic switching.

When you need to decode and split the multi-channel 4K UHD network video stream, even if you need to switch the multi-channel network stream to the wall, you only need to connect the D300 4K UHD decoder to
the network and the large screen interface. Various web videos can be presented in real time on a large screen according to your needs.

Key Features
Support H.265, H.264 decoding,
Support 16 channels 1080p30, or 4 channels 4k HD video simultaneous decoding output.
HDMI and SDI dual interface output, support HDMI (up to 3840×2160@60Hz) and SDI (up to 1920×1080@60Hz) same or different content output
The input supports mainstream network video protocols such as RTMP/SRT/HLS/TS over UDP/RTP/RTSP, and supports protocols such as SIP and VOCP
Less than 200ms decoding delay
Support HDMI/SDI embedded audio output and analog audio output

Specifications
Model D300
Input 2*100M/1000M RJ-45 adaptive Ethernet port
Video output 1*SD/HD/3G-SDI，support up to 1080P 60Hz

1*HDMI 2.0，support up to 3840×2160@60Hz
Output format SDI:

1080P60/59.94/50,1080P30/29.97/25/24/23.98 1080I60/59.94/50 720P60/59.94/50 570I/50

480I/60



HDMI:

4K 3840×2160@60/30、1080p60/50 1080p24/25/30、1080i60/50 720p60/50 Compatible with VESA standard format


Audio output SDI/HDMI embedded or analog line-out output
Media protocol RTMP/SRT/HLS/TS over UDP/RTP/RTSP/ONVIF,etc.
SDI transmission distance



 Belden 1694A cable standard：SD SDI ≥ 350m；HD SDI ≥ 180m；3D SDI ≥ 100m
Video decoding H.265 /H.264
Audio decoding



 AAC/G.711
Decoding delay <200ms
Decoding ability 4K 30Hz: up to 4 channels simultaneously

1080P 50Hz/60Hz: up to 8 channels simultaneously

1080P 30Hz,1080I 50/60Hz or 720P and below: up to 16 channels simultaneously
Split screen display Support 1/2/4/6/8/9/16 self-defined screen splitting
Management WEBinterface
Power supply 12V 1A
Consumption 5w
Operating temperature -20℃~60℃
Dimension 13.8*10.5*2.5cm (5.4*4.1*0.9in)
Weight 380g(13.4oz)
Warranty 1 year
