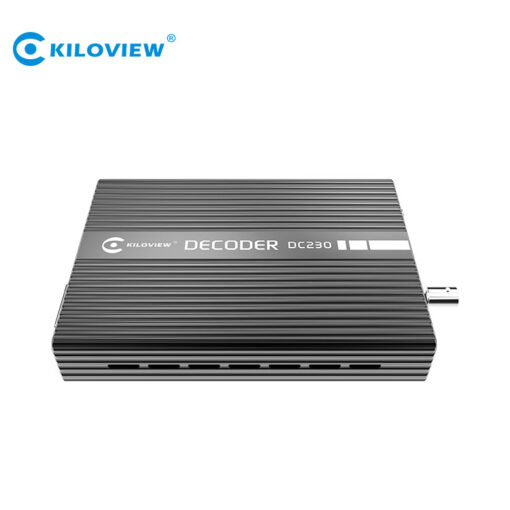

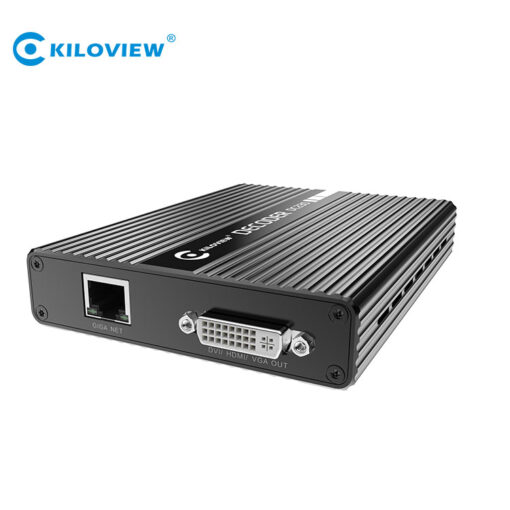

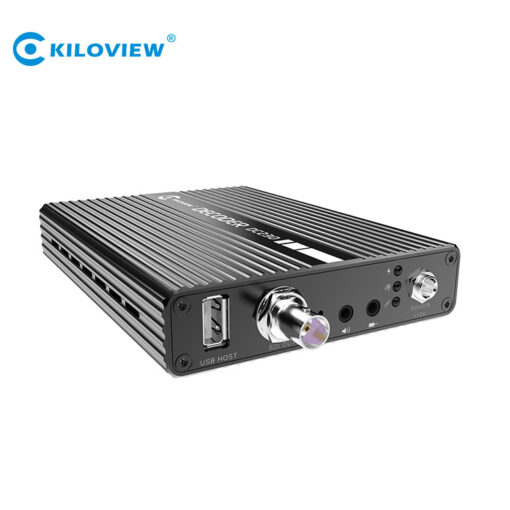

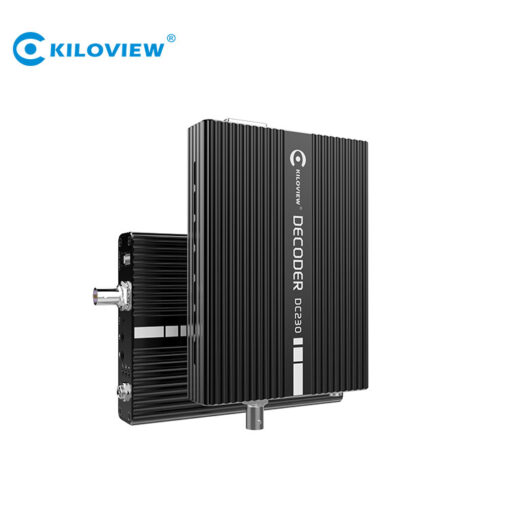

Kiloview DC230 SRT & IP to SDI/HDMI/DVI Video Decoder

The Kiloview KV-DC230 is a network (IP) HD video decoder with high performance. It is able to decode IP-Cameras from network and any streaming device or encoders based on RTSP, RTP unicast or multicast. The KV-DC230 supports up to 3G-SDI and HDMI/VGA/DVI video and audio outputs through self-adaptive decoding. Supported SDI signals are SD-SDI(270M), HD-SDI (1.485G) standard and 3G-SDI (2.97G) at 720p, 1080i and 1080p (maximum 60Hz); HDMI output supporting up to 1080p60Hz HD video signal; VGA supporting maximum UXGA output.



The KV-DC230 can decode simultaneously 2 channels HD video up to 1080p60, with functions of self-adaptive decoding and smart control on network delay. Under typical network environment, it can control decoding delay lower or equal to 200ms.



H.264 video decoding

Up to 2CH 1080p60 (H.264) video decoding simultaneously

Supports SRT/ RTMP/ HLS/ TS over UDP, RTSP / SIP/ VOCP and IP cameras.

Outputs of SDI/ HDMI can be up to 1080p60, 1080p/1080i 59.9

Multi streams decoding

7*24 Working mode

Image scaling/ frame rate conversion





Video output	1*SD/HD/3G SDI，1*DVI-I (compatible with HDMI/DVI and VGA)
Analog audio input	1*3.5mm
Analog audio output	1*3.5mm
Network	1*RJ-45, GbE Connected
USB	1*USB 2.0 Type-A
Power supply	DC 12V, 1A
Output-SDI
Audio output	SDI/HDMI embedded or Analog Line-out output
Output signal types	SD-SDI(270M), HD-SDI(1.485G) and 3G-SDI(2.97G)
SDI transmitting distance	Belden 1694A cable standard: SD SDI ≥ 350m; HD SDI ≥ 180m; 3D SDI ≥ 100m
Supported output formats	1080p60/59.94/50,1080p30/29.97/25/24,1080i59.94/60/50,720p60/50, 480i59.94/60, 576i50, 480i60
Output-HDMI/DVI
Compatible standard	HDMI 1.4/ DVI 1.0
Supported output formats	1080p60/50, 1080p24/25/30, 1080i60/50, 720p60/50, 480p/576p, 480i/576i, and compatible with VESA standard formats.
VGA
Interface	DVI-I (through DVI-I to VGA adaptor)
Supported output formats	1080p, 720p, UXGA(1600×1200), SXGA(1280×1024), XGA(1024×768), SVGA(800×600), VGA(640×480) and other compatible VESA display formats
Decoding
Video decoding	H.264
Audio decoding	AAC-LC / G.711 (aLaw / uLaw)
Video bitrate range	128Kbps ~ 40 Mbps
Audio birate range	AAC: 8Kbps ~ 320Kbps G.711: 64Kbps
Decoding delay	≤200ms
Transmission
Media transmission protocols	SRT/RTP/RTSP (compatible RTP over TCP transmission mode), RTP unicast/multicast, RTMP
Controlling transmission protocols	TCP
Network management protocols	HTTP
Management
Management interface	Web
Remote management	support
Firmware upgrading	support
Operation environment
Operation Temperature	-68℉~140℉/ -20℃~60℃
Relative Humidity	20 ~90%RH (non-condensation)
Power dissipation	≤5W
Dimensions
Size	5.5 x 4.1 x1.06″/ 140 x 105 x 27 mm
Weight	13oz / 370g
