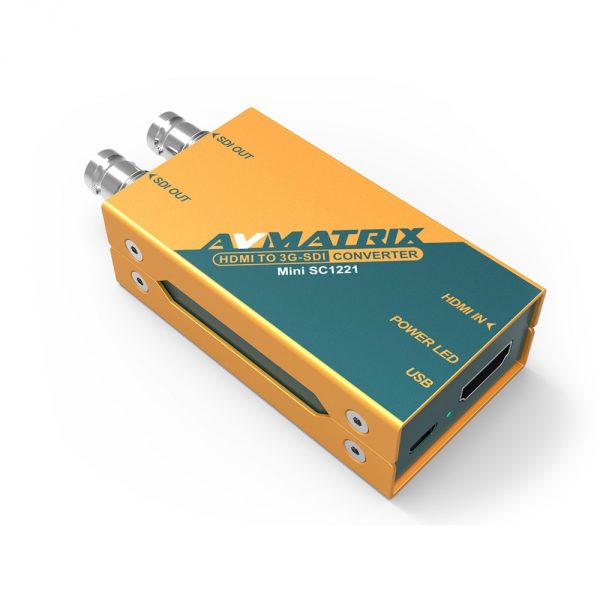

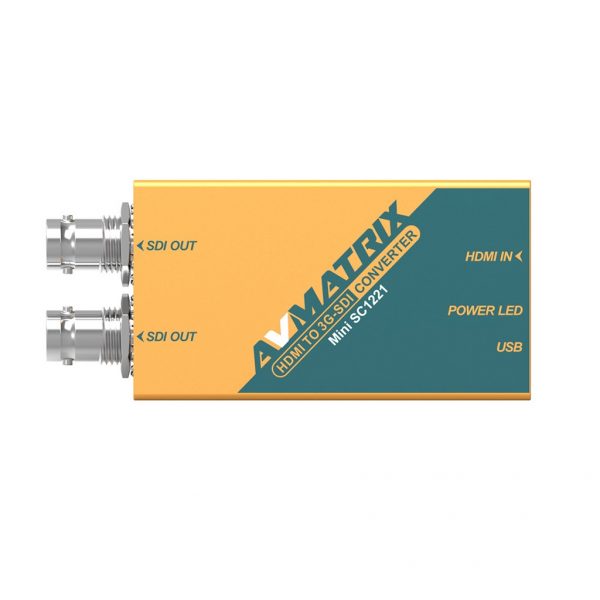

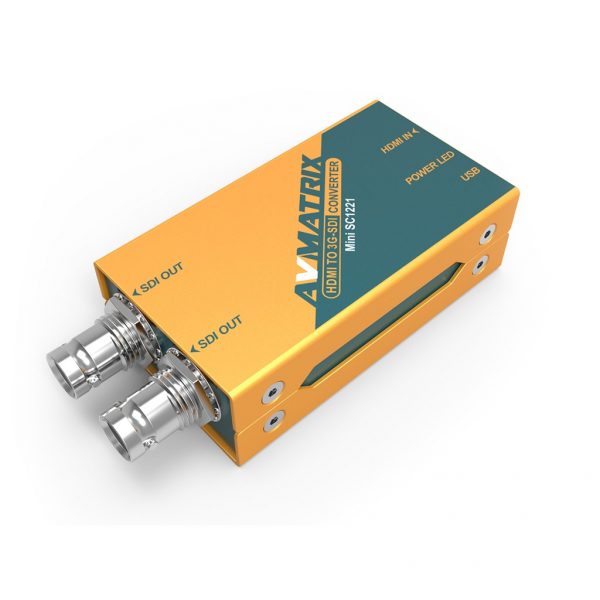

AVMatrix Mini SC1221 HDMI to Dual 3G-SDI Pocket-Size Broadcast Converter

AVMatrix Mini SC1221 HDMI to Dual 3G-SDI Pocket-Size Broadcast Converter
AVMatrix Mini SC1221 HDMI to Dual 3G-SDI Pocket-Size Broadcast ConverterAVMatrix Mini SC1221 HDMI to Dual 3G-SDI Pocket-Size Broadcast ConverterAVMatrix Mini SC1221 HDMI to Dual 3G-SDI Pocket-Size Broadcast ConverterAVMatrix Mini SC1221 HDMI to Dual 3G-SDI Pocket-Size Broadcast ConverterAVMatrix Mini SC1221 HDMI to Dual 3G-SDI Pocket-Size Broadcast Converter
รหัสสินค้า SKU-00747
หมวดหมู่ AV Matrix
ราคา 3,100.00 บาท
VAT7% กรุณาติดต่อสอบถาม
สถานะสินค้า พร้อมส่ง
ลงสินค้า 1 ก.ค. 2563
อัพเดทล่าสุด 31 ส.ค. 2566
คงเหลือ ไม่จำกัด
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
Tags : 3G/HD/SD-SDI Outputs, 3G-SDI Quad Split Multiviewer, AVMatrix, Micro-USB Port for Power, MV0430, Quad, AVMatrix Mini SC1221, AVMatrix Mini SC1221 ราคา, Mini SC1221, Broadcast Converter

รายละเอียดสินค้า

จำหน่าย AVMatrix Mini SC1221 HDMI to Dual 3G-SDI Pocket-Size Broadcast Converter

DESCRIPTION
Mini SC1221 HDMI to Dual 3G-SDI Pocket-Size Broadcast Converter

Product Highlights

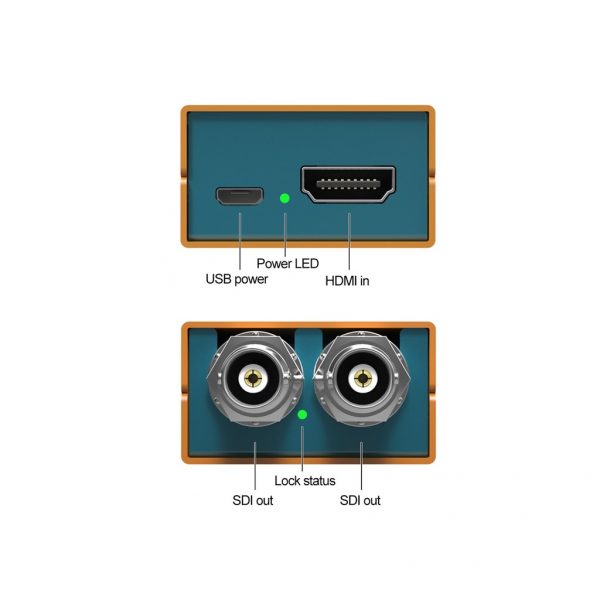

HDMI Type-A Input
Two 3G/HD/SD-SDI Outputs
Supports up to 1080p60 Resolution
Works 24/7 without Lag/Delay
Micro-USB Port for Power
AC Power Adapter Included
Can Be Connected to Power Banks, Etc.
LED Power Indicator
Mounting Bracket Included


AV Matrix SC1221 specs

Input 1 x HDMI type-A
Output 2 x 3G/HD/SD-SDI
HDMI Format Support 1080p at 50/59.94/60 fps
1080p at 23.98/24/25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 24/25/30/59.94/60 fps
576i at 50 fps
480i at 60 fps
HDMI Color Space RGB 4:4:4, YUV 4:4:4, YUV 4:2:2
SDI Format Support 1080p at 50/59.94/60 fps
1080psf at 23.98/24/25/29.97/30 fps
1080p at 23.98/24/25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 24/25/30/50/59.94/60 fps
625i at 50 fps
525i at 59.94 fps
SDI Compliance SMPTE 292M/SMPTE 259M/SMPTE 424M
SDI Color Space YUV 4:2:2
Power Port 1 x micro-USB
Power Consumption 2 W
Voltage Range 3.3 – 5 V
Operating Temperature -4 to 140°F (-20 to 60°C)
Storage Temperature -22 to 158°F (-30 to 70°C)
Relative Humidity 0 to 90% non-condensing
Dimensions 2.9 x 1.6 x 0.9″ (7.4 x 4.1 x 2.3 cm)
PACKAGING INFO
Package Weight 0.8 lb
Box Dimensions (LxWxH) 4.7 x 3.3 x 3.1″
