AV Matrix MMV1630 16-Channel 3G-SDI Multiviewer and Switcher (1 RU)

MMV1630 AV Matrix 16-Channel 3G-SDI Multiviewer and Switcher (1 RU)



2-in-1 Device

16 x 3G-SDI Inputs

16 x 3G-SDI Loop Outputs

2 x SDI & 1 x HDMI Outputs

Supports SD, HD, and 3G-SDI

20 Standard Layouts

Nine Selectable Formats up to 1080p

Time Code and UMD Overlays

Signal Status and Audio Meter Overlays

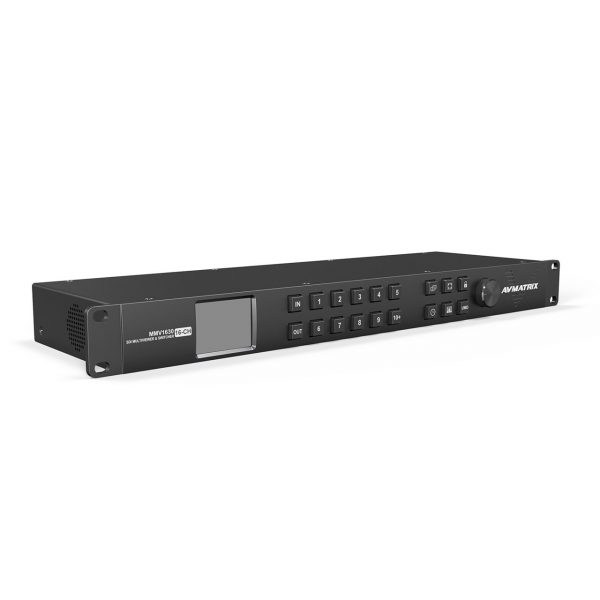

1 RU 16-Channel 3G-SDI Multiviewer and Switcher from AV Matrix features two modes in one device. Mode 1 acts as a 16-channel multiviewer, with 16 independent 3G-SDI inputs. The video format of multiview outputs can be selected from nine formats from 720p to 1080p and include 20 standard layouts. The signals are viewed simultaneously on one display and each window is completely independent with overlays such as signal status, audio meter, UMD, and time code.



Mode 2 turns this device into a 16 x 16 SDI matrix switcher, compatible with multiple format signal inputs in different resolutions and frame rates with audio detection. The MMV1630 can be controlled using the buttons, knob, and LCD screen on the front panel, or with a PC software via Ethernet. A compact 1 RU design makes it suitable for any live broadcast or post production such as OB vans, broadcast control rooms, and studios.



16 X 3G-SDI AUTO-DETECTED INPUTS WITH LOOP OUTPUTS

2 X 3G-SDI AND 1 X HDMI MULTIVIEW SCALING OUTPUTS WITH AUDIO

FULL SCREEN AND 20 PRESET LAYOUTS WITH CLOCK DISPLAY

DUAL POWER DESIGN, REDUNDANT POWER

AV Matrix MMV1630 specs

MULTI-VIEW MONITORING
Inputs	16 x SD/HD/3G-SDI
Loop Outputs	16 x SD/HD/3G-SDI
Outputs	2 x SDI 1 x HDMI
Resolution	SDI Input: 1920 x 1080p at 60/59.94/50/30/29.97/25/24/23.98 Hz 1920 x 1080PsF at 30/29.97/25/24/23.98 Hz 1920 x 1080i at 60/59.94/50 Hz 1280 x 720p at 60/59.94/50/30/29.97/25/24/23.98 Hz 625i 50 PAL 525i 59.94 NTSCSDI/HDMI Output: 1080p at 60/50/30/25/24 Hz 1080i at 60/50 Hz 720p at 60/50 Hz
SDI Auto Switching	Auto Selects SD, HD, and 3G-SDI on Input
SDI Video Rates	SD/HD/3G-SDI
SDI Compliance	SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M
Color Space	YUV 4:2:2, YUV 4:4:4, RGB 4:4:4 (SDI Input) YUV 4:2:2 (Multiview HDMI/SDI Output)

SWITCHER
Inputs	16 x SD/HD/3G-SDI/DVB-ASI
Outputs	16 x SD/HD/3G-SDI/DVB-ASI
SDI Format Support	2048 x 1080p at 30/29.97/25/24/23.98 Hz 2048 x 1080PsF at 30/29.97/25/24/23.98 Hz 1920 x 1080p at 60/59.94/50/30/29.97/25/24/23.98 Hz 1920 x 1080PsF at 30/29.97/25/24/23.98 Hz 1920 x 1080i at 60/59.94/50 Hz 1280 x 720p at 60/59.94/50/30/29.97/25/24/23.98 Hz 625i 50 PAL 525i 59.94 NTSC
SDI Auto Switching	Auto Selects SD, HD, and 3G-SDI on Input
SDI Video Rates	SD/HD/3G-SDI
SDI Compliance	SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 352M, SMPTE 372M, SMPTE 424M, SMPTE 425M, DVB-ASI
Color Space	YUV 4:2:2, YUV 4:4:4, RGB 4:4:4, XYZ 4:4:4

GENERAL
Controls	Front Panel Buttons and Knob
Connectors	LAN (Software and Update) RS-422 (Reserve)
Display	2.2″ / 5.6 cm LCD Screen
Voltage	12 to 20 VDC
Power Supply	PS-1, PS-2, Power Redundancy
Power Consumption	36 W
Operating Temperature	32 to 140°F / 0 to 60°C
Storage Temperature	-22 to 158°F / -30 to 70°C
Humidity	0 to 90%
Rack Size	1 RU
Dimensions	19.0 x 1.7 x 5.9″ / 48.3 x 4.4 x 14.9 cm
Weight	4.4 lb / 2 kg
