Saramonic SmartRig UC Audio Mixer with Phantom Power Preamp & Guitar Interface for Type-C devices

General Introduction

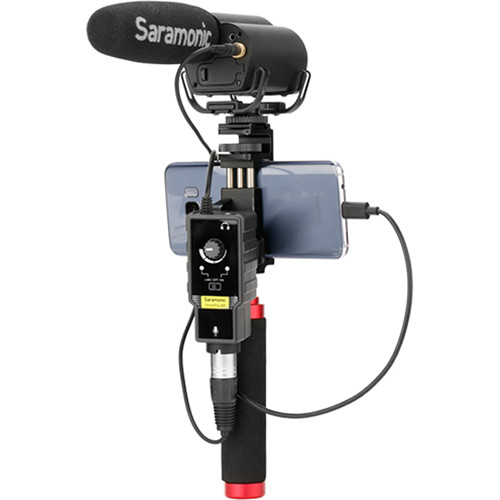

The Saramonic SmartRig UC with USB Type-C interface is an easy solution to connect any professional microphones

or guitars to record quality audio or create music with your USB Type-C devices.

Simply plug the microphone into the XLR connector or plug the guitar into the 6.35mm connector of the

SmartRig UC, and connect it to your devices with the USB Type-C output cable.

The provided gain control thumbwheel makes it easy to set precise levels. Processed sound can be monitored through a 3.5mm headphone out.

...

Specification

• Combo 1/4" (6.35mm) and XLR input

• USB Type-C output connector

• Powered by one 9V battery

• +48V phantom power

• 3.5mm headphone output for monitoring (need APP)

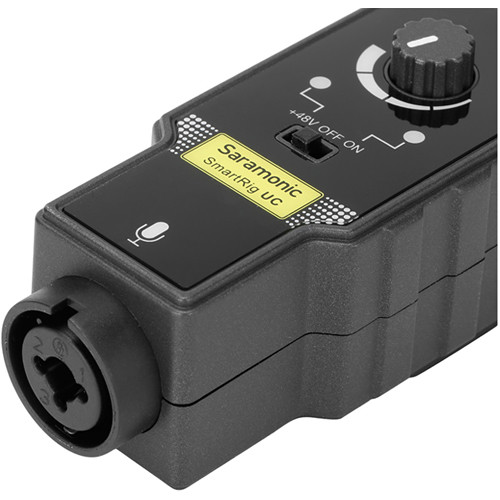

• +48V/OFF/ON switch

• Gain control

...

Specifications

Frequency Response :20Hz to 20kHz , +/- 0.5dBu

Dimensions:L 88 x W 41 x H 42 mm

Weight:75g ( 2.57oz. )

Gain:23dBu to -

SNR:80dBu @1kHz, -30dBu input

THD:less than 0.01%@1kHz, -30dBu input

Sample Rate:44.1kHz or 48kHz

Output:USB Type-C connector
