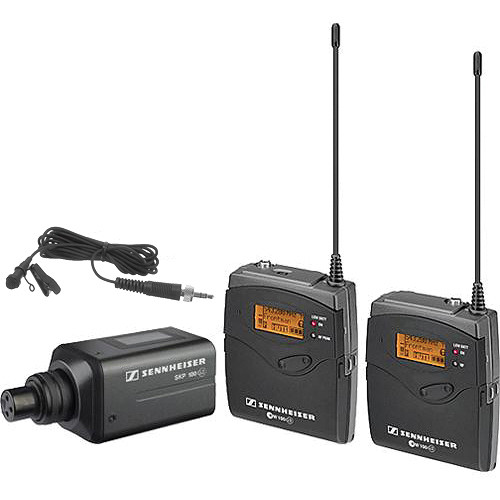

Sennheiser ew 100 ENG G3 Wireless Microphone Combo System

System

Type of System

Camera Mount Lavalier HDX Wideband FM

RF Carrier Frequency Range

A (516-558 MHz)
10 + 1 user bank, 12 presets per bank

Approx. Working Range

Maximum 490'

Overall Frequency Response

40 Hz - 18 kHz

Signal-to-Noise Ratio

Greater than 110 dB

# Of Channels

1680

RF Output Power

30 mW

Diversity Circuitry

Adaptive Antenna Diversity

Squelch

Off / Low / Medium / High

Receiver

Type of Receiver

EK 100 G3 Bodypack/Camera Mount Receiver

Type of Outputs

1/8" Mini-Jack

Headphone Monitoring

None, (Monitor Audio VIA your Camcorder's Audio Output)

Battery Type/Approx. Life

2x AA Batteries, 8 - 10 hours

Display

Backlit LCD Display

Mounting Options

Camera / Belt

Antenna Type

Single Flexible Antenna (M3 Type)

Closed Dimensions (WxHxD)

3.23 x 2.52 x 0.94" (82 x 64 x 24 mm)

Weight

5.5 oz (156 g)

Transmitter

Type of Transmitter

SK 100 G3 Bodypack Transmitter

Type of Input Connector

Unbalanced Locking 1/8" (3.5 mm), Mic/Line

Type of Microphone

ME 2 Lavalier Microphone

Polar Pattern

Omnidirectional

Interchangeable Mic Heads

Yes, User Has the Option of using Other Sennheiser Evolution Series Lavaliers

Battery Type/Approx. Life

2x AA Batteries
Life: 8 - 10 hours

Mute Switch

Yes

Level Control

Yes, Variable Microphone Input Level

Antenna Type

M3 Type

Display

Backlit LCD Display

Dimensions (WxHxD)

3.22 x 2.51 x 0.86" (82 x 64 x 22 mm)

Weight

5.64 oz (160 g)

Transmitter

Type of Transmitter

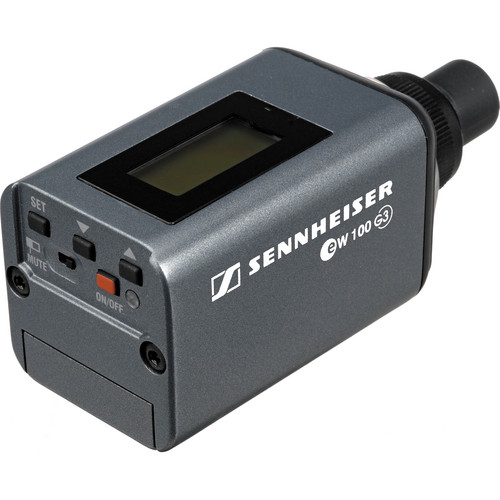

SKP 100 G3 Plug-on Transmitter

Type of Input Connector

XLR Female

Interchangeable Mic Heads

Any Dynamic Microphone with 3-pin XLR male Output

Battery Type/Approx. Life

2x AA Batteries
Life: 8 - 10 hours

Mute Switch

Yes

Level Control

Yes, Variable Microphone Input Level

Antenna Type

Utilizes Microphone Body as Antenna

Display

LCD Display: Channel, Low Battery Warning

Dimensions

4.13 x 1.69 x 1.69" (105 x 43 x 43 mm)

Weight

6.88 oz (195 g)
